Name: UNI-T UTi722M Smartphone Thermal Camera Module for Android
SKU: UTi722M
Availability: InStock

UNI-T UTi722M Smartphone Thermal Camera Module for Android

13,000 EGP

The UNI-T UTi722M is a compact handheld thermal imaging camera designed for fast, accurate temperature detection in electrical, mechanical, and building inspections. Featuring clear infrared imaging, wide temperature measurement range, and real-time hotspot tracking, it helps technicians quickly locate overheating components, energy loss, and hidden faults. Lightweight, easy to use, and reliable, the UTi722M thermal camera is ideal for preventive maintenance, troubleshooting, and professional thermal diagnostics.

Description

The UNI-T UTi722M Smartphone Thermal Camera Module for Android is a compact and versatile accessory designed to enhance your smartphone’s capabilities by providing thermal imaging functionality. This module easily connects to compatible Android devices, allowing users to capture and analyze thermal images with ease. Ideal for a variety of applications, from home inspections to outdoor adventures, the UTi722M enables you to visualize temperature differences and identify potential issues in real-time. Its user-friendly interface and lightweight design make it a practical tool for both professionals and hobbyists seeking to expand their smartphone’s utility.

UNI-T UTi722M Smartphone Thermal Camera Module for Android

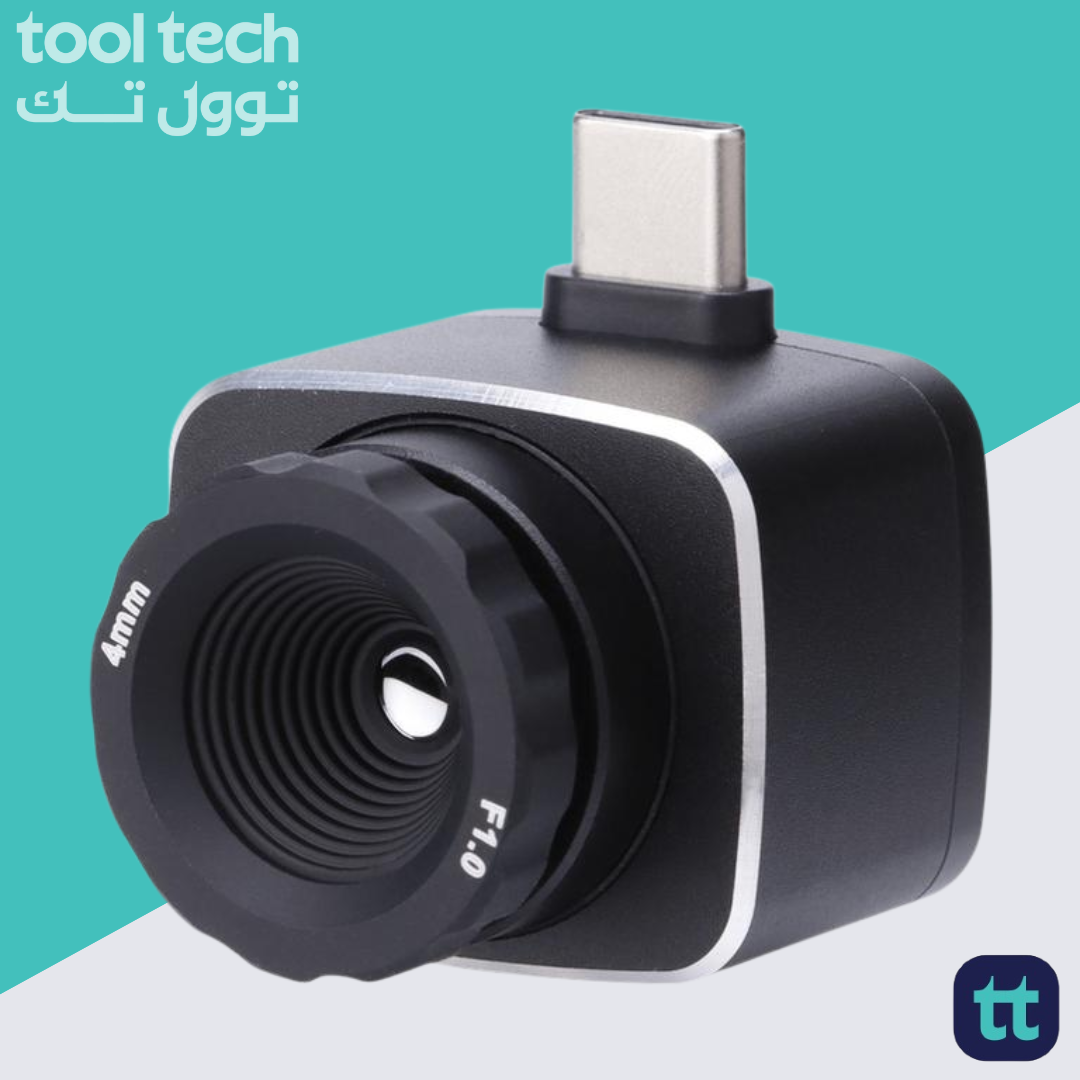

UTi722M transforms your smartphone into a thermal camera instantly. Its most prominent bright feature is the 4.0mm adjustable lens, which meets your needs of measuring the targets near or far. Plug & play with the user-friendly mobile APP “Thermal Mobile”, the practical functions comparable to professional thermal cameras. UTi722M is a desirable tool for HVAC, home life and adventure travel. lovers, engineers, contractors and builders, etc.

Features

Portable & convenient
Manual focus
Plug & play with “Thermal Mobile” mobile APP
IR resolution: 256×192 pixels
On screen analyzer
Temperature alarm
Video recording

Specifications

Technical Data
IR resolution(Pixels)	256×192
Pixel size	12µm
Frame rate	≤25Hz
Thermal sensitivity(NETD)	≤50mK @25℃
Focus	Manual Focus
Lens size	21.5mm
Lens focal length	4.0mm
Field of view(FOV)	44.92°(H) × 33.42°(V)
Measurement modes	Industry & EST screening
Temperature measurement range	-20℃~450℃
Accuracy	Industry: ±2℃ or ±2% whichever is greater (0℃~450℃) EST: ±0.5℃ (30℃~40℃)
Functions
Color palettes	Ironbow, White Hot, Black Hot, Red Hot, Lava, Rainbow, Rainbow HC
On screen analyzer	3 Points/3 Lines/3 Rectangles
Isotherm	Auto/Below/Above/Section/Manual
Hi/Lo temperature alarm	LCD animation & Buzzer
Hi/Lo temperature tracking	√
Video recording	√
General Characteristics
USB	Type-C
Image storage format	JPEG
Video storage format	MP4
Certificates	CE, UKCA, FCC, RoHS
Languages	ZH, EN, FR, DE, IT, ES, SV
Weight	Approx. 30g
Dimension	29.5mm×24.5mm×29.5mm

Applications

Industrial inspection.
Electrical inspection.
HVAC & building inspection.
Moisture leakage detection.
EST (body screening / elevated skin temperature) screening.
Outdoor & night vision.
Insulation inspection.

Package Contents:

1x Type-C extension cable
1x Hand strap (wrist strap)
1x Cleaning cloth / fabric bag
1x English (or multilingual) user manual / operation guide
1x (Gift box / packaging) standard individual packing

Documents

UTi722M_User-Manual_EN

UTi722M-Data-Sheet
