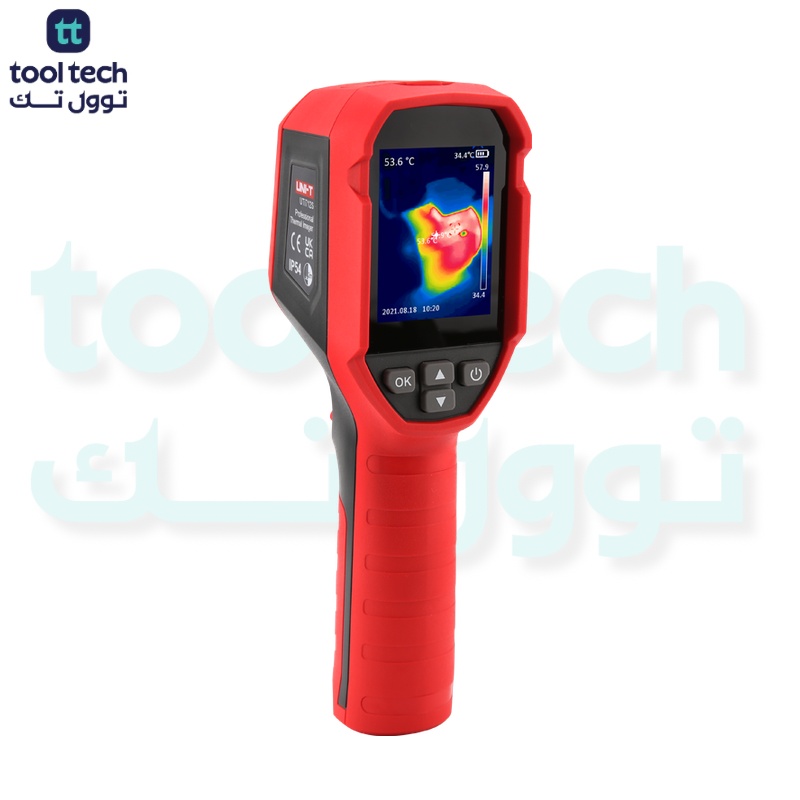

Name: UTi712S Cost-effective Thermal Camera
SKU: UTI712S
Availability: InStock

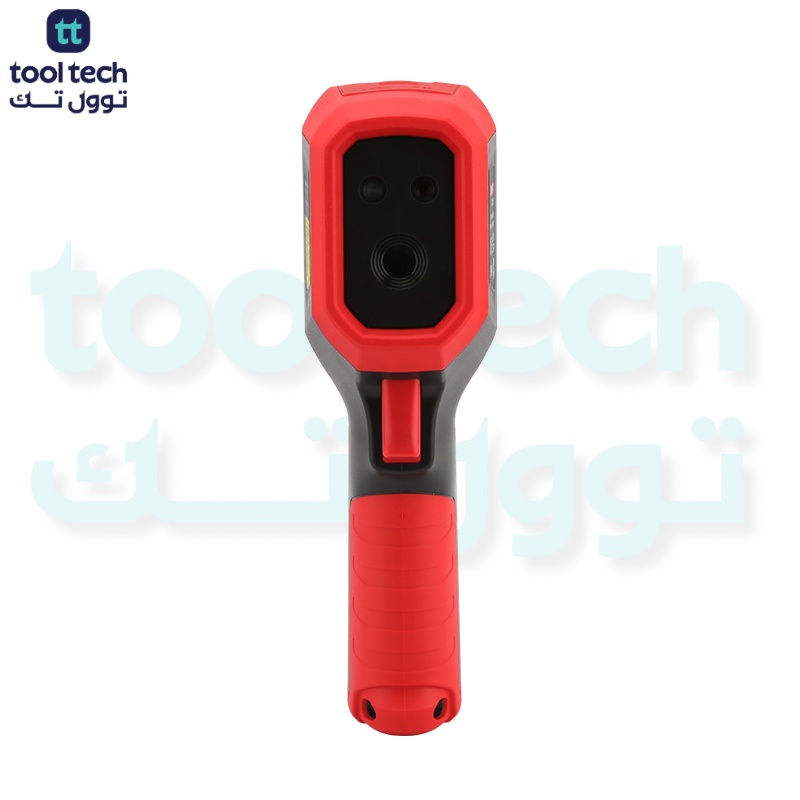

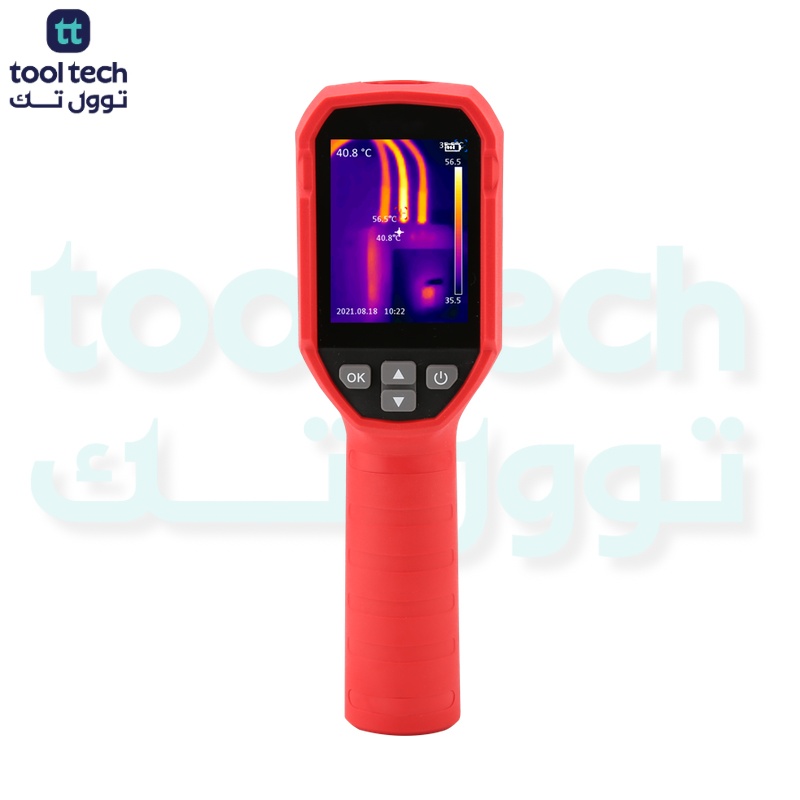

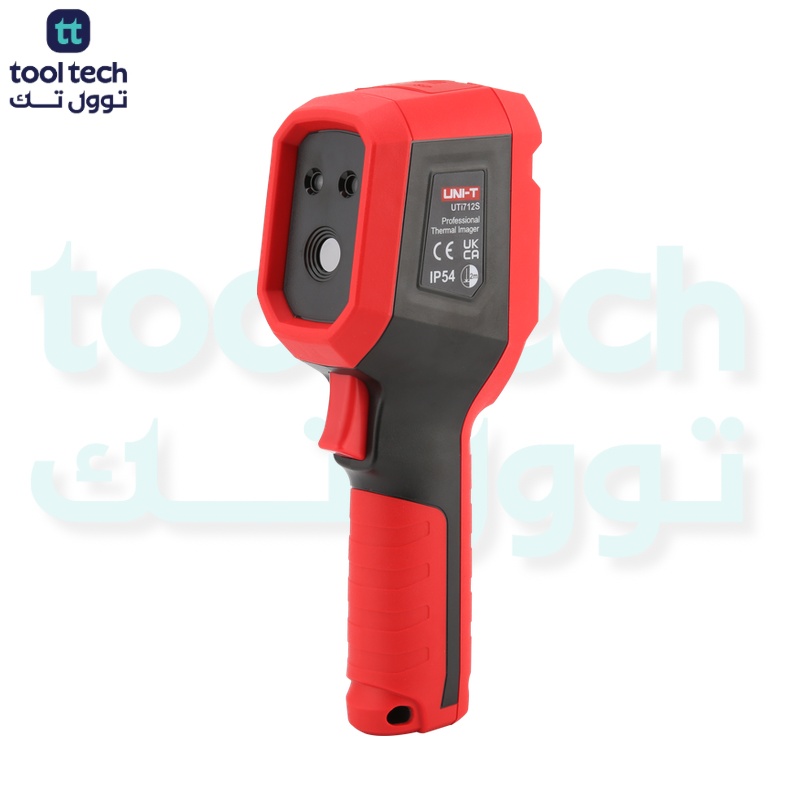

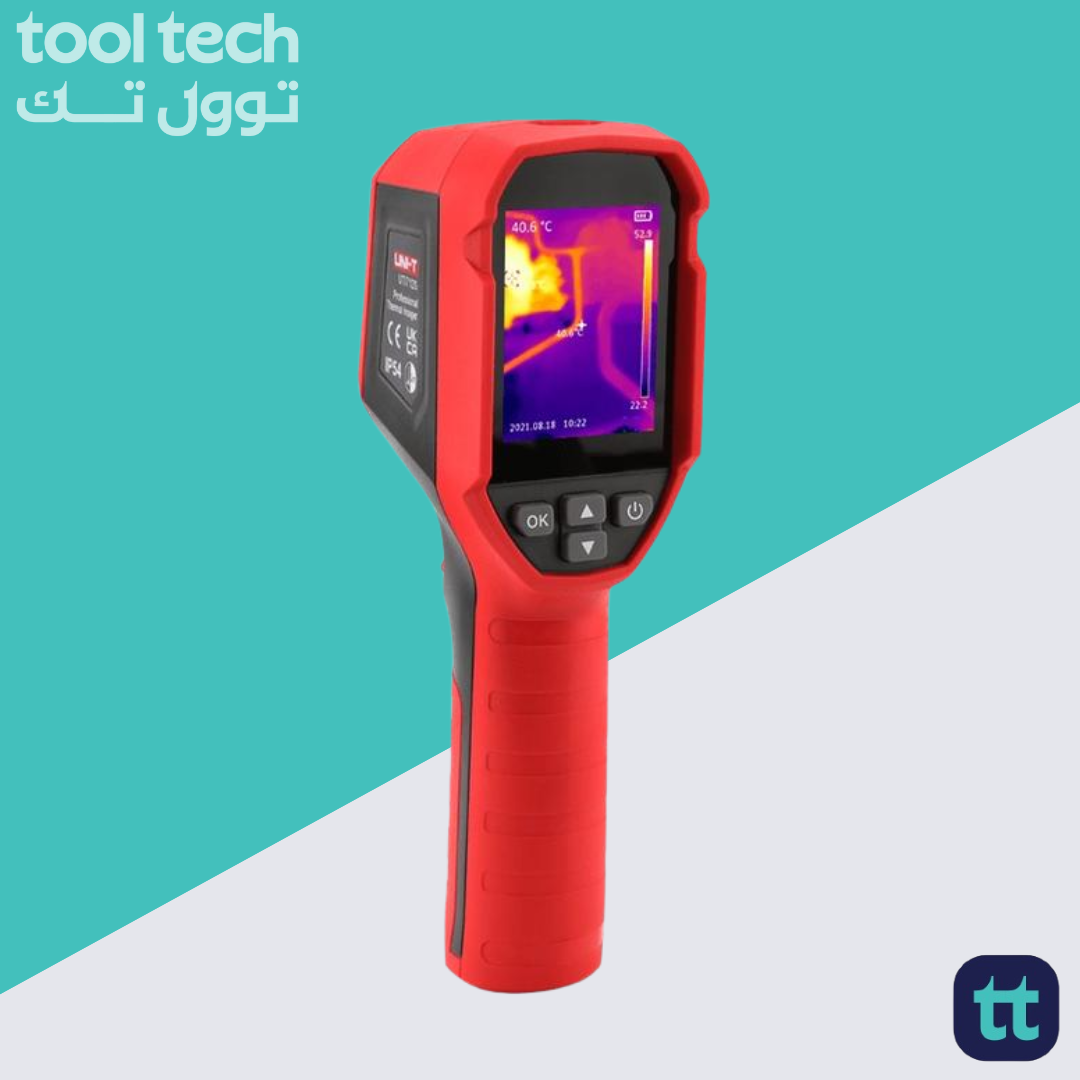

UTi712S Cost-effective Thermal Camera

8,200 EGP

The UNI-T UTi712S is a high-performance handheld thermal imaging camera designed for fast, accurate fault detection. Featuring a high-resolution infrared sensor, wide temperature measurement range, and a clear LCD display, it helps professionals quickly identify overheating components, electrical issues, and insulation problems. Ideal for electrical inspection, maintenance, HVAC diagnostics, and industrial troubleshooting, the UTi712S delivers reliable thermal analysis, easy operation, and durable performance—making it a smart choice for technicians who need precision and efficiency on the job.

Description

The UTi712S Cost-effective Thermal Camera is designed for users seeking an affordable yet reliable solution for thermal imaging applications. With its user-friendly interface and compact design, this camera provides clear thermal images that help identify temperature variations in various environments, making it suitable for home inspections, electrical troubleshooting, and HVAC maintenance. Its lightweight construction ensures portability, while the intuitive controls facilitate easy operation, allowing both professionals and DIY enthusiasts to effectively monitor heat patterns and detect potential issues with ease.

Overview

The UNI-T UTI712S is a cost-effective thermal camera designed for fast and accurate
temperature measurement. It is suitable for electrical inspection, preventive
maintenance, and troubleshooting applications.

The device provides clear thermal imaging, quick temperature response, and a
compact design that makes it practical for both field and industrial use.

Features

• 2.4 inch TFT color display (320 × 240 pixels)
• Infrared thermal resolution: 120 × 90
• Temperature measurement range: -20°C to 400°C (-4°F to 752°F)
• Automatic high and low temperature alarm
• Hot spot and cold spot automatic tracking
• Built-in image capture function
• 6 selectable color palettes (White Hot, Black Hot, Ironbow, Rainbow HC, Rainbow, Lava)
• Audible buzzer alarm
• Integrated laser pointer for target positioning
• Built-in LED flashlight for low-light environments
• PC software support for image analysis
• Rechargeable Li-ion battery

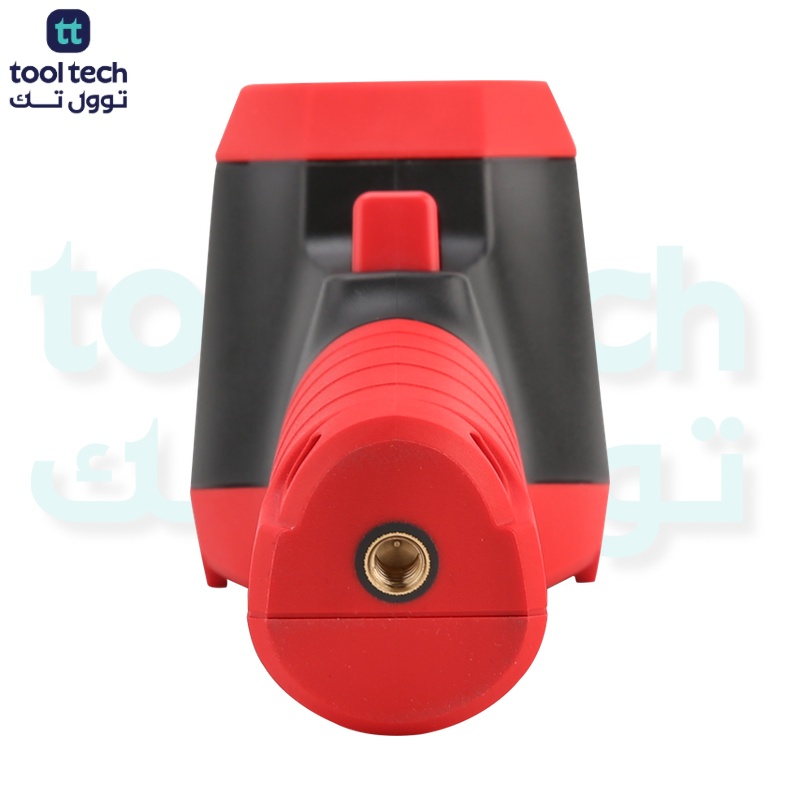

• Standard 1/4 inch tripod mounting hole
• IP54 dust and water resistance
• Drop resistance up to 2 meters

Specification

Infrared Resolution	120 × 90 pixels
Display	2.4 inch TFT LCD (320 × 240)
Field of View (FOV)	50° × 38°
Thermal Sensitivity (NETD)	≤ 60 mK
Spatial Resolution (IFOV)	7.3 mrad
Frame Rate	≤ 25 Hz
Spectral Range	8 – 14 µm
Focus	Focus free
Temperature Measurement Range	-20°C to 400°C
Accuracy	±2°C or ±2% (whichever is greater)
Emissivity	Adjustable 0.01 – 1.00 (default 0.95)

Color Palettes	6 (White Hot, Black Hot, Ironbow, Rainbow HC, Rainbow, Lava)
Image Modes	Thermal
High / Low Temperature Alarm	Icon, LED flashlight, buzzer
PC Software Analysis	Supported
Laser Pointer	Yes
LED Light	Yes

Battery	Built-in Li-ion battery (3.7V, 2600 mAh)
Battery Operating Time	≥ 8 hours
USB Interface	USB Type-C
IP Rating	IP54
Drop Resistance	Up to 2 meters
Storage	16 GB Micro SD card
Image / Video Format	BMP
Certifications	CE, UKCA, FCC, RoHS
Net Weight	310 g
Product Dimensions	197 × 72 × 60 mm

Applications

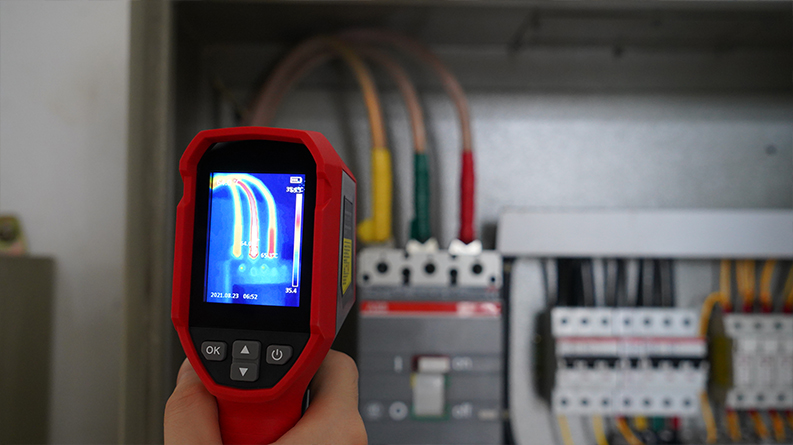

Electricity Inspection

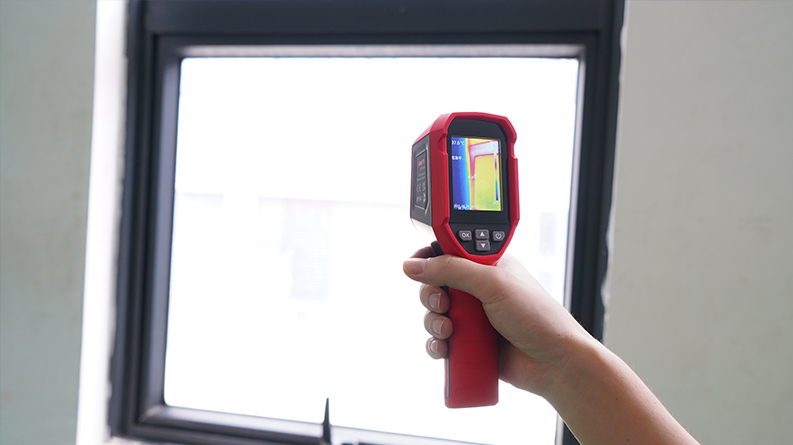

Window sealing Inspection

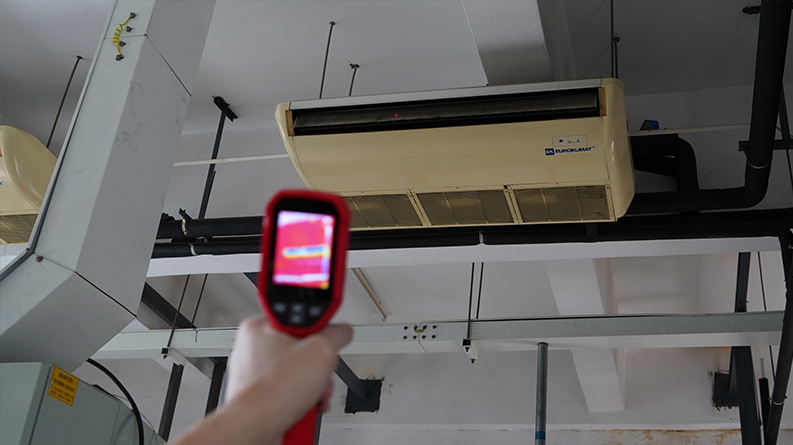

HVAC Inspection

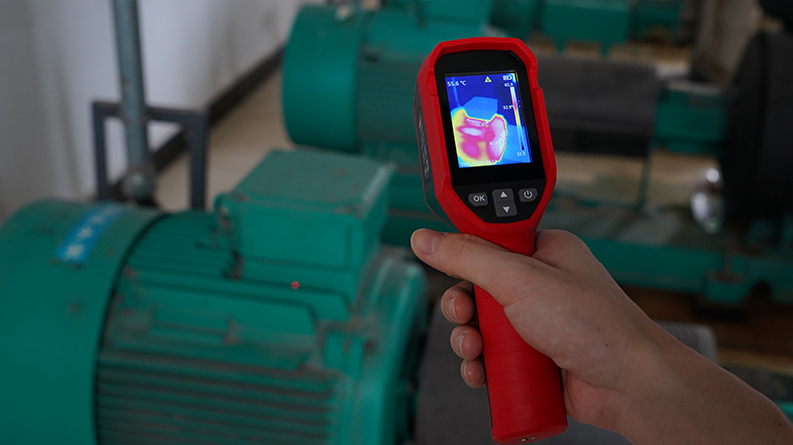

Motor Inspection

Electricity Inspection

Package Contents

1x Thermal Camera UTi712S
1x Li-ion Battery (3.7V/2600mAh)
1x USB Type-C Cable
1x Micro SD Card

Documents

UTi712SUTi716S-Data-Sheet

UTi712S_User-Manual_EN

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “UTi712S Cost-effective Thermal Camera”

UTi712S Cost-effective Thermal Camera

Description

Overview

Features

Specification

Applications

Package Contents

Documents

Reviews

UNI-T UT122 Smart Digital Multimeter

UNI-T UT123T Pocket-sized Residential Multimeter

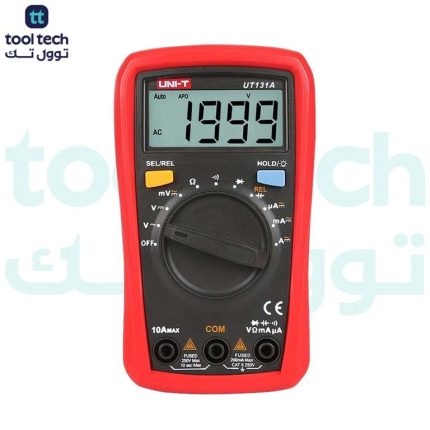

UNI-T UT131A Palm Size Multimeter

UNI-T UT136C+ Digital Multimeter

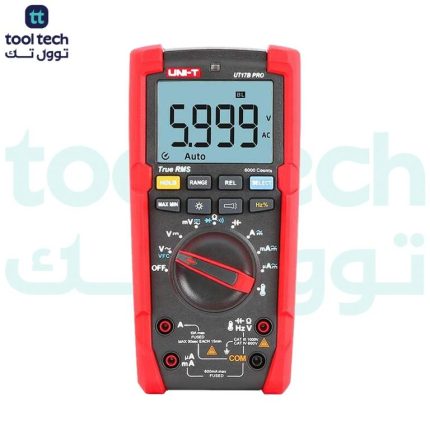

UNI-T UT17B PRO Digital Multimeter

UNI-T UT195E Professional Multimeter

UNI-T UT204+ Digital Clamp Meter

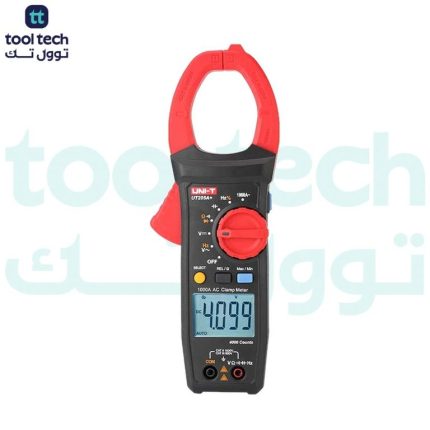

UNI-T UT205A+ Digital Clamp Meter
