Description
7410 IC Triple 3-input NAND Gate
What does the 74LS10 do?
The 74×10 gives you three 3-input NAND gates that you can use individually. A NAND gate is a logic gate that outputs 0 (LOW) only if all of its inputs are 1 (HIGH). In the truth table below, you can see what the output will be for any given input:
The truth table for the NAND gate
74×10 Pinout
The 74×10 has 14 pins and contains three 3-input NAND gates laid out as shown in the pinout diagram below:
Pin #
Type
Description
1
Input
Input to the first NAND gate.
2
Input
Input to the first NAND gate.
3
Input
Input to the second NAND gate.
4
Input
Input to the second NAND gate.
5
Input
Input to the second NAND gate.
6
Output
Output from the second NAND gate.
7
Power
Connect to ground (GND).
8
Output
Output from the third NAND gate.
9
Input
Input to the third NAND gate.
10
Input
Input to the third NAND gate.
11
Input
Input to the third NAND gate.
12
Output
Output from the first NAND gate.
13
Input
Input to the first NAND gate.
14
Power
Positive power supply (VCC). Connect to +5V power.
How To Use This Chip

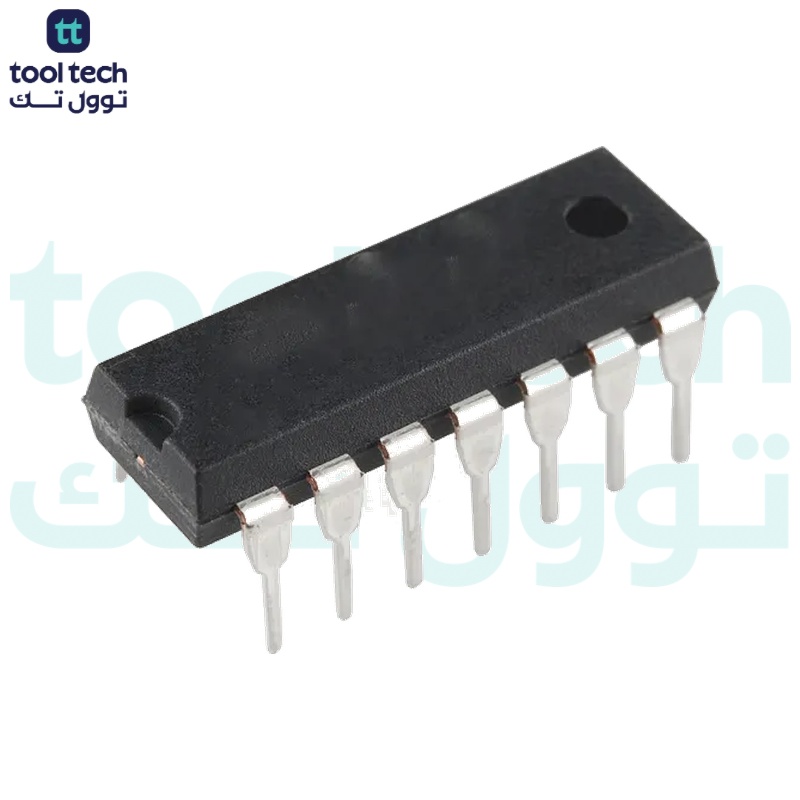

The 74HC10 comes in a 14-pin package, and you need to connect it to power before you can use it. Most 7400 ICs support a VCC voltage of 5V. One difference between the HC and LS versions of the chip is that the 74HC10 supports 2V to 6V, while the 74LS10 only supports 5V.
The 74HC10/74LS10 IC connected to power
Once you’ve connected it to power, you can use any of the three 3-input NAND gates inside.
Technical Specifications
Product Attribute
Attribute Value
Product Category:
Logic Gates
Logic Function:
NAND
Number of Gates:
3 Gate
Logic Family:
LS
Number of Input Lines:
9 Input
Package/Case:
PDIP-14
Number of Output Lines:
3 Output
Low Level Output Current:
8 mA
High Level Output Current:
– 400 uA
Propagation Delay Time:
10 ns
Supply Voltage – Min:
4.75 V
Supply Voltage – Max:
5.25 V
Minimum Operating Temperature:
0 C
Maximum Operating Temperature:
+ 70 C
Mounting Style:
Through Hole
Function:
NAND
Input Type:
TTL
Logic Type:
3-Input NAND
Operating Supply Current:
27 uA
Operating Supply Voltage:
5 V
Output Type:
TTL
Series:
SN74LS10
7410 Datasheet
