74

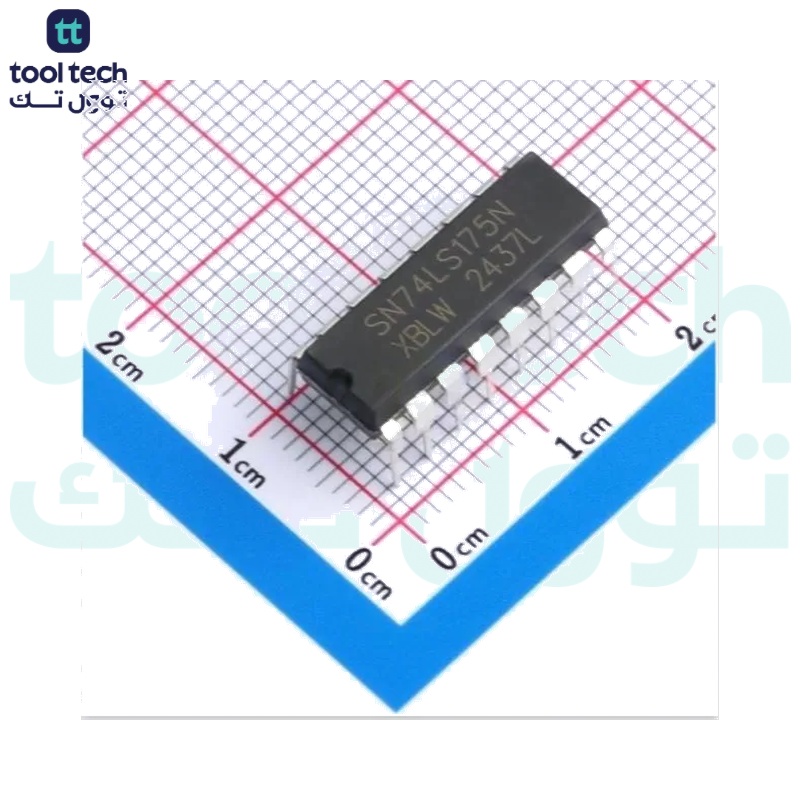

175 IC Quad D-Type Flip-Flop with Reset Positive-Edge Trigger DIP-16
The 74175 is a Quad D-Type Flip-Flop with Reset from XBLW, designed to provide reliable storage and processing of data in sequential logic circuits. This integrated circuit features four independent D-type flip-flops, each with a reset input, allowing for greater flexibility in digital design. The flip-flops are triggered on the positive edge of the clock input, making them ideal for use in systems that require synchronized data storage and retrieval.
Features
Four independent D-type flip-flops with reset.
Positive-edge triggering for reliable data latching.
Reset capability for clearing outputs to a known state.
High-speed operation for sequential logic circuits.
Operates over a wide voltage range for increased flexibility.
Standard 16-pin Dual In-line Package (DIP) for easy integration.
Commonly used in registers, counters, and memory devices.
Specifications
Parameter
Value
Category
Integrated Circuits (ICs)/Logic/Flip Flops
Manufacturer
XBLW
Package
DIP-16
Voltage – Supply
2V~6V
Clock Frequency
83MHz
Propagation Delay
17ns@5V,15pF
Operating Temperature
-20℃~+85℃
Function
Reset
Series
74LS Series
Type
D-Type
Synchronous/Asynchronous
Asynchronous
Number of Bits per Element
4
Number of Elements
4
Setup Time
1ns
Hold Time
0ns
Quiescent Current
1uA
Output Type
Complementary
Trigger Type
Rising Edge
Pin Configuration
Pin Number
Pin Name
Description
1
MR
Asynchronous Master Reset (Active LOW)
2
Q0
Flip-Flop Output
3
/Q0
Complementary Flip-Flop Output
4
D0
Data Input 0
5
D1
Data Input 1
6
/Q1
Complementary Flip-Flop Output
7
Q1
Flip-Flop Output
8
GND
Ground
9
CP
Clock Input (Positive Edge Triggered)
10
Q2
Flip-Flop Output
11
/Q2
Complementary Flip-Flop Output
12
D2
Data Input 2
13
D3
Data Input 3
14
/Q3
Complementary Flip-Flop Output
15
Q3
Flip-Flop Output
16
Vcc
Supply Voltage
Footprint
Applications
Data storage and temporary memory elements in digital systems.
Register implementation for microprocessors and digital controllers.
Counters and frequency dividers in timing circuits.
Data latching and buffering in communication systems.
Shift registers for serial-to-parallel or parallel-to-serial conversion.
Control and sequencing circuits in embedded systems.
State machines and logic control applications.
Digital signal synchronization and timing alignment.
Package Contents
1 x
74175 IC Quad D-Type Flip-Flop with Reset Positive-Edge Trigger DIP-16
