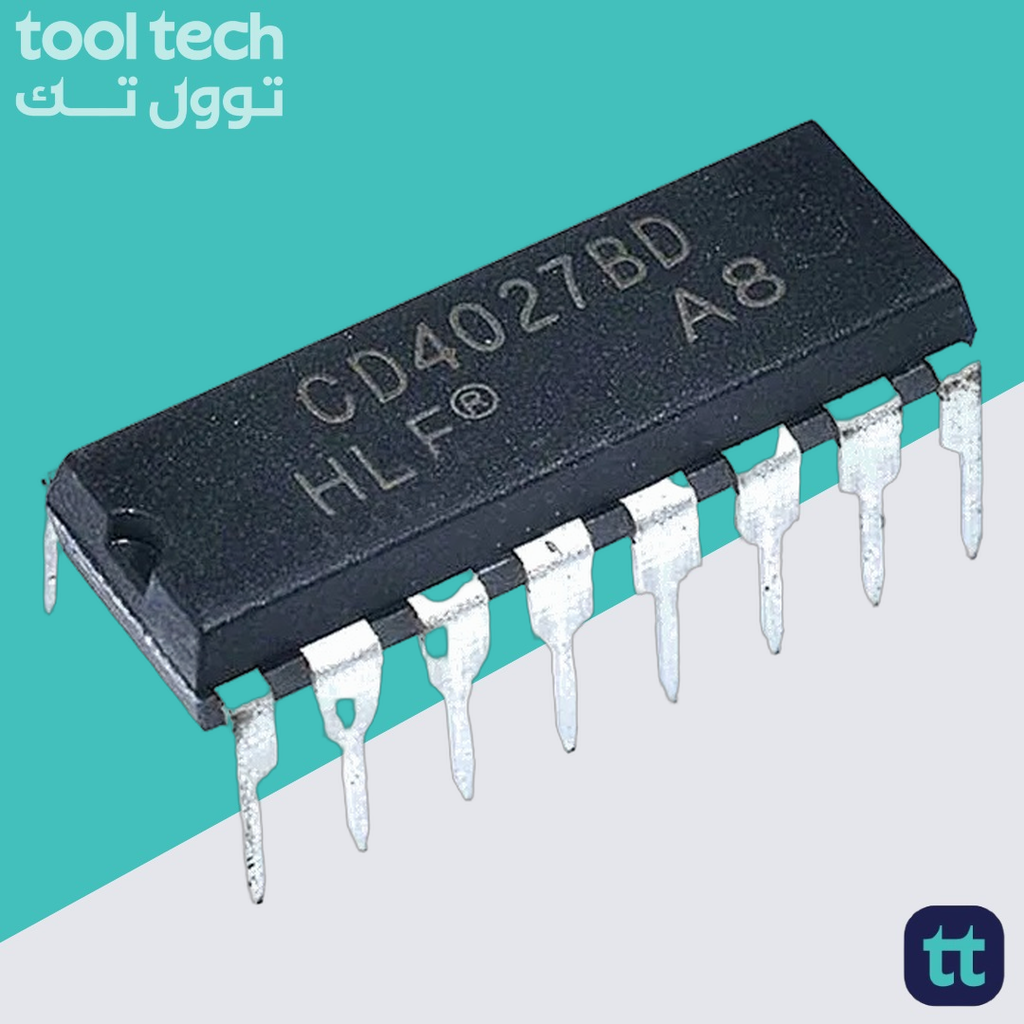

CD4027BD Dual J-K Master-Slave Flip-Flop 20V 200µA IC DIP-16

Description

CD4027BD Dual J-K
Master-Slave Flip-Flop
20V 200µA IC DIP-16

The CD4027BD is a CMOS logic integrated circuit that contains two independent J-K master-slave flip-flops within a single package. Each flip-flop includes J and K data inputs, a clock input, asynchronous set and reset controls, and complementary Q and Q̅ outputs.

The master-slave configuration ensures reliable state changes synchronized with the clock signal, preventing unwanted transitions. Thanks to CMOS technology, the CD4027BD offers low power consumption, wide operating voltage range, and excellent noise immunity, making it suitable for both low-power battery devices and industrial digital systems.

It is widely used in counters, frequency dividers, memory storage elements, sequencing circuits, and digital control systems, where stable and predictable logic operation is required.

Features:

Dual independent J-K flip-flops.

Master-slave flip-flop architecture.

Asynchronous set and reset inputs.

Complementary Q and Q̅ outputs.

Clock-controlled state switching.

Static operation (data retained without clock).

CMOS logic technology.

High noise immunity.

Specifications:

Parameter

Symbol

Value

Unit

Conditions / Description

Logic Type:

–

Dual J-K Master-Slave Flip-Flop

–

Functional description

Number of Flip-Flops:

–

2

–

Internal flip-flop count

Output Type:

–

Q and Q̅

–

Complementary outputs

Trigger Type:

–

Clock controlled

–

Master-slave architecture

Technology:

–

CMOS

–

Logic family

Package Type:

–

DIP-16

–

Through-hole package

Mounting:

–

Through-Hole

–

PCB mounting style

Supply Voltage:

VDD

-0.5 to 20

V

Absolute maximum

Input Voltage:

VIN

-0.5 to VDD + 0.5

V

All inputs

Supply Current:

IDD

200

µA

VDD = 20V, TA = +125°C

Input Current:

IIN

1

µA

18V, full temperature

Propagation Delay Clock:

tPHL / tPLH

130

ns

VDD = 10V, CL = 50pF

Maximum Clock Frequency:

fCL

12

MHz

VDD = 15V

Operating Temperature:

TA

-55 to +125

°C

Industrial range

Pinout:

Pin

Name

Description

1

Q1

Output of Flip-Flop 1

2

Q̅1

Inverted Output of Flip-Flop 1

3

CP1

Clock Input 1

4

R1

Reset 1

5

K1

K Input 1

6

J1

J Input 1

7

S1

Set 1

8

VSS

Ground

9

S2

Set 2

10

J2

J Input 2

11

K2

K Input 2

12

R2

Reset 2

13

CP2

Clock Input 2

14

Q̅2

Inverted Output of Flip-Flop 2

15

Q2

Output of Flip-Flop 2

16

VDD

Supply Voltage

Packages:

1x CD4027BD Dual J-K Master-Slave Flip-Flop 20V 200µA IC DIP-16.
