Description

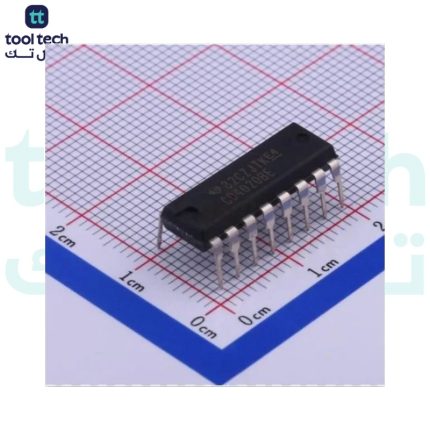

4013 IC Dual
D-Type Flip-Flop
The CD4013B is a monolithic integrated circuit fabricated using complementary MOS (CMOS) technology. It is designed as a dual, independent D-type flip-flop, meaning a single package contains two complete and separate data storage elements. Each flip-flop operates as a fundamental building block in digital electronics, capable of storing a single bit of data. The device is characterized by its high noise immunity and low power consumption, which are typical benefits of the CMOS construction process, making it suitable for a wide range of digital logic applications.
Functionally, each flip-flop within the CD4013B features dedicated data (D), clock (CLK), set (SET), and reset (RESET) inputs, along for complementary outputs (Q and Q-not). The state of the D input is transferred to the Q output upon the application of a clock pulse, specifically on the positive-going edge. The independent Set and Reset inputs, which are active high, allow for the immediate setting or clearing of the flip-flop’s output regardless of the clock signal, providing direct control over the stored data state.
This IC is offered in a variety of package options to accommodate different assembly and space requirements. These include 14-lead ceramic and plastic dual-in-line packages (CDIP, PDIP), as well as small-outline (SOIC) and thin shrink small-outline (TSSOP) packages for surface-mount technology. The
CD4013B
is specified for operation over a broad temperature range, supporting its use in industrial and military environments, and is part of the CD4000 series of logic chips which are known for their wide operating voltage range.
Features:
Constructed with CMOS technology for low power consumption and high noise immunity.
Contains two independent, identical D-type flip-flops in one package.
Features complementary Q and Q outputs from each flip-flop.
Includes asynchronous Set and Reset inputs for direct control.
Positive-edge triggering on the clock input.
Wide operating voltage range from 3V to 18V.
High-voltage types (20V rating) for robust operation.
Pinout Configurations:
Pin No
Pin Symbol
Name
Description
1,13
1Q/2Q
Output
Output Pin of the Flip Flop
2,12
1Q’(bar)/2Q’(bar)
Complementary Output
The inverted output pin of Flip Flop
3, 11
1CP/2CP
Clock Input Pin
These pins must be provided with a clock pulse for the flip-flop
4,10
1CD/2CD
Clear Data
Resets the flip-flop by clearing its memory
5,9
1D/2D
Data Input Pin
Input pin of the Flip Flop
6,8
1SD/2SD
Set-direct Input
Another Input pin for Flip Flop
7
Vss
Ground
Connected to the ground of the system
14
Vdd/Vcc
Supply Voltage
Powers the IC typically with 5V
Specifications
Parameter
Condition
Min
Typ
Max
Unit
Absolute Maximum Ratings
DC Supply Voltage (VDD)
–
-0.5
–
+20
V
Input Voltage Range (All Inputs)
–
-0.5
–
VDD + 0.5
V
DC Input Current (Any One Input)
–
–
–
±10
mA
Power Dissipation (PD)
TA = −55°C to +100°C
–
–
500
mW
Operating Temperature Range (TA)
–
-55
–
+125
°C
Storage Temperature Range (Tstg)
–
-65
–
+150
°C
DC Electrical Characteristics
Quiescent Device Current
VDD = 20V, VO = 0/20V
–
0.25
5.0
µA
Input Capacitance (Cin)
Any Input
–
5.0
7.5
pF
Dynamic Electrical Characteristics (TA = 25°C)
Propagation Delay (Clock → Q)
VDD = 5V
–
150
300
ns
VDD = 10V
–
65
130
ns
VDD = 15V
–
45
90
ns
Propagation Delay (Set/Reset → Q)
VDD = 5V
–
150
300
ns
VDD = 10V
–
65
130
ns
VDD = 15V
–
45
90
ns
Maximum Clock Frequency (fCL)
VDD = 5V
3.5
7
–
MHz
VDD = 10V
8
16
–
MHz
VDD = 15V
12
24
–
MHz
Minimum Clock Pulse Width (tw)
VDD = 5V
–
70
140
ns
VDD = 10V
–
30
60
ns
VDD = 15V
–
20
40
ns
Minimum Set/Reset Pulse Width (tw)
VDD = 5V
–
90
180
ns
VDD = 10V
–
40
80
ns
VDD = 15V
–
25
50
ns
Data Setup Time (ts)
VDD = 5V
–
20
40
ns
VDD = 10V
–
10
20
ns
VDD = 15V
–
7
15
ns
Data Hold Time (th)
VDD = 5V / 10V / 15V
–
2
5
ns
Clock Input Rise/Fall Time (tTLH, tTHL)
VDD = 5V
–
–
15
µs
VDD = 10V
–
–
10
µs
VDD = 15V
–
–
5
µs
Footprint Diagram:
Applications:
Used as Shift Registers.
Memory/Control Registers.
Buffer Circuits.
Sampling Circuits.
Latching devices.
Package Contents:
1x
4013 IC Dual D-Type Flip-Flop
