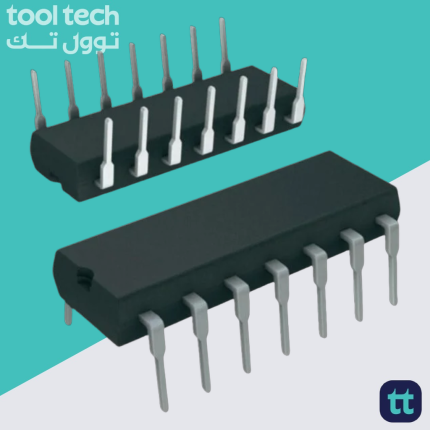

LM324 Quadruple Operational Amplifier DIP-14

Description

The LM324 is one of the most classic and widely used integrated circuits in electronics. It consists of four independent, high-gain, internally frequency-compensated operational amplifiers (op-amps) designed to operate from a single power supply over a wide range of voltages.

Key Specifications

• Number of Op-Amps: 4 (Quad)

• Supply Voltage Range: 3V to 32V (Single supply) or $\pm 1.5\text{V}$ to $\pm 16\text{V}$ (Dual supply)

• Input Common-Mode Voltage: Includes Ground (essential for single-supply applications)

• Output Voltage Swing: Near Ground (0V) to $V_{CC} – 1.5\text{V}$

• Low Supply Current: 0.8 mA (typical for all 4 amplifiers)

• Package Type: DIP-14 (14-pin dual-inline package)

Pinout Configuration (DIP-14)

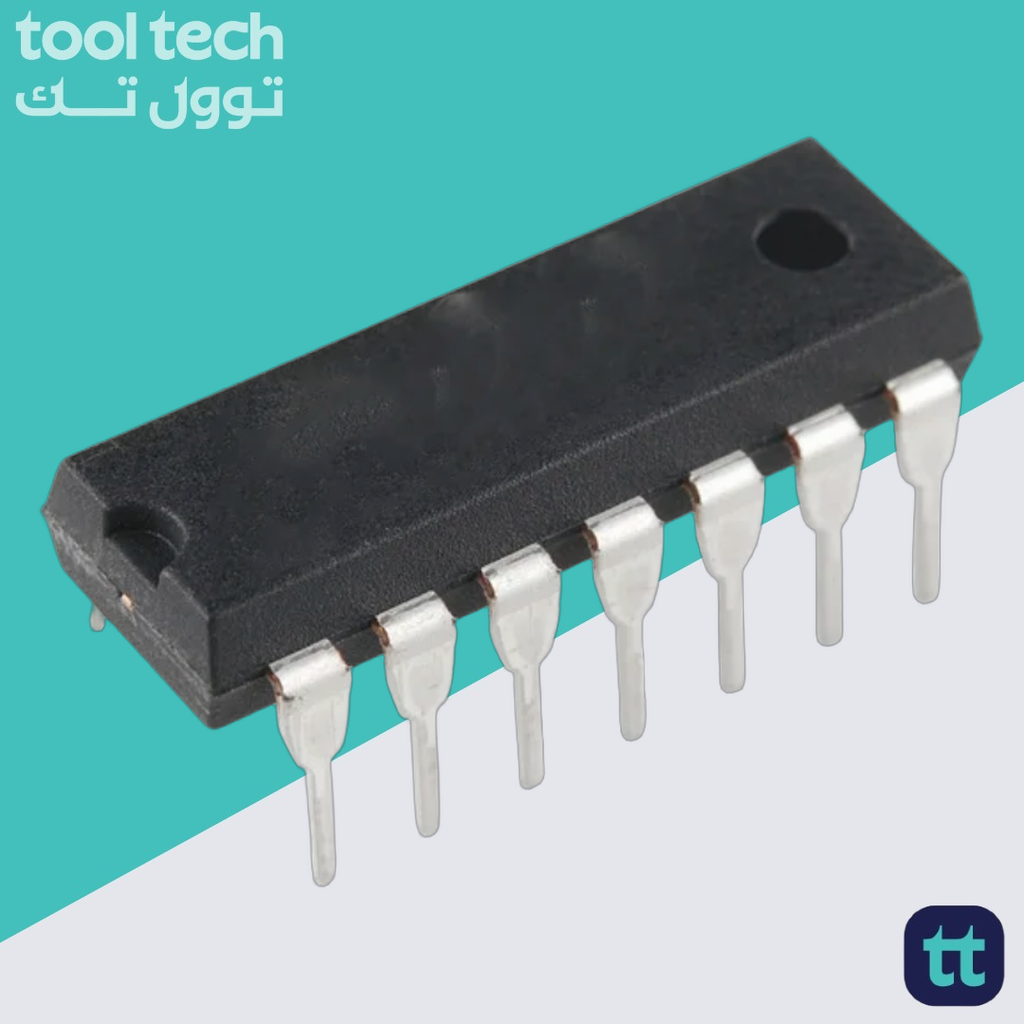

The LM324 is packaged in a 14-pin DIP. The notch or dot at one end indicates Pin 1.

1. Output 1 (Pin 1)

2. Inverting Input 1 (Pin 2)

3. Non-Inverting Input 1 (Pin 3)

4. VCC+ (Pin 4)

5. Non-Inverting Input 2 (Pin 5)

6. Inverting Input 2 (Pin 6)

7. Output 2 (Pin 7)

8. Output 3 (Pin 8)

9. Inverting Input 3 (Pin 9)

10. Non-Inverting Input 3 (Pin 10)

11. GND / VCC- (Pin 11)

12. Non-Inverting Input 4 (Pin 12)

13. Inverting Input 4 (Pin 13)

14. Output 4 (Pin 14)

Why the LM324 is a Staple

The LM324 is favored because it allows four separate amplification stages on one chip, saving significant board space. Its ability to operate from a single supply makes it perfect for battery-powered or automotive circuits where a negative voltage rail might not be available.

Common Applications

• Signal Conditioning: Pre-amplifying sensor signals (e.g., thermistors, phototransistors).

• Active Filters: Creating low-pass, high-pass, or band-pass filters for audio and signal processing.

• Comparators: Comparing two signals and providing a high/low output.

• Oscillators/Function Generators: Used in circuits to generate sine, square, or triangle waves.

Design Tips & Best Practices

• Single Supply Operation: Because the input common-mode range includes Ground, you can connect the negative input to ground and amplify signals starting from 0V without needing a negative power supply.

• Crossover Distortion: The LM324 is a Class B output stage design, which can introduce small amounts of “crossover distortion” at the zero-crossing point. For high-fidelity audio, you might choose a different op-amp, but for general-purpose instrumentation, this is usually negligible.

• Decoupling: Even though it is a low-frequency device, always place a $0.1\mu\text{F}$ ceramic capacitor close to the $V_{CC}$ (Pin 4) and GND (Pin 11) pins to prevent high-frequency oscillation.

• Output Loading: The LM324 is not a high-current driver. If you need to drive heavy loads (like a loudspeaker or a motor), you will need to buffer the output with a transistor stage.
