Male Female Blade Crimp Terminal Insulated (6.3mm)

Description

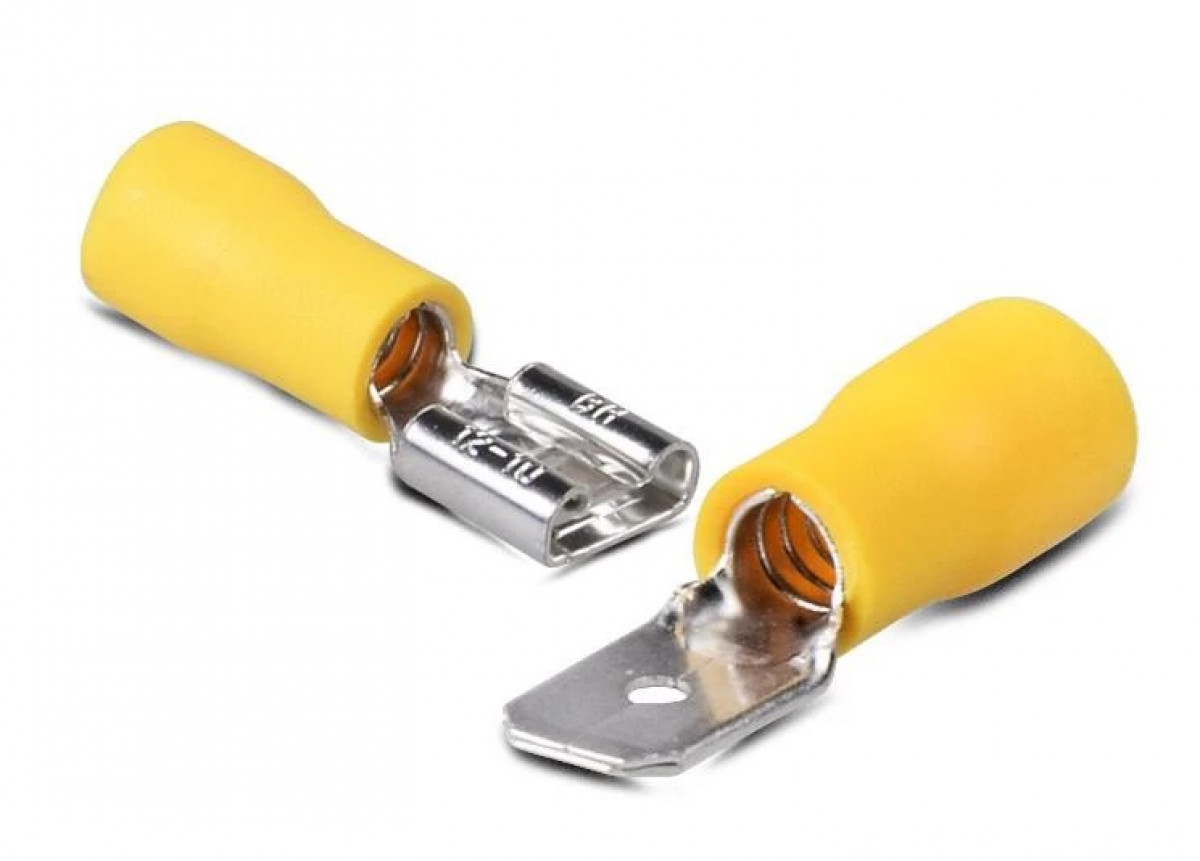

Insulated Male-Female Piggyback Blade Crimp Terminal (6.3mm)

Product Overview

The Insulated 6.3mm Male-Female Piggyback Blade Terminal is a highly versatile, multi-connection quick-disconnect component engineered for high-density wiring configurations. Its unique structural design combines a female receptacle receptacle and an integrated male tab extending from the same terminal base, allowing you to stack multiple wire connections onto a single single-tab terminal block, switch, or electrical relay.

Encased in a rigid vinyl (PVC) insulation sleeve over a high-conductivity brass core, this space-saving terminal eliminates the need for splitting or splicing wires when dividing an electrical circuit into two paths.

Key Features

• Dual-Function Piggyback Design: Merges a female quick-disconnect socket with an accessible male blade on a single piece, allowing an additional circuit loop to stack directly into the connection point.

• Flared Insulation Sleeve Entry: Designed with a smooth, funnel-shaped barrel entry that guides stranded wire smoothly into the crimping section, preventing wire bending or stray strands outside the terminal.

• Internal Wire-Lock Serrations: The inner core of the metal crimp barrel features micro-grooves that bite firmly into wire strands upon crimping, ensuring excellent tensile pull-out strength and high conductivity.

• Seamless Multi-Tap Expansion: Eliminates the need for wire-splicing blocks or double-crimping two wires into one barrel, maintaining neat and organized routing inside crowded project enclosures.

Technical Specifications

Applications

The ideal choice for expanding power and signal paths across high-density layouts:

• Control Panels & Relay Networks: Piggybacking power or ground rails across adjacent toggle switches, indicators, and multi-relay distribution blocks.

• Automotive & Marine Custom Wiring: Splitting 12V accessory lines, gauge backlights, or sensor lines directly from existing harness tabs without soldering.

• Appliance & HVAC Maintenance: Used in heating elements, internal power supplies, and machinery panels where primary power lines must easily daisy-chain between internal sub-modules.

• Power Management Distribution: Splitting charging inputs, monitoring leads, or secondary power loops on variable bench power supplies and battery banks.
