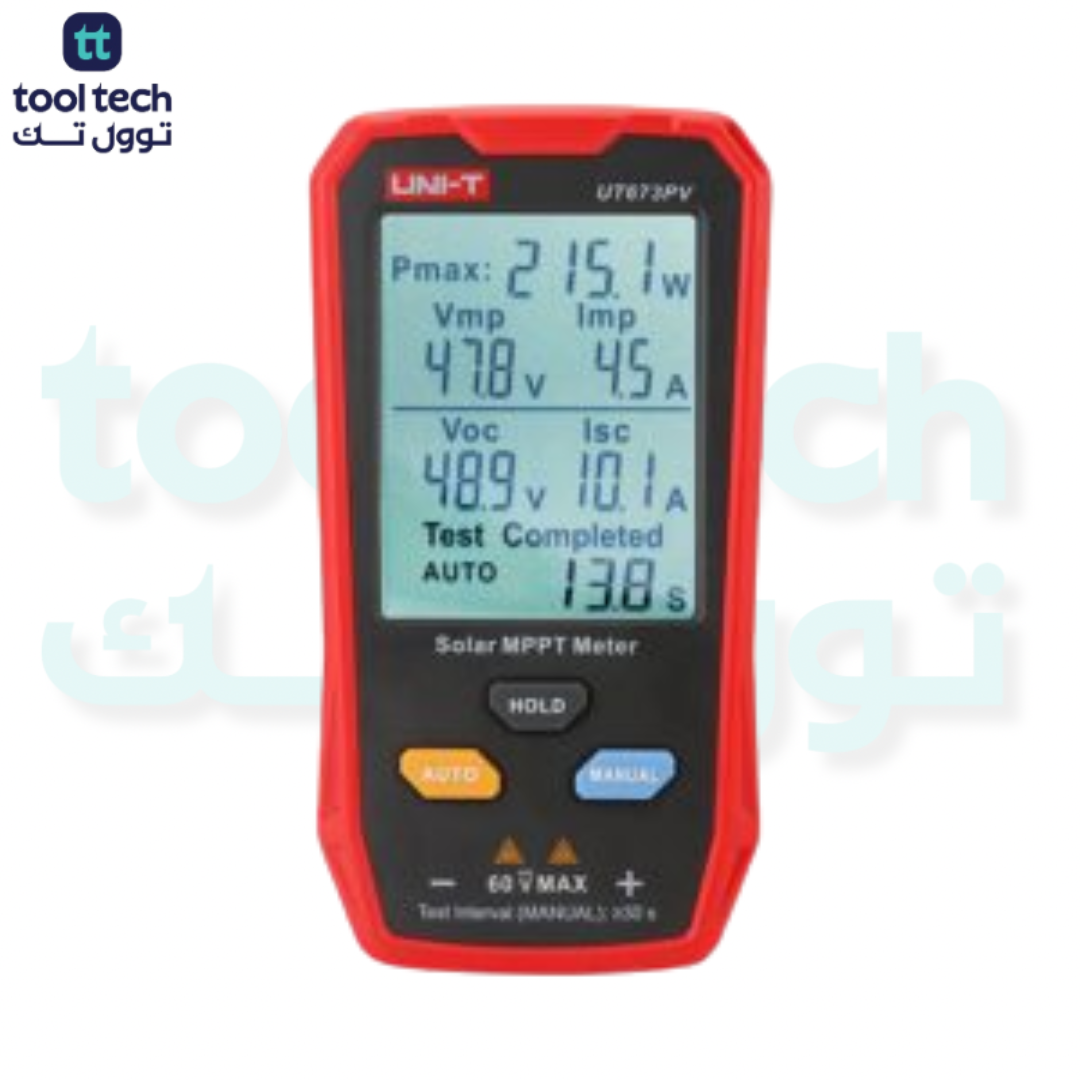

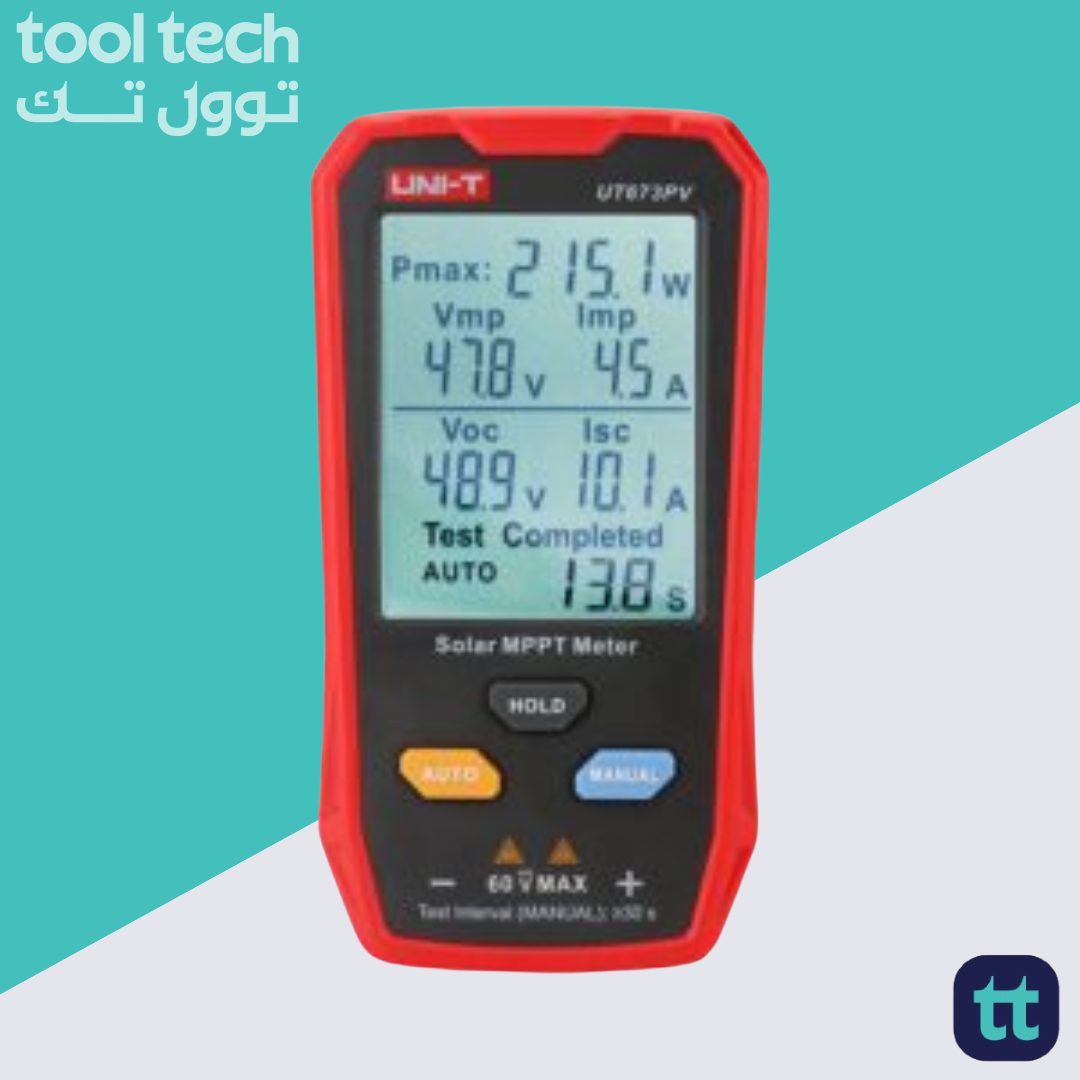

UNI-T UT673PV Solar MPPT Meter
The UNI-T UT673PV Solar MPPT Meter is a powerful tool designed for measuring the performance of solar power systems. It accurately tests and analyzes the output from solar panels, providing real-time data on voltage, current, and power to optimize energy conversion. The device supports MPPT (Maximum Power Point Tracking) testing, helping users assess the efficiency of their solar energy systems and adjust them for maximum performance.
Features:
- MPPT Testing Capability
- Real-Time Data Monitoring
- High Accuracy Measurement
- Large LCD Display
- Data Storage for Future Analysis
- Multi-Unit Support
- Multiple Measurement Functions
- Auto Power Off
- Low Battery Indication
- Compact and Portable Design
Specifications:
| Specification / Feature | Range / Details | Accuracy |
|---|---|---|
| Max Power Measurement: | 5～800 W | ±(1.0% + 10) |
| Max Power Current (DC): | 0～35 A | ±(1.5% + 5) |
| Max Power Voltage (DC): | 12～60 V | ±(1.5% + 5) |
| Open Circuit Voltage (DC): | 12～60 V | ±(1.5% + 5) |
| Short Circuit Current (DC): | 0～35 A | ±(1.5% + 5) |
| Display: | Large LCD (52 × 66 mm) | — |
| Reverse Polarity Connect Protection: | √ | — |
| Over Voltage Protection: | √ | — |
| Over Current Protection: | √ | — |
| Over Temperature Protection: | √ | — |
| Over Power Protection: | √ | — |
| Manual / Auto MPPT Test: | √ | — |
| Data Hold: | √ | — |
| Power Supply: | No battery needed, powered by solar panel | — |
| Over Category: | CAT 0 60 V | — |
| Certificate: | CE, cETLus, RoHS | — |
| Battery Power: | 9 V battery (PP3) × 1 | — |
| Display Size (Secondary): | 48 × 36 mm | — |
| Product Color: | Black and Yellow | — |
| Product Net Weight: | 230 g | — |
| Product Size: | 165 × 90 × 35 mm | — |
Applications:

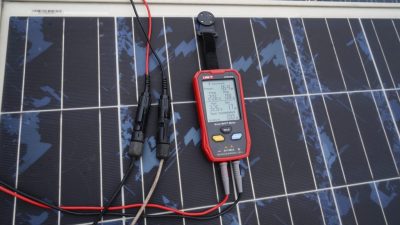

- Solar Energy System Testing: Measure and optimize solar panel output.
- MPPT Analysis: Evaluate and fine-tune solar power efficiency.
- Energy Monitoring: Monitor solar panel performance for renewable energy systems.
- Field Testing: Ideal for use by technicians in the field for solar panel testing.
Package Contents:
- 1× UT673PV Solar MPPT Meter unit
- 1× MC4 test lead (MC4 connection cable)
- 1× MC4 connector wrench (tool)
- 2× MC4 opening tools
- 1× Carrying case / Cloth bag
- 1× User manual (paper manual)
