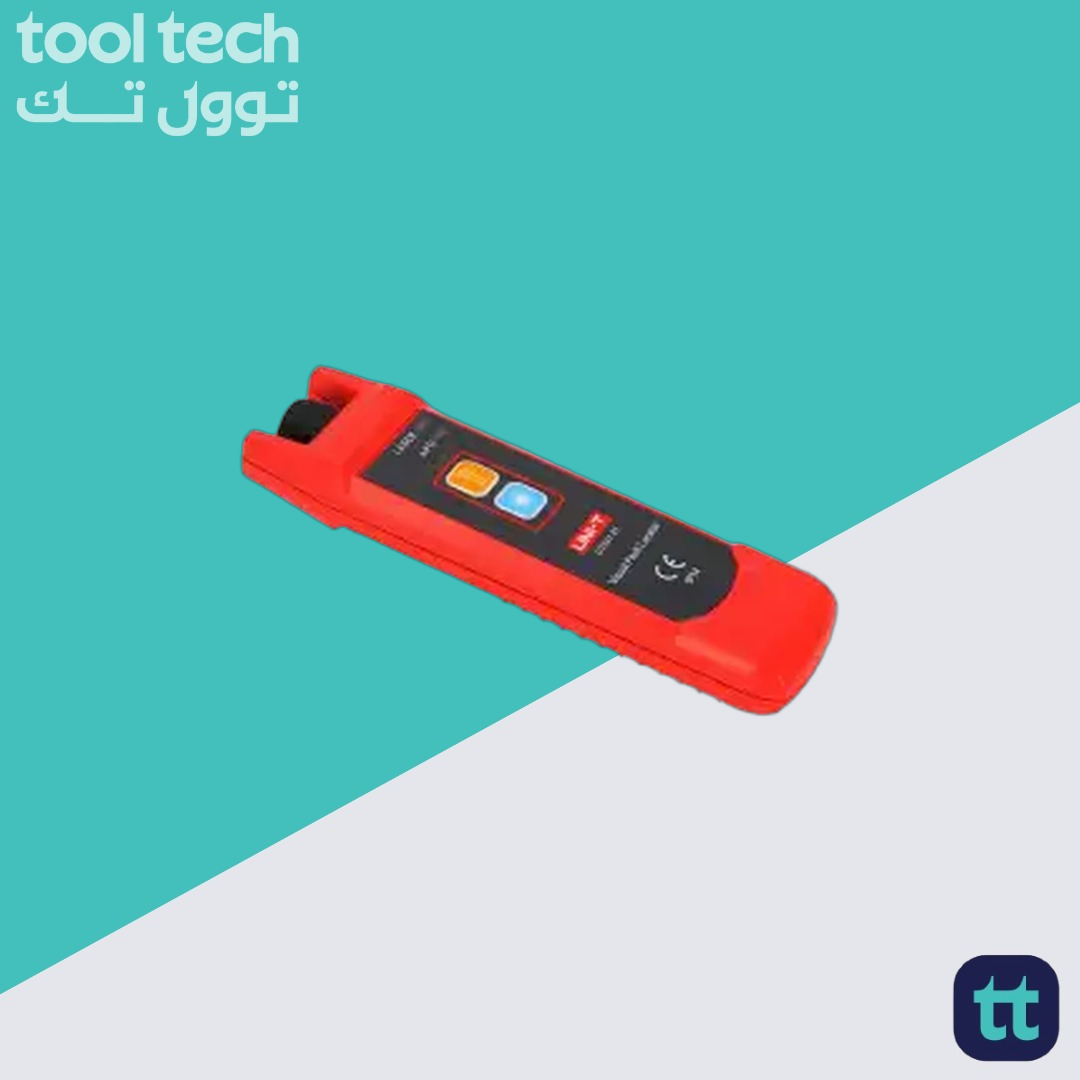

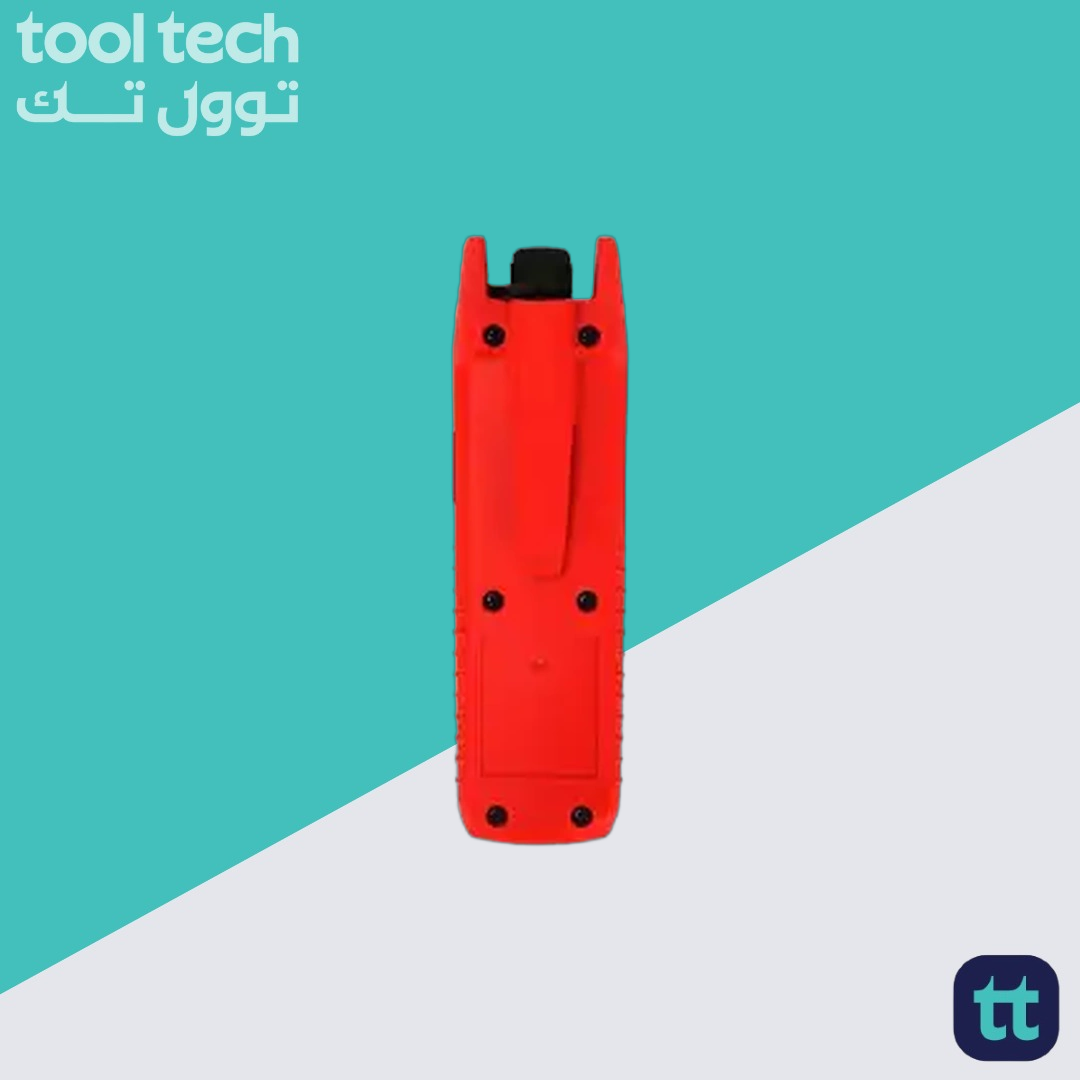

UNI-T UT691-01 Visual Fault Locator

1,225 EGP

The UNI-T UT691-01 Network Cable Tester is a compact and reliable tool for quick testing of Ethernet and communication cables. Designed for network installation and maintenance, it helps identify wiring faults, continuity issues, and connection problems with ease. With simple operation, clear indication, and portable design, the UT691-01 allows technicians and installers to troubleshoot faster and ensure stable, properly wired network connections.

Add to wishlist

Add to wishlist

SKU: UT691 Categories: Measuring Instruments, UNI-T, Wire Tracers & Cable Testers Tags: electrical tools, electronics testing, measurement tools, test equipment, uni-t

Description

Description

The UNI-T UT691-01 Visual Fault Locator is a reliable tool designed for professionals in the telecommunications and networking industries, providing an efficient solution for identifying and locating faults in fiber optic cables. With its compact design and user-friendly interface, this device emits a visible red laser light that helps pinpoint breaks or bends in fiber lines, ensuring quick and accurate troubleshooting. Ideal for technicians and engineers, the UT691-01 enhances productivity by simplifying the process of maintaining and repairing fiber optic networks, making it an essential addition to any toolkit.

UNI-T UT691-01 Visual Fault Locator

UNI-T UT691-01 Visual Fault Locator

UT691 series visual fault locator is designed for optical ﬁber fault detection and locating end-to-end optical ﬁber identiﬁcation, and more. It is IP54 rated, uses 650nm visible red light with 2 emitting modes. With the functions of APO, battery status indicator, and ﬂashlight, it can be widely used in the ﬁelds of optical cable construction and maintenance, optical ﬁber communication or sensing, and optical CATV.

Features:

Non-slip humanized design
Equipped with LED flashlight
3.7V 1050mAh rechargeable lithium battery
Battery level indicator shows, laser indicator shows
Red light wavelength 650+/-20nm
2.5mm universal connector
Automatic shut-down
IP54 protection level

Specifications:

Specifications	UT691-01
Laser output power	≥1mW
Optical ﬁber length range	2~3km
Wavelength of red light	650±10nm
Optical ﬁber adapter	2.5mm FC general connector
Battery type	3.7V 1050mAh polymer lithium battery
Battery life	＞12h
Battery status display	The battery status will be shown by 4 blue LEDs (not in ﬂashlight)
Green indicator	Indicates auto power oﬀ state in which LED will ﬂash white light for 3 times
Laser mode	Continuous mode/Pulse mode
Charge voltage and current	DC 5V, < 1A
APO	15min auto power oﬀ (manual adjustable)
Warning symbol	√
Warning	√
Key press test	＞5000 times
Drop test	1m
General Characteristics
Power	1050mAh rechargeable battery
Product Color	Red and grey
Product net weight	62g
Product size	130mm x 38mm x 27mm

Applications:

Optical fiber fault detection.
End-to-end fiber identification.
Locating fiber breaks, bends, and bad splices.
Fiber network maintenance & construction.
Fiber communication troubleshooting.
CATV / optical cable diagnostics.

UT691-10 application 1

UT691-10 application 2

Package Contents:

1x The UT691-01 unit
1x Rechargeable battery (3.7 V, 1050 mAh lithium)
1x USB charging cable
1x Dust cap / protective cover for fiber connector
1x User manual / instruction sheet
1x Gift box / standard packaging
