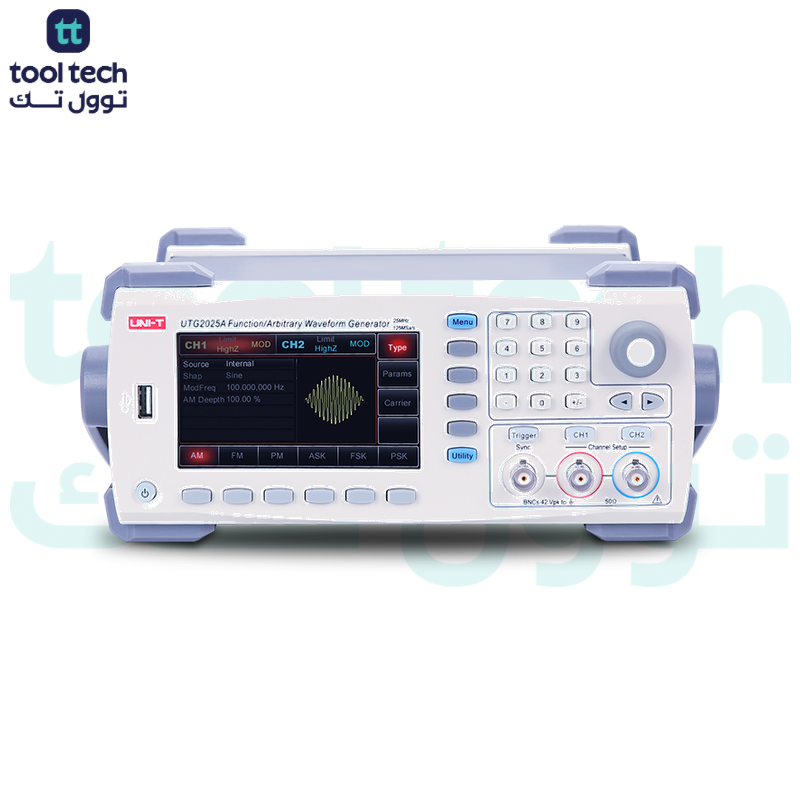

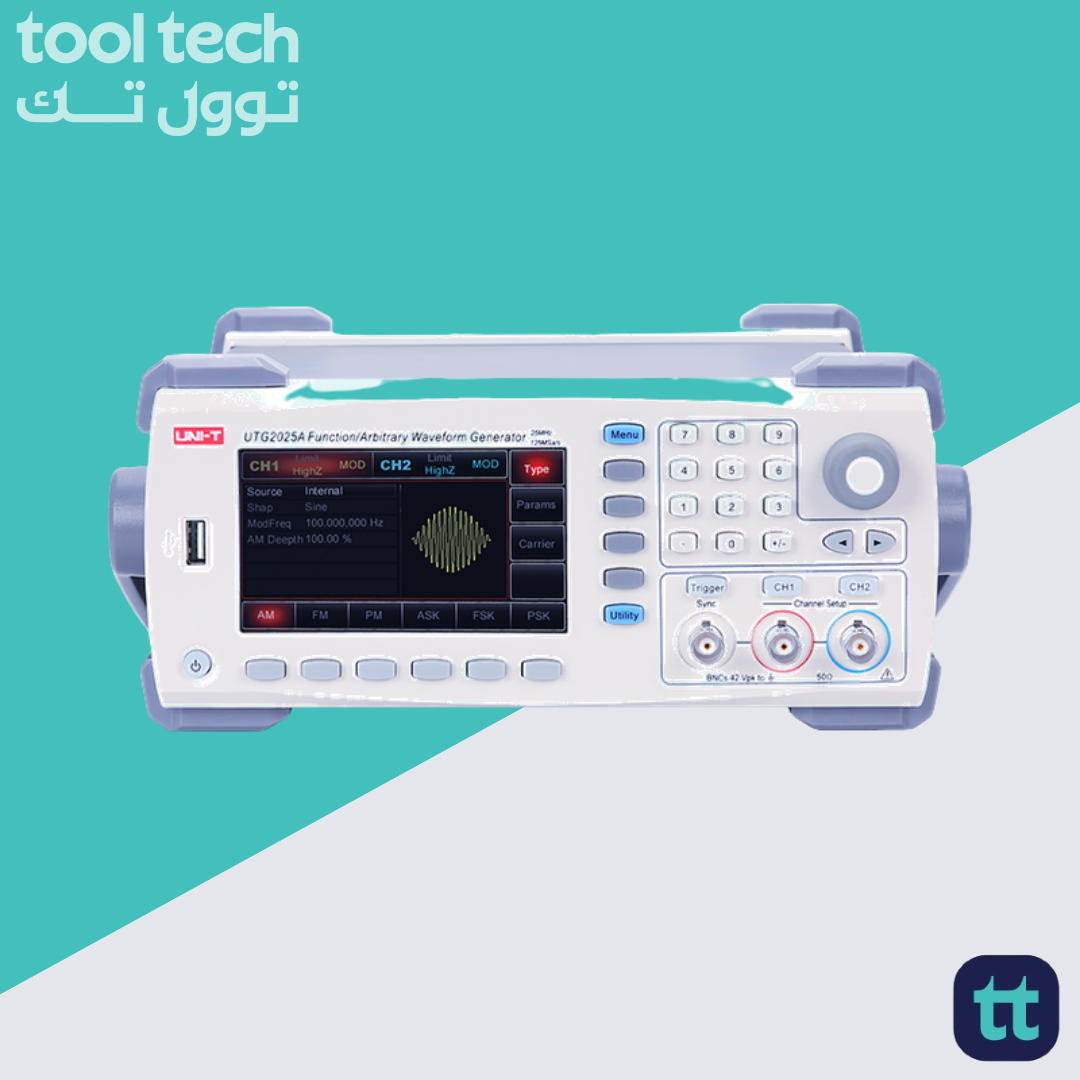

UNI-T UTG2025A Function Generator
The UNI-T UTG2025A is a compact function generator designed to produce stable, repeatable electrical waveforms for test and development tasks. Its front panel and controls are arranged to make basic waveform creation quick and predictable, letting users set frequency, amplitude and offset with minimal navigation. The unit feels solid and purpose-built for bench use while remaining small enough for portable test setups.
In practical use the instrument serves as a straightforward signal source: selecting a waveform and adjusting its parameters yields immediate, visible changes at the BNC output. Menus and knobs work together so routine tasks (tuning frequency, enabling modulation, starting/stopping bursts) are handled without searching through deep menus. The device balances usability and capability, so repetitive measurements are less tedious.
Overall, the UTG2025A comes across as a reliable, no-frills function generator that emphasizes clarity and control. It gives the impression of being aimed at engineers, technicians and students who need a predictable waveform source for debugging circuits, performing lab exercises or validating small systems. The supplied documentation and connectors make it ready for immediate bench use.
Features:
- Multiple standard waveform types (sine, square, triangle, ramp, pulse).
- Frequency and amplitude adjustable with coarse/fine controls.
- External analog and digital modulation inputs (FM/AM/PM capability).
- Burst and sweep functions.
- USB connectivity for remote control/data transfer.
- BNC output and provision for external counter/sync connections.
- On-board memory for recalling user setups.
Specifications:
| Item | Value / Note |
|---|---|
| Model: | UTG2025A (request based on the UTG2000A series manual). |
| Channels: | not specified in uploaded PDF (UTG2000A series includes single/dual variants). |
| Frequency range: | not specified in uploaded PDF. |
| Output waveforms: | Sine, square, triangle, ramp, pulse (standard for series). |
| Amplitude (into 50 Ω): | not specified in uploaded PDF. |
| Output impedance: | not specified in uploaded PDF. |
| Modulation: | External analog/digital modulation inputs (FM/AM/PM supported). |
| Burst / Sweep: | Burst and sweep functions present. |
| Display: | not specified in uploaded PDF. |
| Interfaces: | USB connector; external analog modulation input; external digital modulation / counter connector. |
| Included cables / connectors: | BNC cable and BNC + red/black alligator clip connection (1 m) listed in standard configuration. |
| Power: | Supplied power line up to local standard (manual lists this in standard configuration). |
| Other: | On-board memory, CD for users (software), warranty card (listed in manual). |
Applications:
- Signal source for circuit debugging.
- Lab and classroom waveform demonstrations.
- Functional testing of analog/digital circuits.
- Modulation testing and communications labs.
Package Contents:
- 1x Power cord (to local standard)
- 1x USB data cable
- 1x BNC cable (1 m)
- 1x BNC + red/black alligator clip connection (1 m)
- 1x CD (software/drivers/manual)
- 1x Product warranty card
- 1x User manual
