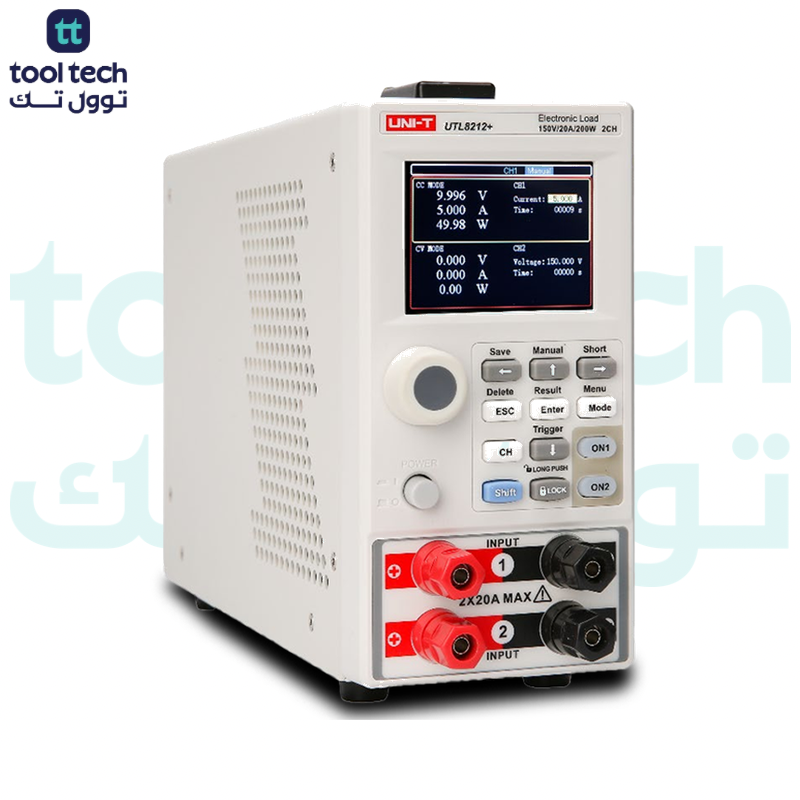

UNI-T UTL8212+ DC Electronic Load Dual Channel
UTL8200+ series electronic load is equipped with a 2.8-inch LCD display, which is easy to operate and stylish in appearance. Its test resolution is up to 1mV/1mA. Equipped with rich test functions and modes for you to choose. The equipment is equipped with RS232 communication module, which can flexibly meet various on-site test conditions, and is convenient for seamless connection with automated production lines and automatic test systems. The electronic load operates stably and has a wide range of applications, adapting to various testing requirements.
Features:
- 2.8 inch 24-bit true color LCD
- The maximum power 200W x2, the maximum current 0~20A (single group channel), the maximum voltage 150V
- 8MHz synchronous current and voltage ADC sampling
- Dual Channel 200Wx2
- Measurement resolution is up to 1mV/1mA
- Foursomes CC/CV/CR/CP
- Dynamic current test is up to 5kHz
- Rising and falling rate of programmable current
- Analog short circuit analog function
- Multi-mode battery discharge
- List mode supports automatic test and quick unload
- Overvoltage, low voltage, overcurrent, overpower, overheat protection and anti-reverse connection warning
- Electrode-less servo, smart fans system
- Power cutoff memory
- Standard RS232 port (RS485 port optional)
- Standard SCPI protocol
- Matched computer software for remote control and monitor
Specifications:
| Model | UTL8212+ | |||
| Display Screen | LCD | |||
|
Rated Value 0~40℃ |
Input Voltage | 0~150V | ||
| Input Current | 0~20A (single group channel) | |||
| Input Power | 200W x 2 | |||
| Minimum of
Operating Voltage |
2.0V at 20A |
|||
|
CV (Constant Voltage) Mode |
Range | 0~150V | ||
| Resolution | 1mV | |||
| Accuracy | ± (0.05%+0.1%FS) | |||
|
CC (Constant Current) Mode |
Range | 0~2A | 0~20A | |
| Resolution | 1mA | 10mA | ||
| Resolution | ± (0.1%+0.1%FS) | |||
| CR (Constant Resistance) Mode | Range | 0.05Ω~7.5KΩ | ||
| Resolution | 12bit | |||
| Accuracy | ± (0.3%Vin/Rset+0.2%IF.S) | |||
|
CP (Constant Power) Mode |
Range | 400W | ||
| Resolution | 10mW | |||
| Accuracy | ± (0.1%+0.5%FS) | |||
|
Dynamic Mode |
T1&T2 | 100μS~50S/Res:100μS | ||
| Rising/Falling slope |
0.04A/mS~0.2A/μS |
|||
| Minimum of Rising Time |
100us |
|||
|
Readback Voltage |
Range | 0~15V | 0~150V | |
| Resolution | 1mV | 10mV | ||
| Accuracy | ± (0.1%+0.1%FS) | |||
|
Readback Current |
Range | 0~2A | 0~20A | |
| Resolution | 1mA | 10mA | ||
| Accuracy | ± (0.1%+0.1%FS) | |||
|
Readback Power |
Range | 200W | ||
| Resolution | 10mW | |||
| Accuracy | ± (0.1%+0.5%FS) | |||
| Overpower Protection | Delay protection, immediate protection | |||
| Overcurrent Protection | Delay protection, immediate protection | |||
| Overvoltage Protection | Delay protection, immediate protection | |||
| Overtemperature Protection | ≥85℃ | |||
| Short Circuit | √ | |||
| Ripple Display | √ | |||
| Impedance of Input Terminal | 300KΩ | |||
| Fuse Specification | 0.5A (110V)/0.25A (220V) | |||
| Communication Interface | RS232 | |||
| Protocol | SCPI | |||
| Data Acquisition Software | √ | |||
| Standard Attachment | Power line | |||
| Power Requirements | 110V±10%/220V±10% Frequency 50/60Hz | |||
| Size mm (Length*Width* Height) | 88W*174.6H*230Dmm | |||
| Net Weight (kg) | 3.59 KG | |||
