UNI-T UT-L21 Multimeter Probes

Description

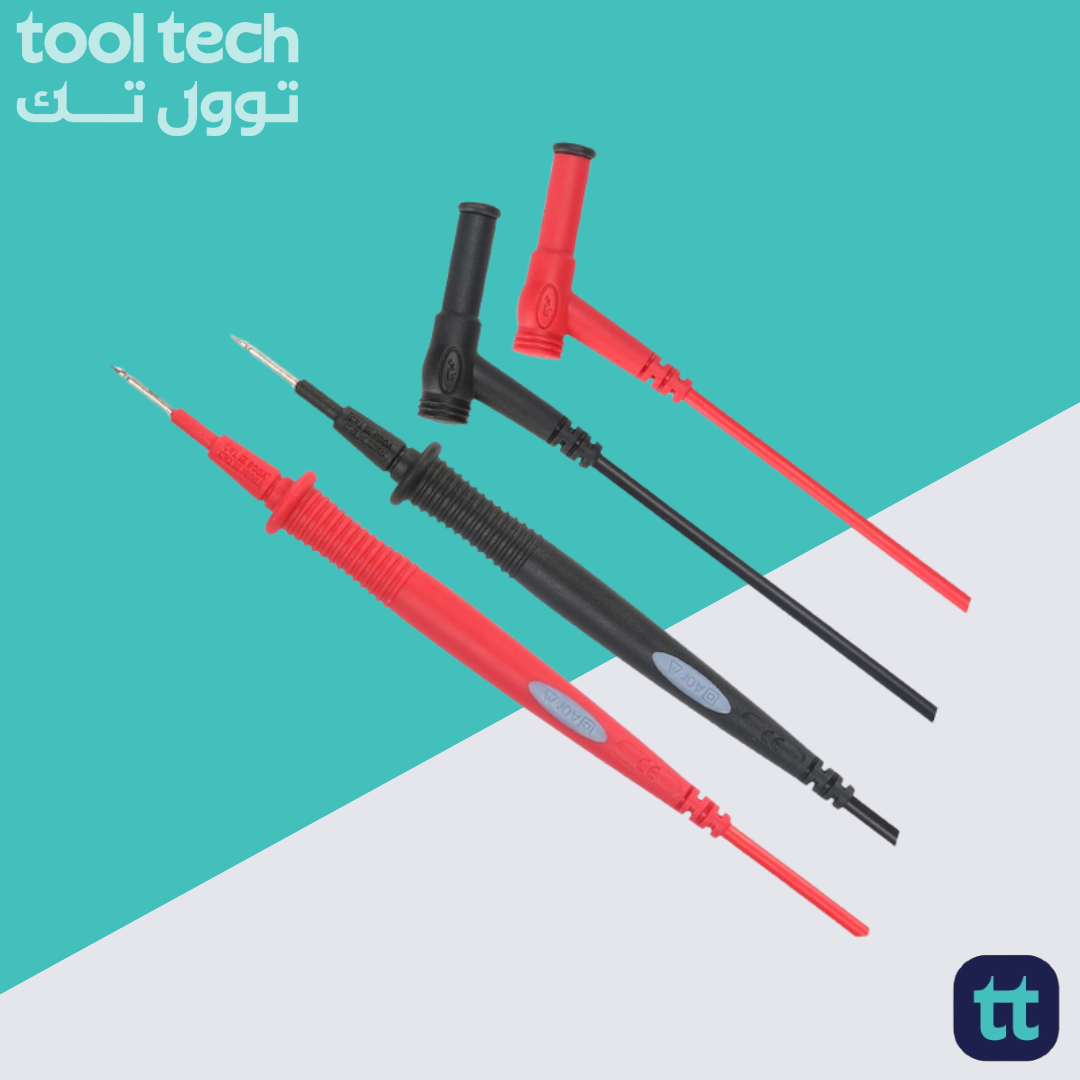

UNI-T UT-L21 Multimeter Probes

The UT-L21 probe pair is built to serve as a reliable link between your multimeter and the circuit under test. With an overall lead length of approximately 900 mm and a probe rod extending around 133 mm, the design gives sufficient reach and flexibility for general-purpose measurement tasks. The tip length (about 15.8 mm) enables good penetration and contact in a variety of situations.

From an ergonomic viewpoint, the UT-L21 probes feature a cross-plug input with a protective shield sleeve, reinforcing safety during connection to equipment. The rod and tip geometry are dimensioned for everyday electronics or electrical use, while the overall build focuses on balancing reach, insulation and usability. The dual leads make it useful for both continuity/voltage checks and more substantive measurement tasks.

When in use, the UT-L21 proves itself as a competent accessory for test benches, field service, and general troubleshooting. The safety rating of CAT III 1000 V / CAT IV 600 V (with 20 A capability) ensures it is capable of more demanding measurement contexts, rather than being restricted to hobby-level environments. It therefore serves as a solid choice for users who need probe reliability and performance without entering the highest specialist tiers.

Features:

• Leads length about 900 mm for extended reach.
• Rod (probe shaft) length approx. 133 mm and tip length approx. 15.8 mm.
• Safety rated to CAT III 1000 V and CAT IV 600 V, up to 20 A current capability.
• Cross-plug input with shield sleeve for protection and compatibility with standard multimeters.
• Double-insulated wire construction (42-core or equivalent) suitable for regular measurement use.

Specifications:

Applications:
