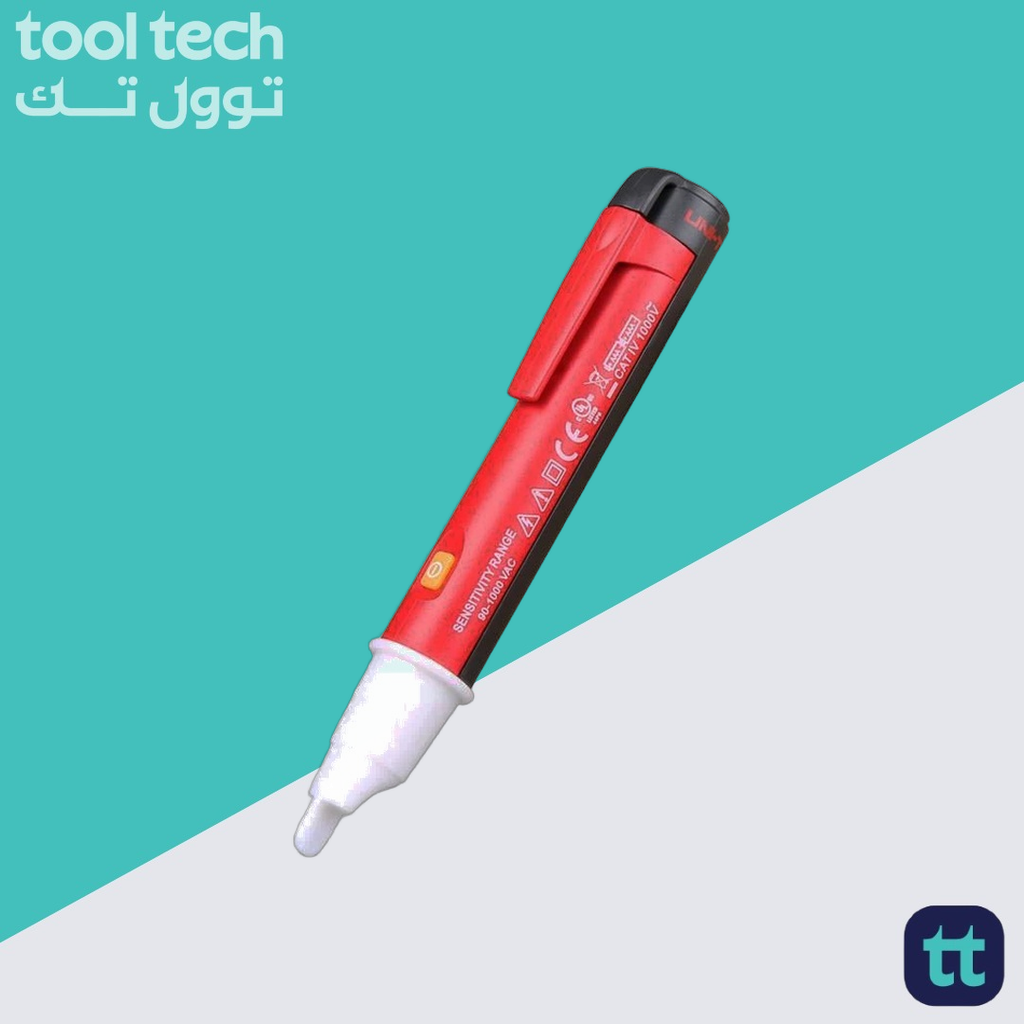

UNI-T UT12A Non-Contact Voltage Detector
The UNI-T UT12A Non-Contact Voltage Detector is a compact AC voltage testing tool designed to help users check the presence of live voltage without direct metal contact. It is part of the UNI-T UT11/UT12/UT13 series, which are lightweight and pocket-sized voltage detectors suitable for easy carrying and quick electrical inspection. The UT12A is intended for detecting AC voltage in cables, sockets, terminals, adapters, and other electrical points.
This voltage detector operates within a voltage range of 90VAC to 1000VAC and alerts the user through both LED indication and beep sound. When the probe tip is placed near a live AC circuit, the flashing LED and audible beep indicate the presence of voltage. The unit is manually operated by pressing and holding the power button, making it simple and direct to use during testing.
The UT12A is built for residential, commercial, and industrial electrical environments. It complies with CAT IV 1000V safety measurement requirements, making it suitable for use around higher-level electrical installations when used correctly. Its slim body, red and grey color design, and battery-powered operation make it practical for technicians, electricians, maintenance workers, and electrical inspection tasks.
Features:
- Non-contact AC voltage detection.
- Voltage detection range from 90VAC to 1000VAC.
- LED indication for voltage presence.
- Beep sound indication for live voltage detection.
- Manual operation using power button.
- Pocket-size and lightweight design.
- Suitable for residential, commercial, and industrial use.
- CAT IV 1000V safety rating.
- Double insulated design.
- Low battery indication below 2V.
- Powered by 2 x 1.5V AAA batteries.
- Easy probe-tip testing near circuits, wires, terminals, and outlets.
Specifications:
| Specification | Value |
|---|---|
| Brand: | UNI-T |
| Model: | UT12A |
| Product Type: | Non-Contact Voltage Detector |
| Detection Type: | AC Voltage Detection |
| Voltage Range: | 90VAC ~ 1000VAC |
| Frequency: | 50Hz / 60Hz |
| Indicators: | LED and Beep |
| Operation: | Manual |
| Auto Power Off: | No |
| Low Battery Indication: | ≤2V |
| Measurement Category: | CAT IV 1000V |
| Safety Standard: | IEC61010 / EN61010-1 / UL61010-1 |
| Pollution Degree: | 2 |
| Operating Temperature: | -10°C to 50°C |
| Storage Temperature: | 10°C to 50°C |
| Humidity: | ≤95% |
| Altitude: | 2000m |
| Power Supply: | 2 x 1.5V AAA batteries |
| Product Color: | Red and Grey |
| Product Net Weight: | 50g |
| Product Size: | 150mm x 20mm |
| Standard Accessories: | Batteries |
| Standard Individual Packing: | Blister, English Manual |
| Standard Quantity Per Carton: | 40pcs |
| Standard Carton Measurement: | 355mm x 240mm x 335mm |
| Standard Carton Gross Weight: | 3.74kg |
Applications:
- Electrical Socket Testing.
- Live Wire Detection.
- Cable Inspection.
- Terminal Block Checking.
- Adapter Voltage Detection.
- Residential Electrical Maintenance.
- Commercial Electrical Inspection.
- Industrial Electrical Troubleshooting.
- Electrician Safety Checking.
- Power Distribution Inspection.
Package Contents:
- 1x UNI-T UT12A Non-Contact Voltage Detector
- 2x 1.5V AAA Batteries
- 1x English Manual
- 1x Blister Packing
