Name: UNI-T UT343D Coating Thickness Gauge
SKU: UT343D
Availability: InStock

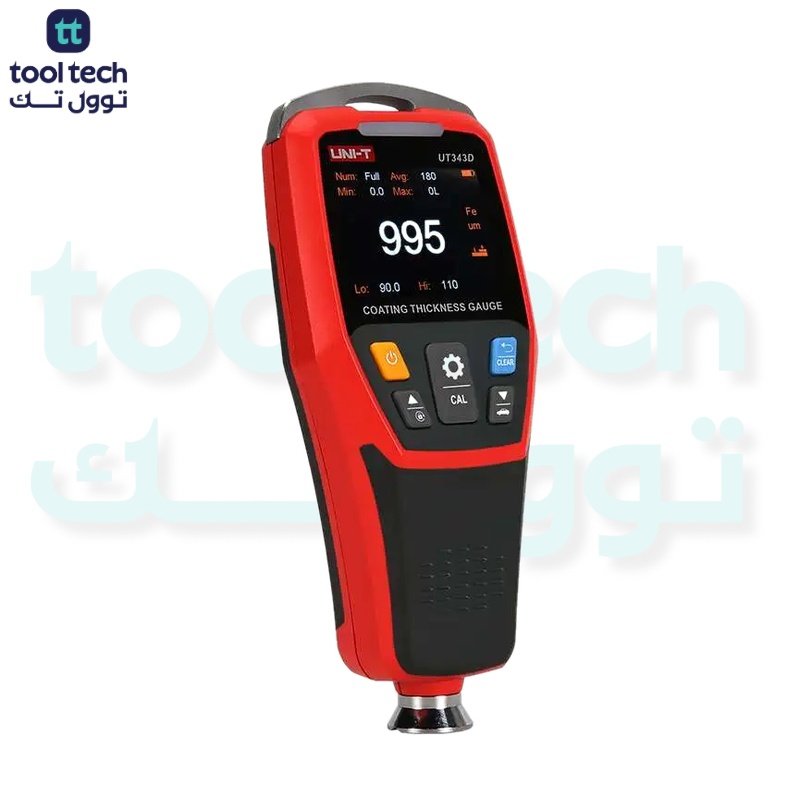

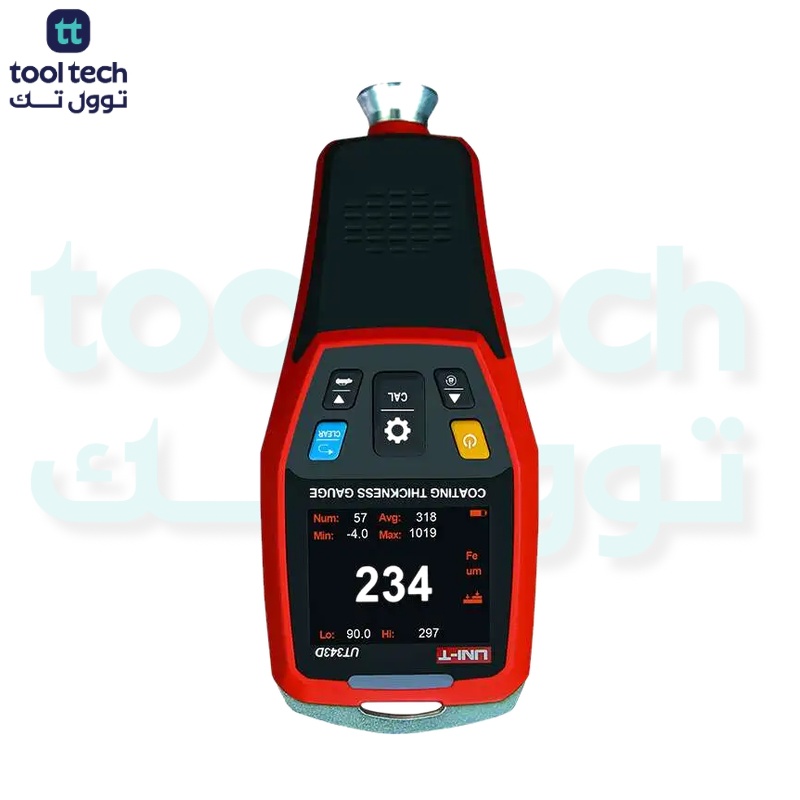

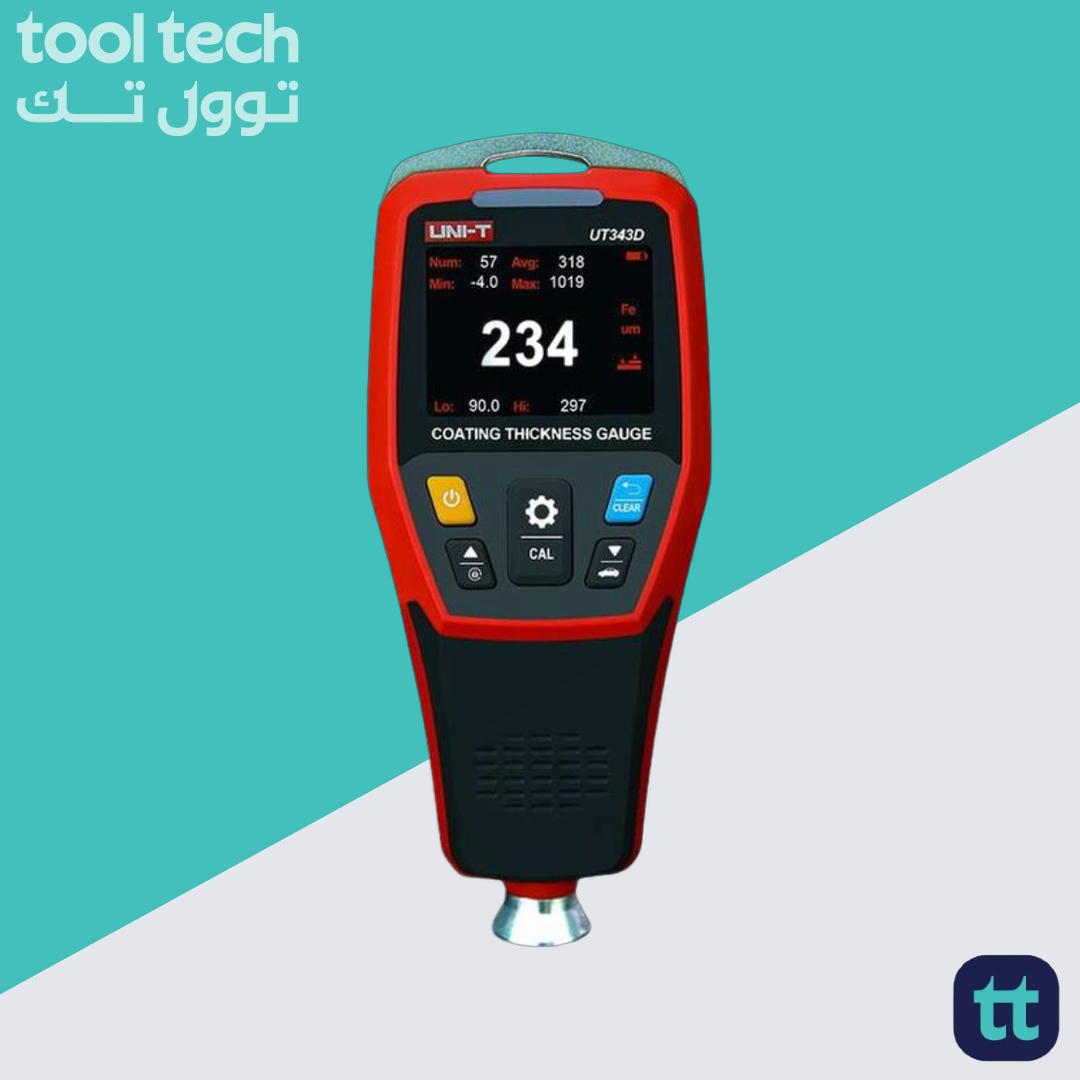

UNI-T UT343D Coating Thickness Gauge

4,300 EGP

UNI-T UT343D Coating Thickness Gauge delivers fast, accurate measurement of paint and coating thickness on both ferrous and non-ferrous metals. With automatic substrate recognition, a clear backlit display, and high repeatability, it’s ideal for automotive inspection, quality control, maintenance, and manufacturing. Compact, durable, and easy to use, the UT343D helps professionals verify coating quality, reduce rework, and ensure reliable results every time.

Description

The UNI-T UT343D Coating Thickness Gauge is a reliable tool designed for measuring the thickness of various coatings on metal substrates, providing accurate readings essential for quality control and maintenance. Its user-friendly interface and clear display make it suitable for both professionals and DIY enthusiasts, allowing for quick assessments in a range of applications, from automotive to industrial settings. With its compact design, the gauge is easy to handle and transport, ensuring that you can conduct measurements wherever needed. The UNI-T UT343D is an essential instrument for anyone looking to ensure the integrity and durability of coated surfaces.

UNI-T UT343D Coating Thickness Gauge

The UNI-T UT343D Coating Thickness Gauge can measure coating thickness on ferrous and non-ferrous materials. This device is designed with a unique quick test feature, which allows users to set thickness range and using a 3-color LED and audio alarm to quickly determine if coating being tested falls within the preset range, greatly increasing work efficiency.

UT343 display is auto rotatable. This CE certified device can store up to 500 sets of data for further analysis through the PC analytical software that is included.

Features

LCD brightness control.
Auto rotatable screen.
Unit conversion.
Audio alarm.
LED alarm.
PC analysis software.
USB communication.
Quick test mode.
Auto power off.
Low battery indication.

Specifications

Specifications	Range
Measuring range	0~1250um
Accuracy	±(3%H+1)um
Resolution	0.1um (0~99.9um); 1um (100~1250um)
Measurement method	Single/Continuous
Measurement mode	Max/Min/Avg
Metal type	Ferrous/ non-ferrous
Features
Display type	2.0-inches TFT LCD (320 x 240 pixels)
LCD brightness control	√
Auto rotatable screen	√
Unit conversion	√
Audio alarm	√
LED alarm	√
PC analysis software	√
USB communication	√
Quick test mode	√
Data storage	500 groups
Auto power off	√
Low battery indication	√
General Characteristics
Power	3V battery (R03) x 2
Display	48mm x 36mm
Product color	Red and grey
Product net weight	175g
Product size	153.5mm x 64.5mm x 41mm

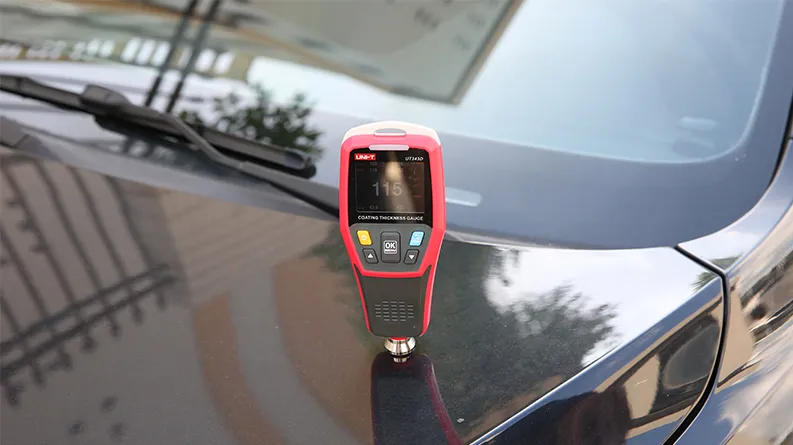

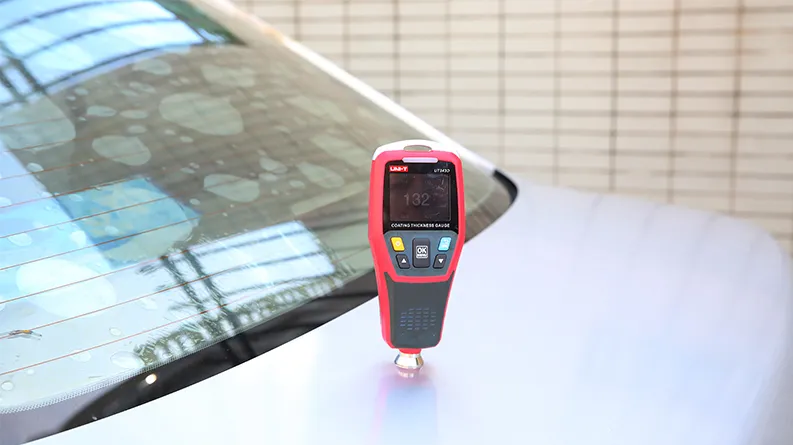

Applications

It is widely used in manufacturing, metal processing, aerospace, marine mechanics, rail transport, scientific research, quality supervision, and other industries.

Package Contents

1x Coating Thickness Gauge (UT343D)
1x User Manual
5x Standard Coating Thickness Sheet(s)
1x Ferrous Substrate Standard Piece
1x Non-ferrous Substrate Standard Piece
1x Sensor Cover
1x Hand Rope (Wrist Strap)
1x USB Cable (Micro USB Interface Cable)
2x AA Alkaline Batteries
1x Cloth Bag (Carrying Bag)
