Name: UNI-T UT343E Coating Thickness Gauge
SKU: UT343E
Availability: InStock

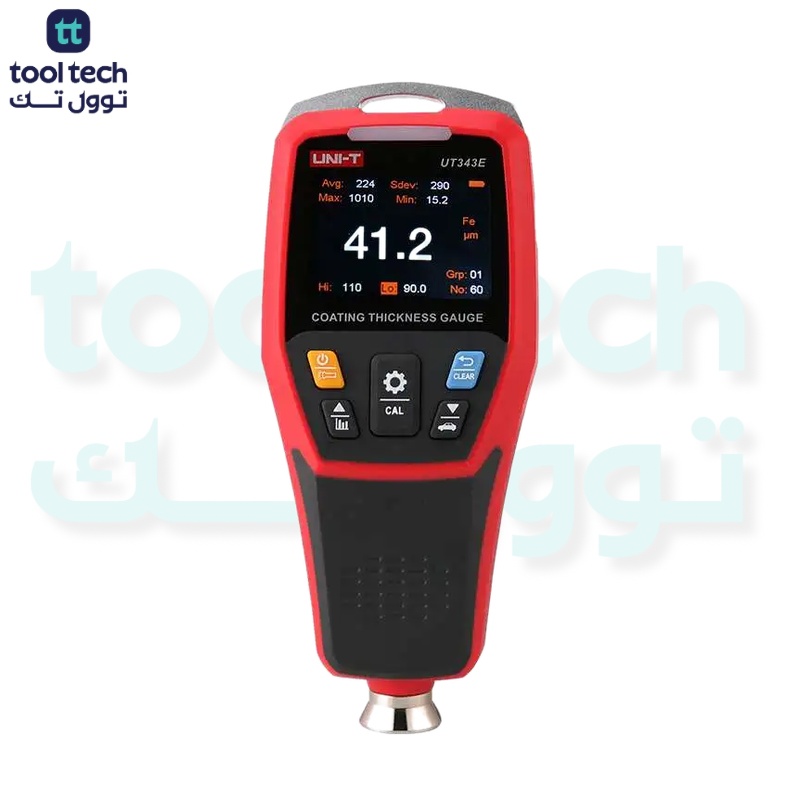

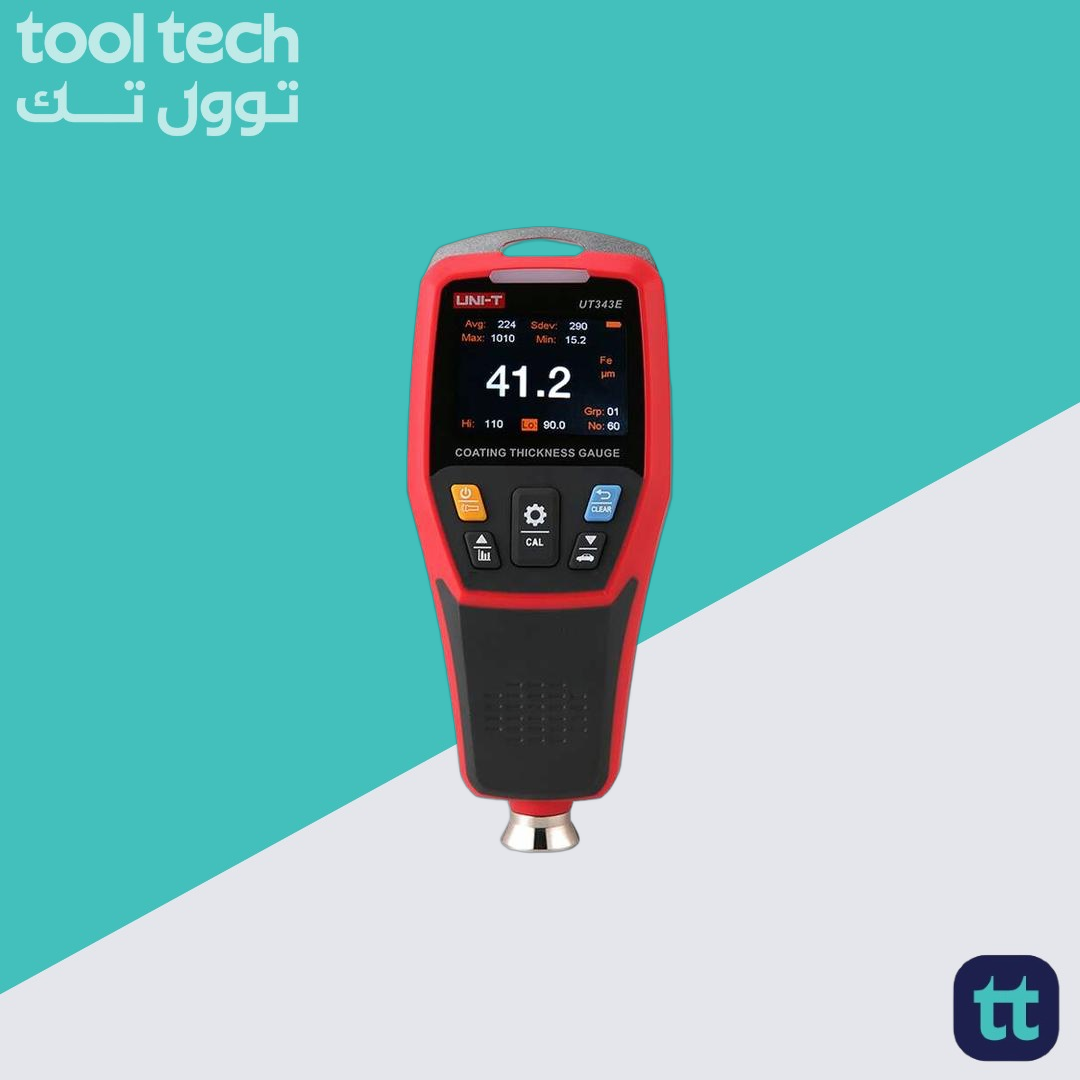

UNI-T UT343E Coating Thickness Gauge

8,500 EGP

UT343E Short Description (SEO-Optimized)

The UT343E coating thickness gauge from UNI-T delivers fast, accurate measurement of paint and coating thickness on both ferrous and non-ferrous metals. Designed for automotive inspection, manufacturing quality control, and maintenance tasks, it features automatic substrate recognition, high precision sensing, and a clear digital display for easy reading. Compact, durable, and user-friendly, the UT343E helps professionals verify coating quality, reduce rework, and improve inspection efficiency with confidence

Description

The UNI-T UT343E Coating Thickness Gauge is a reliable and user-friendly tool designed for measuring the thickness of various coatings on metal and non-metal surfaces. Ideal for professionals in industries such as automotive, manufacturing, and construction, this gauge features a clear display for easy reading and a compact design for convenient handling. With its robust construction and straightforward operation, the UT343E ensures accurate measurements, helping users assess surface quality and ensure compliance with industry standards. Whether for quality control or maintenance purposes, this coating thickness gauge is an essential instrument for precise evaluations.

UNI-T UT343E Coating Thickness Gauge

UT343E coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. The measuring range is up to 2000µm, and the data can be analyzed through Bluetooth APP and PC software of mobile phones, which can be widely used in manufacturing, metal processing, chemical industry, commodity inspection, and other detection areas.

Features

Bluetooth APP
Conductive coating measurement (like chromium, zinc, tin)
Voice broadcast
Durable probe
Automobile mode
Multiple measurement modes
PC software analysis

Specifications

Specification	Range	Thickness	Resolution	Accuracy
Certificates	CE/UKCA
Ferrous and non-ferrous substrates measurement (FE and NFE)	0~2000μm	0~99.9μm	0.1μm	±(2%H+2μm)
		100~2000μm	1μm
	0~78.7mil	0~4.99mil	0.01mil	±(2%H+0.08mil)
		5.0~78.7mil	0.1mil
Bluetooth and App function	√
Probe measuring force	0.3~1.5N
Display	2” color TFT screen
Auto rotatable screen	√
Unit conversion	μm/mil
LED /Audio Alarm	√
Limit setting	0~2000μm
Measurement method	Single/continuous
Statistical measurement	Max/Min/Avg
Matrix identification modes	Auto/manual
Voice broadcast	√
Flashlight	√
USB communication	Upper computer communication
Data storage	3300 data
LCD brightness control	√
Auto power off	5 minutes
Low battery indication	√
Power supply	3.7V 1300mAh Lithium battery
General Characteristics
Power	3.7V 1300mAh Lithium battery
LCD Size	2 inch
Product Color	Red and Gray
Product net weight	150g
Product size	1526535mm

Applications

Manufacturing Industry Inspection.
Metal Processing Industry Quality Control.
Chemical Industry Coating Assessment.
Commodity Inspection and Certification.
Automotive Paint and Film Thickness Measurement.
Conductive Coating Measurement (e.g., chromium, zinc, tin).

Package Contents

1x UT343E Coating Thickness Gauge
1x USB Cable
1x Hand Strap
1x Sensor Protective Cover
1x Ferrous Matrix
1x Non-Ferrous Matrix
6x Stand Coating Thickness Sheets
1x Carrying Bag
1x Gift Box
1x User Manual

Documents

UT343E-User-Manual-English

UT343E-Data-Sheet
