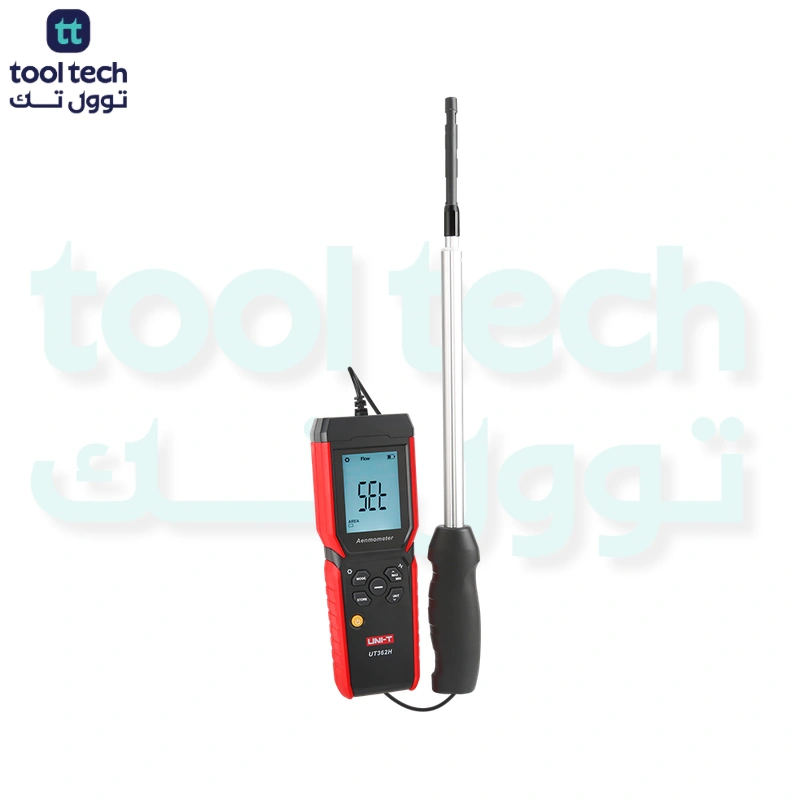

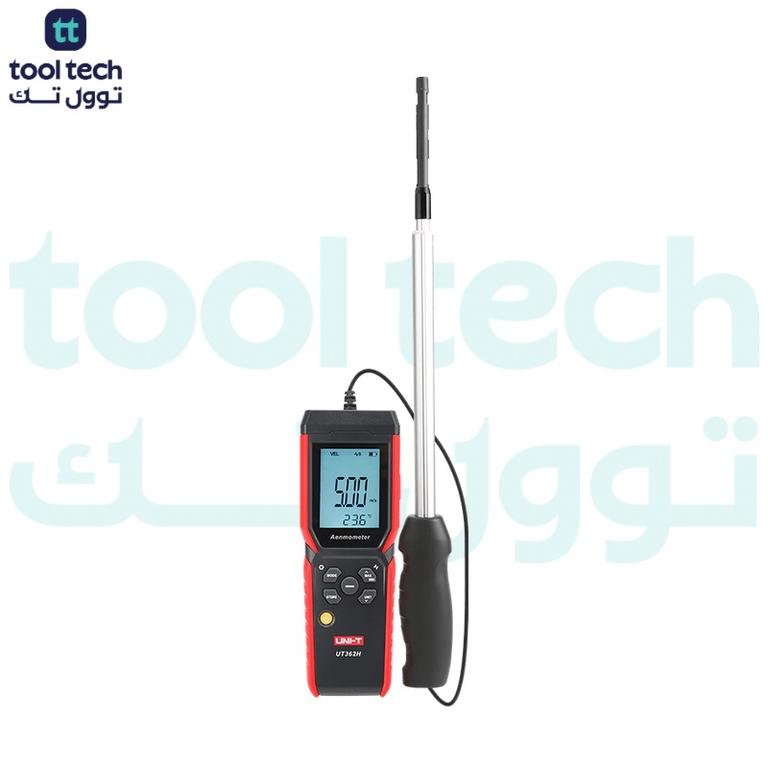

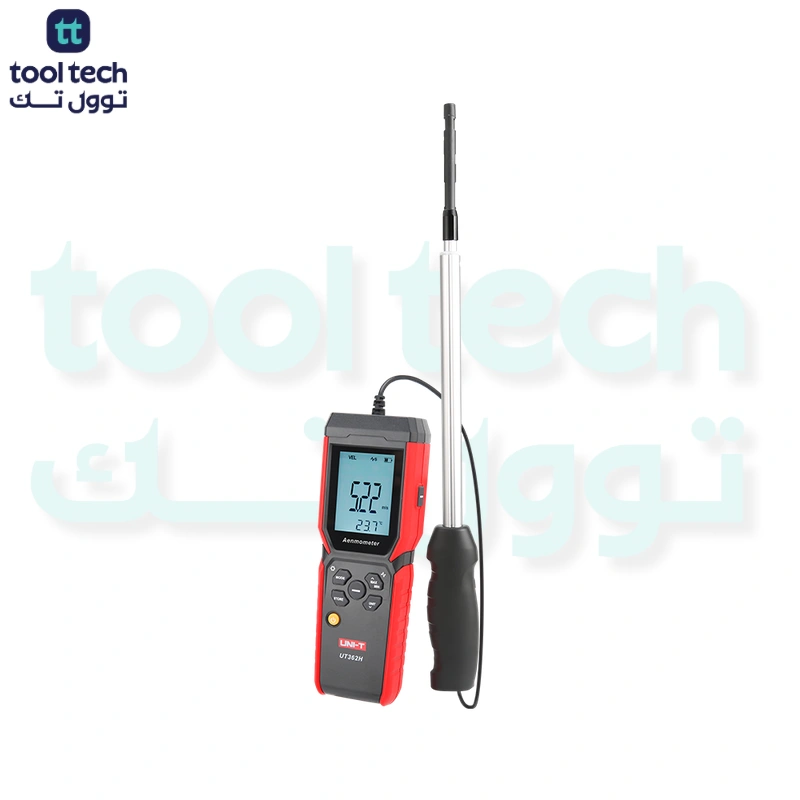

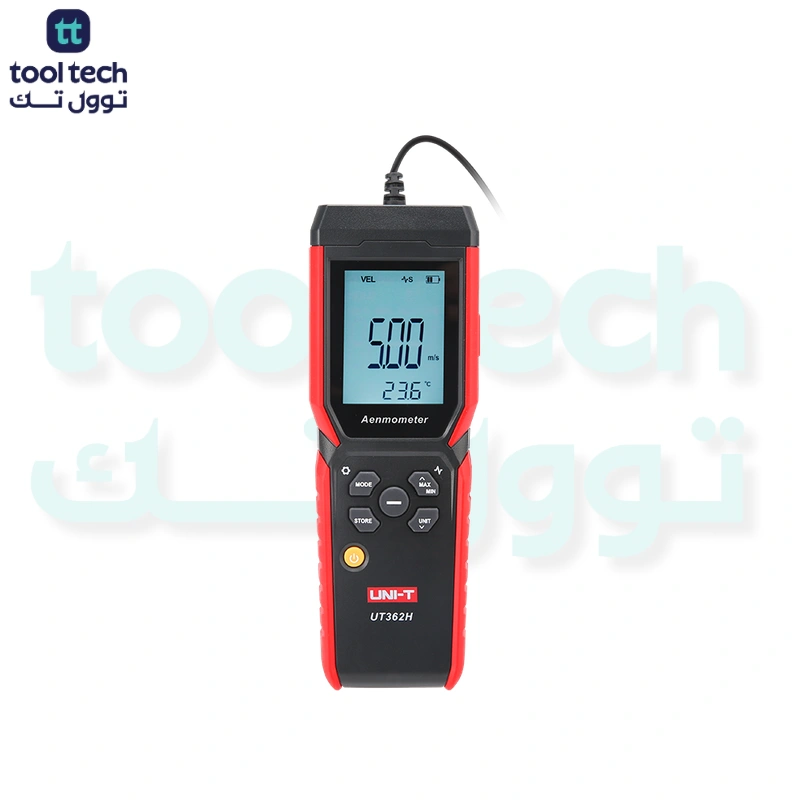

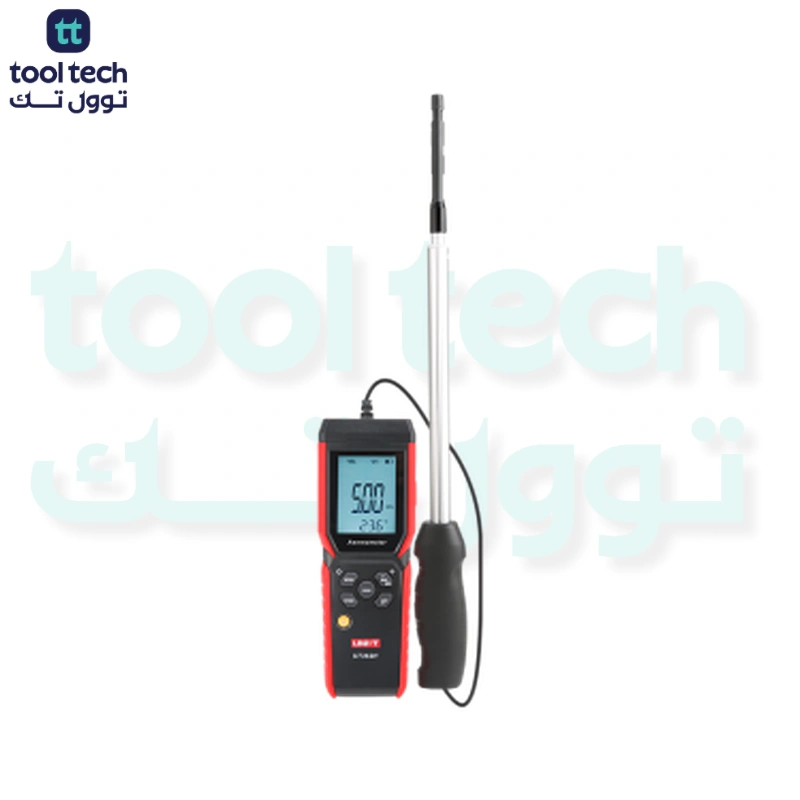

Name: UNI-T UT362H Hot Wire Anemometer
SKU: UT362H
Availability: OutOfStock

UNI-T UT362H Hot Wire Anemometer

9,650 EGP

The UNI-T UT362H Digital Anemometer is a powerful and accurate solution for measuring wind speed, air velocity, and airflow volume. Built for HVAC testing, ventilation systems, and environmental monitoring, it provides fast, stable readings with high precision. With a professional handheld design, clear display, and reliable performance, the UT362H helps technicians improve airflow efficiency, reduce system issues, and get the job done right the first time.

Out of stock

Description

The UNI-T UT362H Hot Wire Anemometer is a reliable instrument designed for accurate measurement of air velocity and temperature in various environments. Featuring a user-friendly interface, this anemometer is ideal for HVAC professionals, engineers, and technicians who require precise airflow readings for system diagnostics and performance evaluations. Its durable construction ensures longevity, while the compact design allows for easy handling and portability. With a clear display and intuitive controls, the UT362H enables users to monitor air movement effectively, making it a valuable tool for optimizing ventilation and ensuring energy efficiency in residential and commercial settings.

UNI-T UT362H Hot Wire Anemometer

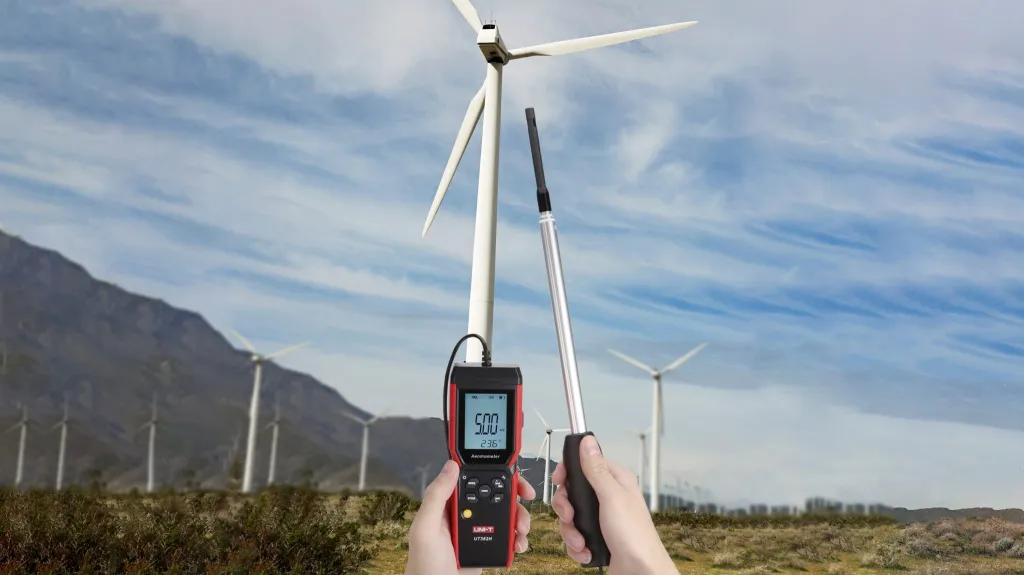

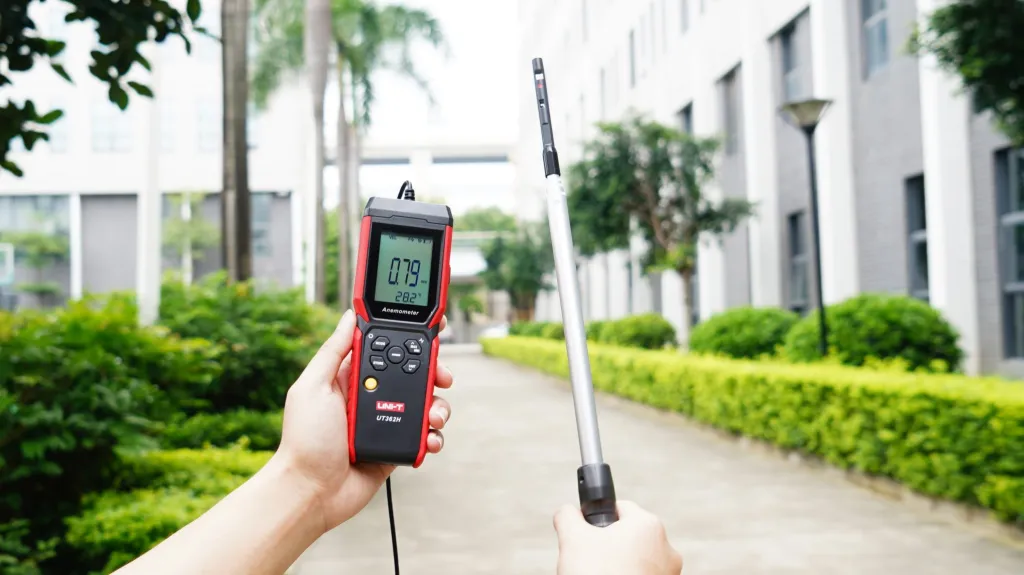

UT362H Hot Wire Anemometer is an ideal choice for measuring wind velocity and wind temperature due to its outstanding stability, security and reliability. It functions auto wind flow calculation and helps users measure and record data no matter in indoor or outdoor measurement.

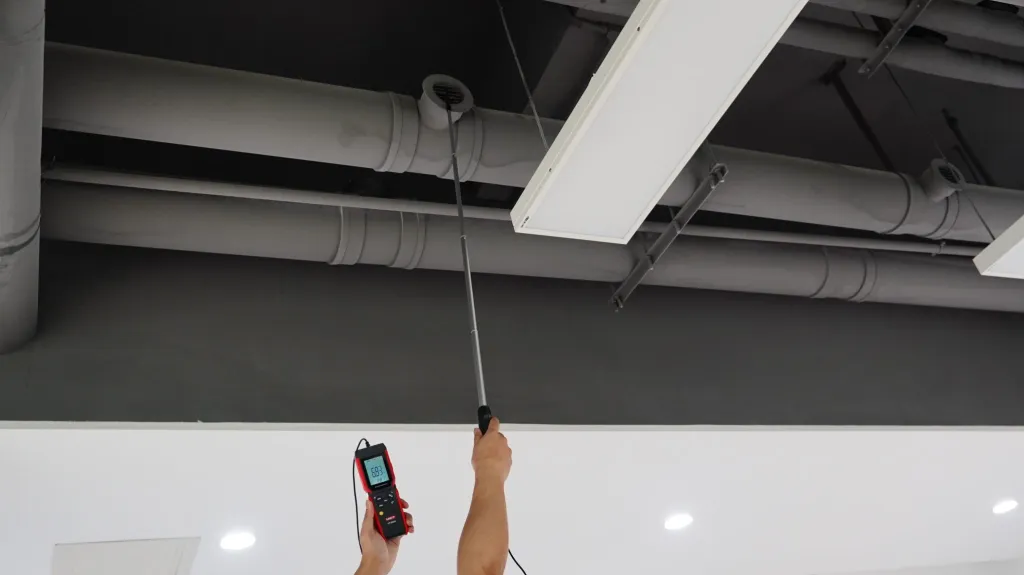

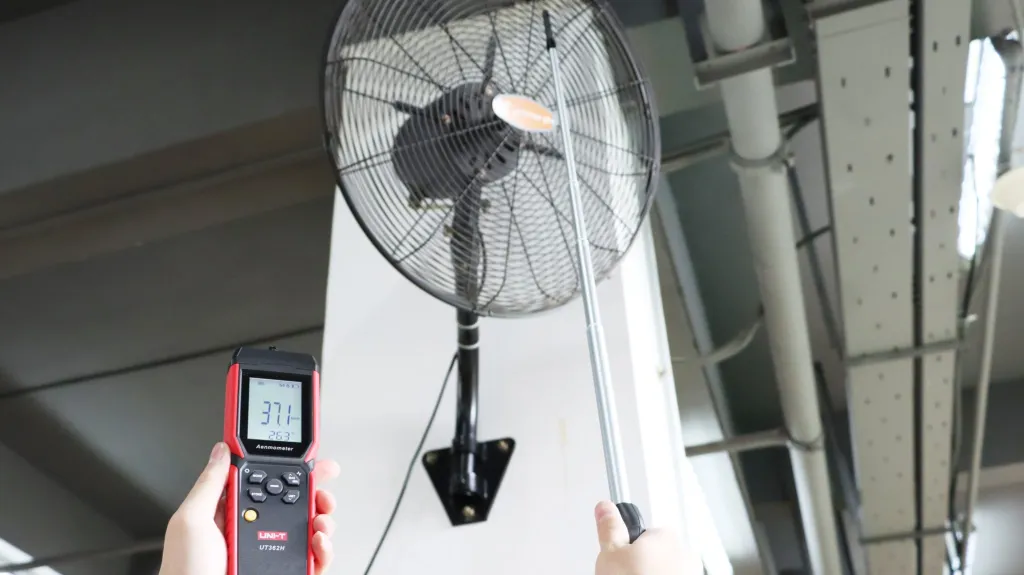

Indoor wind velocity and wind flow measurement can be considered as one of indexes for air quality judgment. Meanwhile, its slender probe rod helps professional HVAC/R personnel measure wind velocity inside ventilation pipe easily.

The Hot Wire Anemometer’s advantages are not only above mentioned, so are the applications, widely used in the fields of Electric Power, Navigation, Fan Manufacturing, Air Conditioning System, Sports and etc.

Features

Split design.
Retractable rod in aluminum alloy.
Platinum resistance sensor.
99 sets of data storage.
Wind velocity/volume/temperature measurement.
Low wind measurement.

Specifications

Functions	Range	Accuracy	Resolution
Wind Velocity Measurement	0～30.0m/s	±（4% of reading +0.1m/s）	0～9.99：0.01 10.0～999.9：0.1 1000~9999：1
	0～108.0km/h	±(4% of reading +0.4km/h)
	0～58.3knots	±(4% of reading+0.2knots)
	0～5906fpm	±(4% of reading+20fpm)
	0～67.1mph	±(4% of reading+0.3mph)
	0～11bft	±1 bft	1
Wind Flow(Volume) Measurement	0～999900m³/min	/	0.001~100
	0～999900CFM
	0～999900L/s
Wind Temperature Measurement	0℃～40℃	±0.5℃	0.1
	-20～0℃ or 40～70℃	±0.8℃	0.1
	32～104℉	±0.9℉	0.1
	-4～32℉ or 104～158℉	±1.5℉	0.1
Wind Pipe Forms	Circular, Rectangular, Area
Sectional Area Setting	Circular (Set the diameter)
	Rectangular (Set the width and height)
Units	Sectional area		㎡, ft²
	Wind flow		m³/min, CFM, L/s
	Wind velocity		m/s, km/h, fpm, mph, knots, bft
	Wind temperature		℃/℉
Power-on Warm-up Time	5s
Measuring Mode for Wind Velocity	Fast or Slow
Sampling Time	0.5s
Data Hold	√
Overload Indication	√
Statistical measurement	√ (MAX/MIN/Timing Mean/Multipoint Mean)
Data Storage	99 sets
LCD Backlight	√
Auto Power Off	Auto shutdown in 5 minutes when no any operation (cancelable)
Flexible Probe Length	120cm
Low Battery Indication	√
Operating Temperature and Humidity	0~40℃, ≤80%RH
Storage Temperature and Humidity	-20~60℃, ≤80%RH
Characteristics
Battery	1.5V (AAA)*3pcs
Product Size	180.3×63.0×40.1mm (Only the machine body)
Product Net Weight	About 312g, not battery included

Applications

HVAC System Testing and Troubleshooting.
Indoor Air Quality Monitoring.
Industrial Ventilation and Exhaust System Assessment.
Environmental and Research Analysis.
Navigation and Maritime Use.
Fan Manufacturing and Performance Testing.
Sports and Athletics Environmental Monitoring.
Electric Power Industry Applications.
Measuring Wind Velocity Inside Ventilation Pipes.
Indoor/Outdoor Wind Velocity and Flow Measurement for Air Quality Judgment.

Package Contents

1x UT362H Hot Wire Anemometer
1x Gift Box/Packaging
1x Quick Start Guide
1x Safety Instruction Manual
1x Cloth Bag
3x AAA Alkaline Batteries

Documents

UT362H-Data-Sheet

UT362H-Quick-Start-Guide-Multilingual
