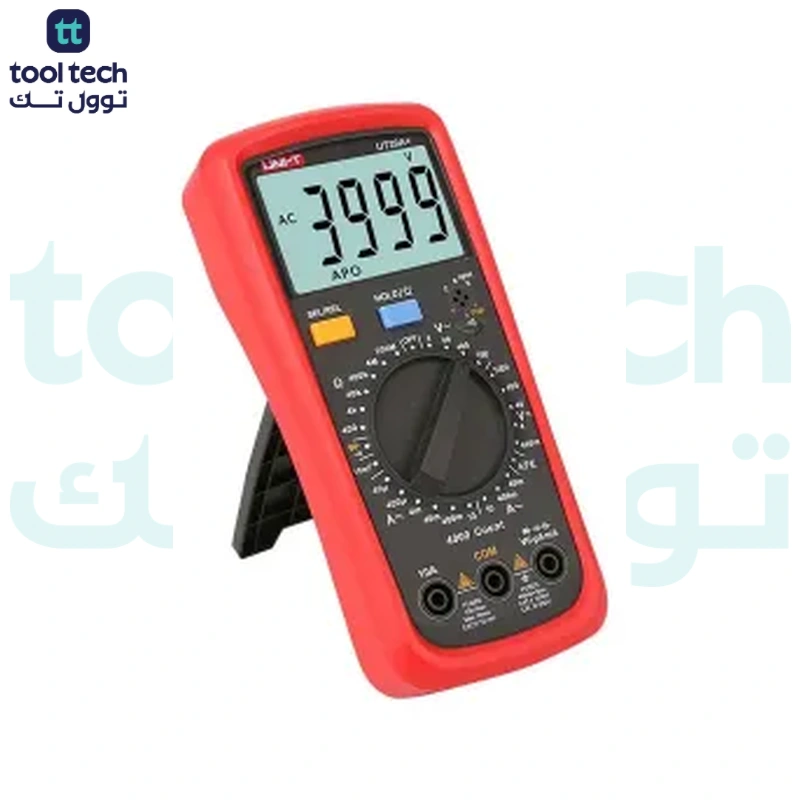

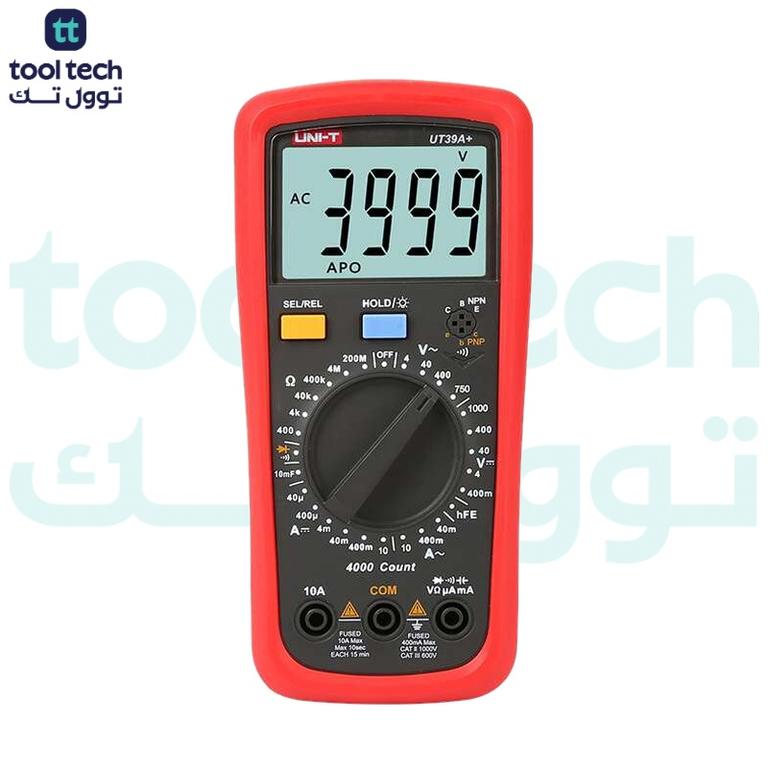

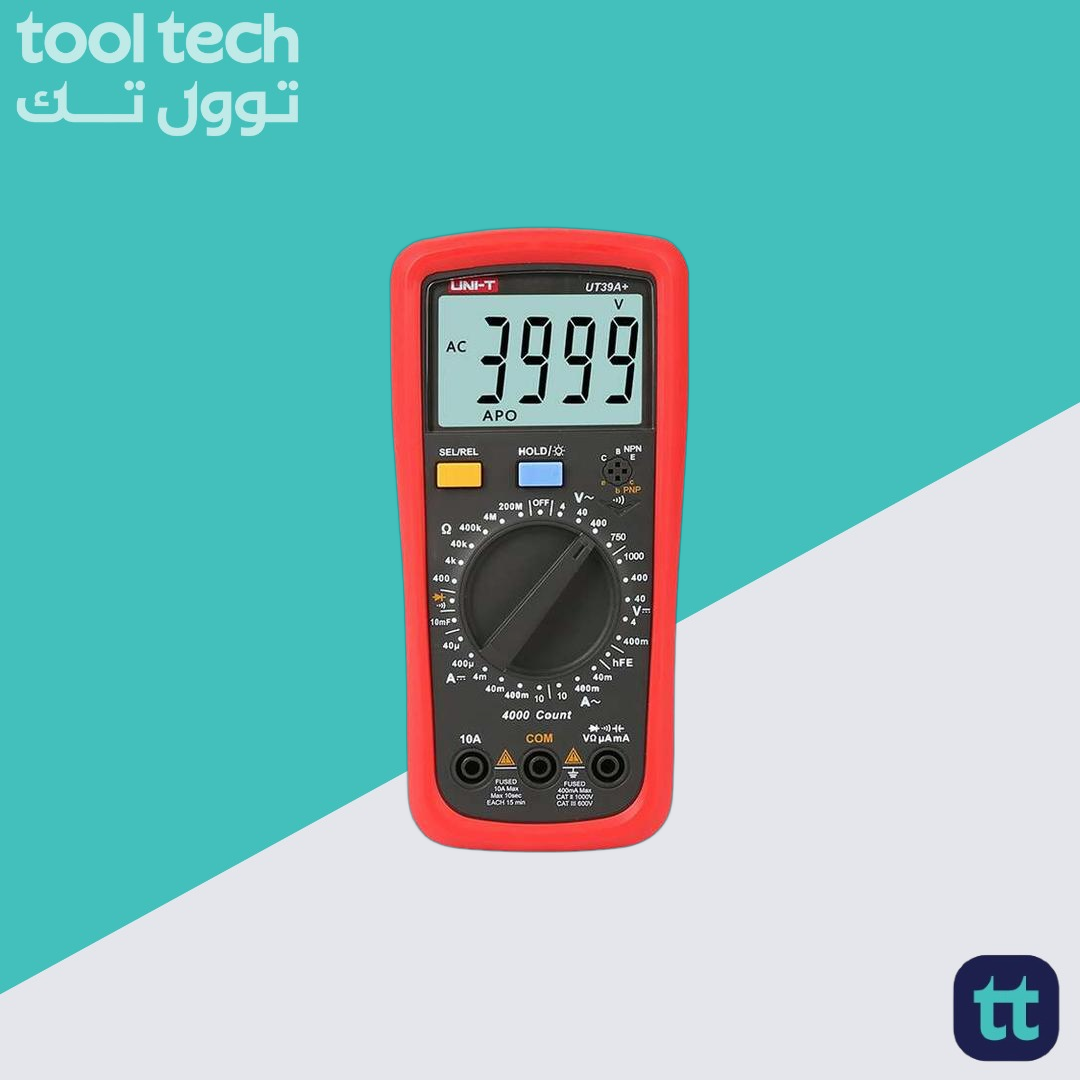

Name: UNI-T UT39A+ Modern Digital Multimeter
SKU: UT39A
Availability: InStock

UNI-T UT39A+ Modern Digital Multimeter

725 EGP

UT39A+ is a portable multimeter designed for electric industry, it has overvoltage and overcurrent alarm functions, and high voltage protection.

Description

The UNI-T UT39A+ Modern Digital Multimeter is a versatile and reliable tool designed for both professionals and hobbyists in the electrical field. Featuring a clear digital display, this multimeter allows for easy reading of measurements, including voltage, current, and resistance. Its compact design ensures portability, while the user-friendly interface simplifies operation, making it suitable for a variety of applications from troubleshooting electrical circuits to performing routine maintenance. Built with durability in mind, the UNI-T UT39A+ is an essential instrument for anyone looking to achieve accurate and efficient measurements in their work.

UNI-T UT39A+ Modern Digital Multimeter

UT39+ series modern digital multimeters are portable devices designed for the electrical industry. They feature overvoltage and overcurrent alarms and high voltage protection, triggered during faulty operation.

Features:

1000V DC voltage measurement
750V AC voltage measurement
10A DC/AC current measurement
Resistance/Capacitance
hFE
Diode/Continuity test

Specifications:

Specifications	Range	UT39A+
DC voltage (V)	400mV/4V/40V/400V/1000V	±(0.5%+5)
AC voltage (V)	4V/40V/400V/750V	±(0.8%+3)
DC current (A)	40μA/400μA/4mA/40mA/400mA/10A	±(0.8%+3)
AC current (A)	40mA/400mA/10A	±(1%+2)
Resistance (Ω)	400Ω/4000Ω/40kΩ/400kΩ/4MΩ/200MΩ	±(0.8%+2)
Capacitance (F)	10mF	±(4%+5)
Display count		4000
General Characteristics
Power	1.5V battery (R03) x 2
Display	56.5mm x 36mm
Product net weight	330g
Product size	175mm x 83mm x 53mm

Applications:

General Electrical and Electronic Measurements.
Household Appliance Testing.
Automotive Circuit Diagnostics.
Industrial Equipment Maintenance.
Educational and Laboratory Use.
Continuity and Diode Testing.
Battery Voltage Checking.
AC/DC Voltage and Current Measurement.

Package Contents:

1x UT39A+ Multimeter main unit
1x Test leads
1x User manual
1x 9V battery (6F22) (pre-installed or included)
1x Protective holster

Documents:

Datasheet
User Manual
