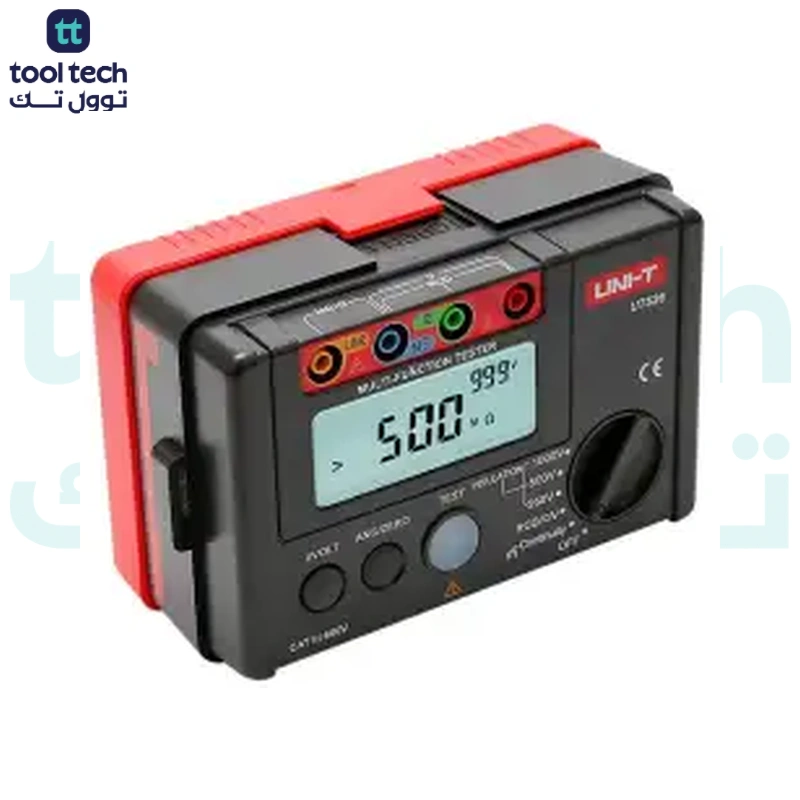

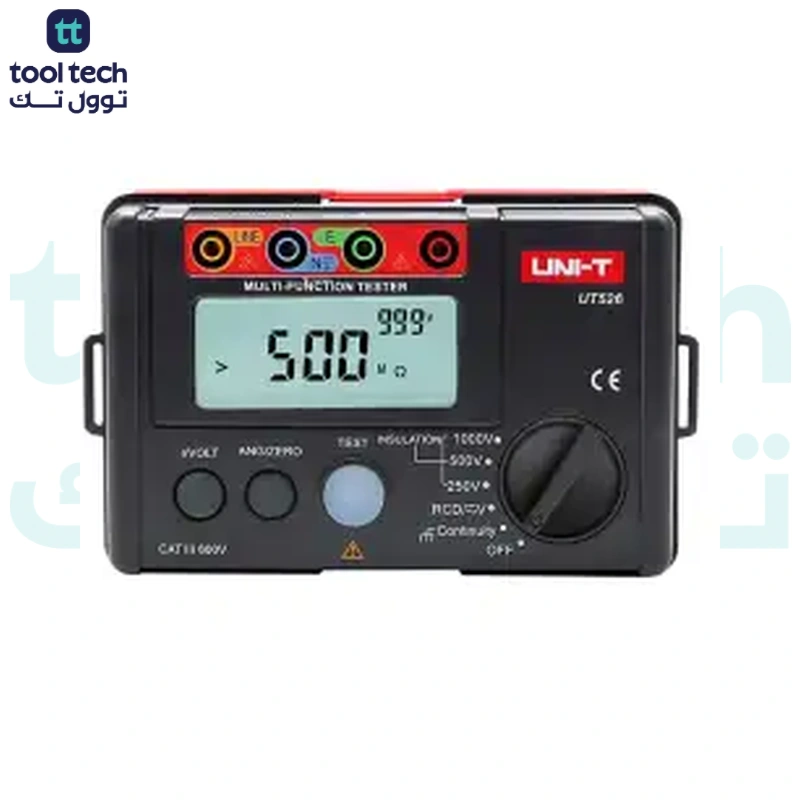

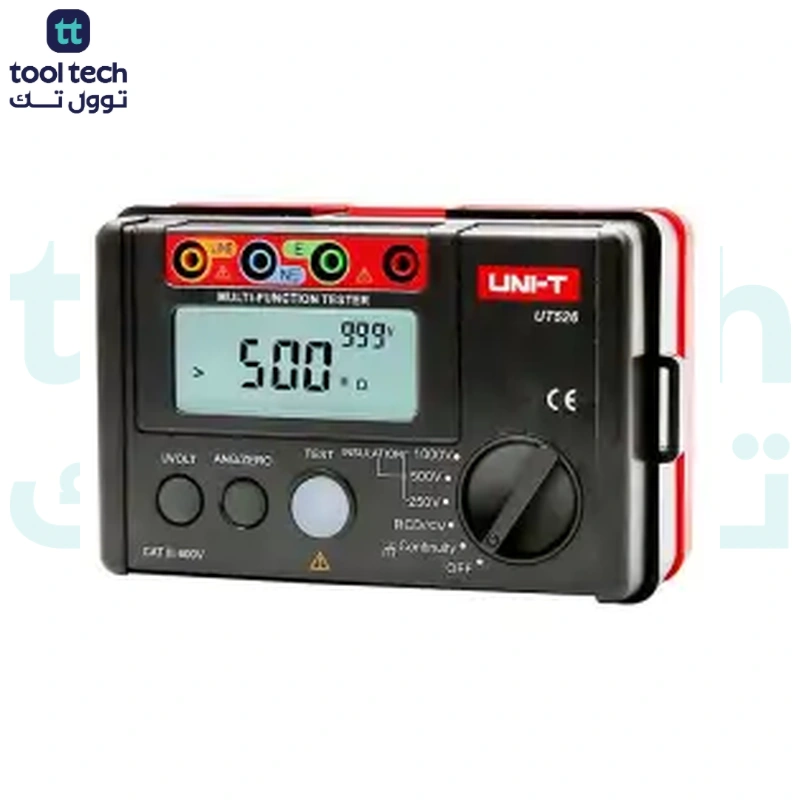

UNI-T UT526 Multifunction Electrical Meter

7,800 EGP

The UNI-T UT526 Insulation Resistance Tester is a reliable and efficient tool for testing insulation safety in electrical installations and equipment. It delivers accurate insulation resistance measurements to help identify faults in cables, motors, and power systems. Ideal for electricians, maintenance teams, and industrial applications, the UT526 combines easy operation, stable performance, and dependable results—making it a smart choice for ensuring electrical safety and preventive maintenance.

Add to wishlist

Add to wishlist

SKU: UT526 Categories: Electrical Testers, Measuring Instruments, UNI-T Tags: electrical tools, electronics testing, measurement tools, test equipment, uni-t

Description

Description

The UNI-T UT526 Multifunction Electrical Meter is a versatile tool designed for both professionals and DIY enthusiasts, offering a range of functionalities to measure voltage, current, resistance, and more. Its user-friendly interface features a clear display that allows for easy readings, while its compact design ensures portability and convenience in various work environments. Built with durability in mind, this meter is suitable for a wide array of electrical applications, making it an essential addition to any toolkit. Whether you’re troubleshooting circuits or conducting routine maintenance, the UNI-T UT526 provides reliable performance to help you achieve accurate results.

UNI-T UT526 Multifunction Electrical Meter

UNI-T UT526 Multifunction Electrical Meter

UT526 is a multifunctional electrical installation tester. It can be used to test insulation resistance, RCD status, low resistance continuity, and voltage measurements. UT526 can be used to test power distribution systems, lightning protection system’s and wiring systems to ensure safe operations.

Features:

Display count: 10000
Manual range
Phase switch (RCD): 0°and 180°
Low battery indication
Auto AC/DC voltage identification
Red warning lights

Specifications:

Specifications		Range	UT526
Insulation resistance (Ω)	Test voltages	250V/500V/1000V	±10%
	250V	0.05MΩ~200MΩ	±(5%+5)
	500V	0.05MΩ~300MΩ	±(5%+5)
	1000V	0.05MΩ~500MΩ	±(5%+5)
	Load current	250V (R=250kΩ) 1mA	±10%
		500V (R=500kΩ) 1mA	±10%
		1000V (R=1MΩ) 1mA	±10%
	Short circuit current	<2mA	√
RCD	Operating voltage (Freq.)	220V (45Hz~65Hz)	±10%
	Test current	10mA/30mA/100mA/300mA	0~20%
	Trip time	0ms~2000ms, 1Δn general (10mA)	±(5%+2)
		0ms~500ms, 1Δn general
		0ms~300ms, 1Δn general (100mA, 300mA)
Low resistance continuity	Range	0Ω~2000Ω	±(2%+5)
	Test voltage	Around 5V	√
	Test current	>200mA (R<2Ω)	√
Voltage measurement (V)	DC voltage	0~440V	±(5%+2)
	AC voltage	0~440V	±(5%+2)
	Frequency (For reference only)		√
Features
Display count			10000
Manual range			√
Phase switch (RCD)	0°and 180°		√
Low battery indication			√
Auto AC/DC voltage identification			√
Red warning lights			√
General Characteristics
Power	1.5V battery (LR6) x 6
Display	71mm x 34mm
Product Color	Red and grey
Product net weight	380g
Product size	160mm x 100mm x 71mm

Applications:

Testing Power Distribution Systems.
Testing Lightning Protection Systems.
Testing Wiring Systems.
Measuring Insulation and Continuity for RCD in Equipment.
Insulation Resistance Testing.
RCD Status Testing.
Low Resistance Continuity Testing.
AC/DC Voltage Measurements.

UT526 application 1

UT526 application 2

UT526 application 3

UT526 application 4

Package Contents:

1x UT526 Multifunction Electrical Meter
6x 1.5V Alkaline Batteries (LR6/AA)
1x Carrying Bag
1x Gallus (Shoulder Strap)
1x Test Leads
1x Alligator Clips
1x Test Line (Auxiliary Test Lead)
1x Gift/Packaging Box
1x English User Manual

Documents:

Datasheet
User Manual
