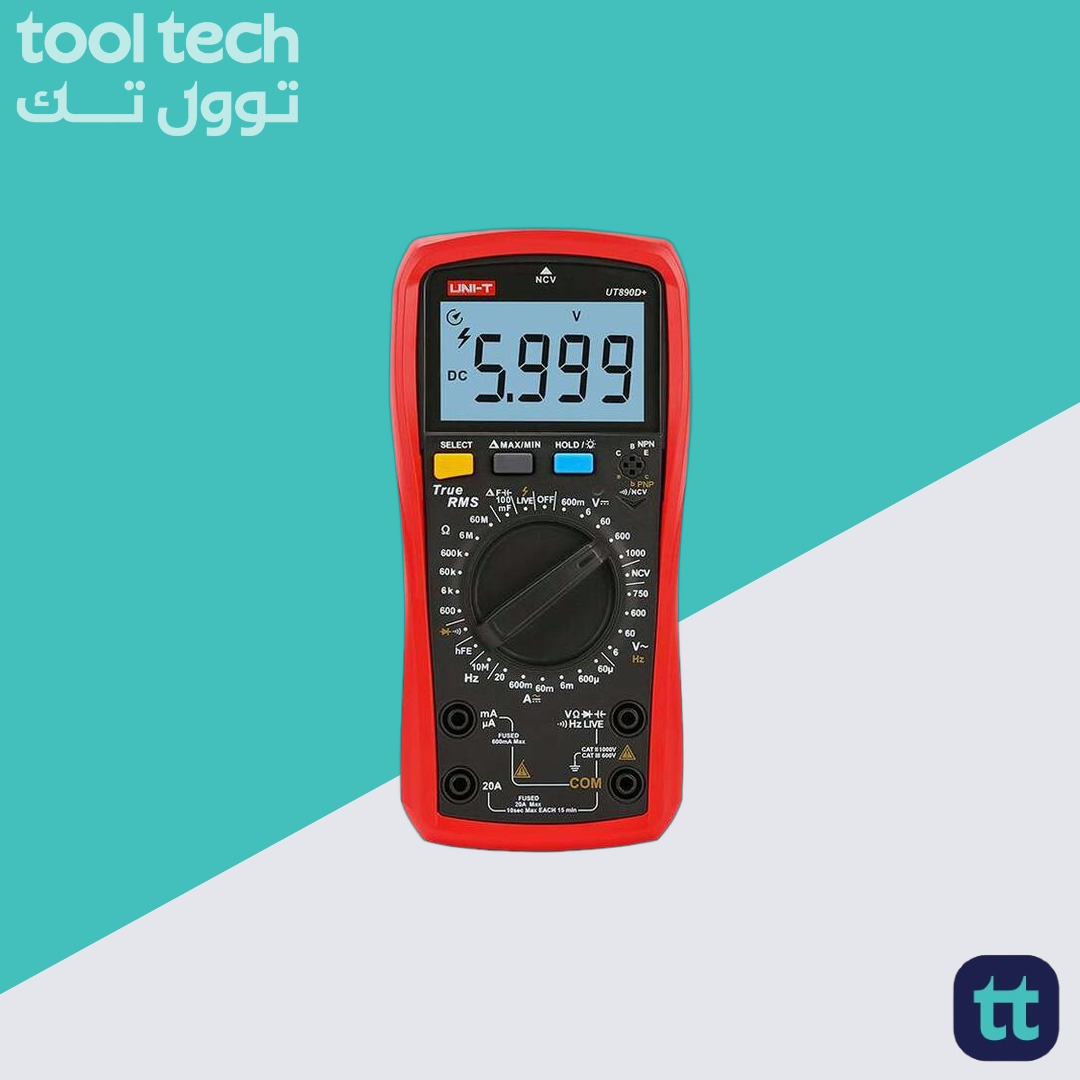

UNI-T UT890D+ Digital Multimeter

850 EGP

The UNI-T UT890D+ Digital Multimeter is a powerful and reliable instrument designed for professional electrical testing and troubleshooting. It delivers accurate measurements of voltage, current, resistance, continuity, and more, making it ideal for industrial maintenance, electrical installations, and advanced diagnostics. With a clear display, fast response, and durable handheld design, the UT890D+ helps technicians work safely, detect faults quickly, and achieve precise results every time.

Add to wishlist

Add to wishlist

SKU: UT890D Categories: Digital Multimeters & Data Logging, Measuring Instruments, UNI-T Tags: digital multimeter, electrical testing, electronics measurement, uni-t, voltage meter

Description

Description

The UNI-T UT890D+ Digital Multimeter is a versatile and reliable tool designed for both professionals and hobbyists in the electrical field. Featuring a clear LCD display, this multimeter allows for easy readings of voltage, current, and resistance, making it suitable for a wide range of applications, from basic household tasks to more complex electrical diagnostics. Its user-friendly interface, along with a durable construction, ensures that it can withstand regular use while providing accurate measurements. Whether you are troubleshooting circuits or performing routine maintenance, the UNI-T UT890D+ is an essential instrument that combines functionality with ease of use.

UNI-T UT890D+ Digital Multimeter

UNI-T UT890D+ Digital Multimeter

The UT890 series 6000-count true RMS digital multimeters are designed with large LCD display. The maximum measurable capacitance is 100mF, with fast response time of less than 12s. The NCV and continuity measurement have acousto-optic indications. UT890D+ has a LIVE function for distinguishing between live and neutral wires. In addition, it is equipped with the automatic fuse blown detection and high voltage protection.

Features:

Manual range/True RMS
Data hold/REL
Audible/visual alarm (NCV/continuity)
Current (AC/DC) mode memory
Low battery indication: ≤2.5V
NCV/hFE/Max/Min
Diode test/Continuity test
High voltage false detection: 1000Vrms
Over-current alarm: ≥20A
Auto power off/LCD backlight

Specifications:

Specification	Range	UT890D+
DC Voltage	600mV/6V/60V/600V/1000V	±(0.5%+2)
AC Voltage	6V/60V/600V/750V	±(0.8%+3)
ACV Frequency	10Hz～10kHz	±（0.1%+5)
DC Current	60uA//600uA/6mA/60mA/600mA/20A	±(0.8%+8)
AC Current	60uA/600uA/6mA/60mA/600mA/20A	±(1%+12)
Resistance	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ	±(0.8%+3)
Capacitor	6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/ 600.0μF/6.000mF/60.00mF/100.0mF	±(3%+10)
Frequency	9.999Hz～9.999MHz	±(1.0%+5)
Features
Display Count		6000
Manual Range		√
NCV		√
hFE		√
Diode Test		√
Continuity Test		√
Live		√
True RMS		√
Fuse blowing alarm		√
Acousto-optic indication(NCV/continuity)		√
High voltage false detection	1000Vrms	√
Current (AC/DC) mode memory		√
Over-current alarm	≥20A	√
Low Battery Indication	≤2.5V	√
Data Hold		√
REL		√
Max/Min	V 、A	√
Auto Power Off	15Min	√
Back light	30s	√
General Characteristics
Power	1.5V x 2
Product color	Red and Gray
Product Net Weight	346g
Product Size	183mm x 88mm x 56mm

Applications:

Electrical switchboards.
HVAC systems.
Electrical circuit faults detection.
Installation or maintenance of electronics/factory equipment.
Electronics component development, circuit board design.
Users who need to distinguish between neutral/live wire frequently.

Package Contents:

1x unit UNI-T UT890D+ Digital Multimeter
1x pair Test Leads (Red and Black)
1x pair Alligator Clips (Red and Black)
1x 9V Battery
1x User Manual
1x pouch Carrying Pouch
1x Temperature Probe
