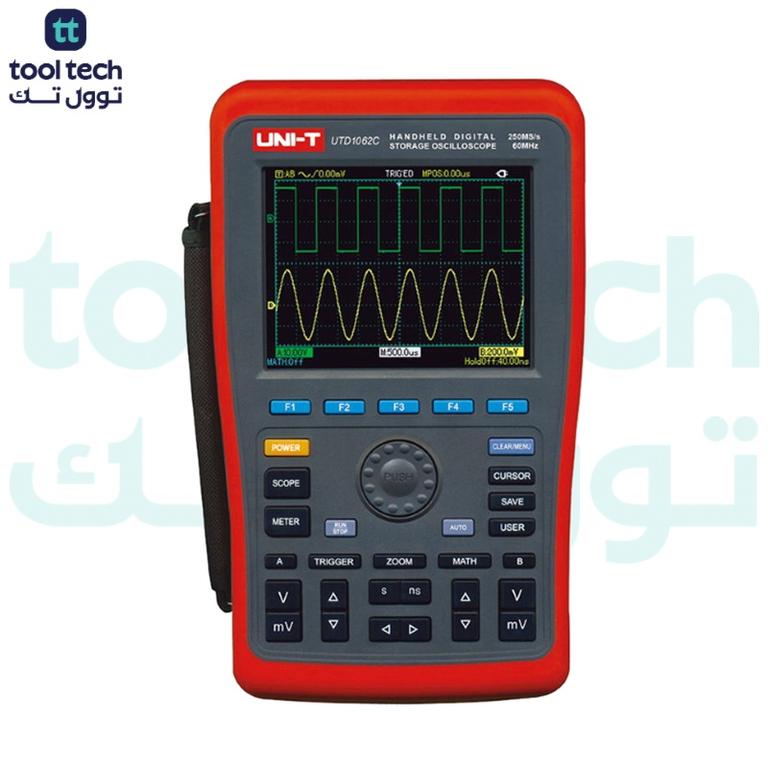

The UNI‑T UTD1062C is a compact, dual‑channel handheld digital storage oscilloscope engineered for both field service and laboratory environments. Sporting a vibrant 5.7″ color LCD with 320×240‑pixel resolution, it delivers clear waveform visibility even under bright lights. Its user‑friendly front panel mimics traditional bench instruments, featuring a jog dial and dedicated buttons for rapid access to vertical, horizontal, and trigger controls, minimizing learning curve and maximizing productivity.

The AUTO key instantly adjusts vertical sensitivity and time base for stable captures, while dedicated menus guide through advanced setups like cursors, FFT, and math functions. With a 60 MHz analog bandwidth and 250 MS/s real‑time sampling rate, the UTD1062C accurately reproduces most common signals. A deep 2×512 k‑point memory enables detailed zoom and post‑capture analysis. USB Host/Device ports allow screen captures and waveform storage (10 internal + 10 USB slots), and built‑in waveform recording can archive up to 1,000 screens.

Additional conveniences include automatic measurements of 27 waveform parameters, fine window extension, and both edge and pulse‑width triggering. Its robust battery operation (≈3 h) and rugged housing ensure reliable performance on‑the‑go a versatile tool for service technicians and engineers alike.
