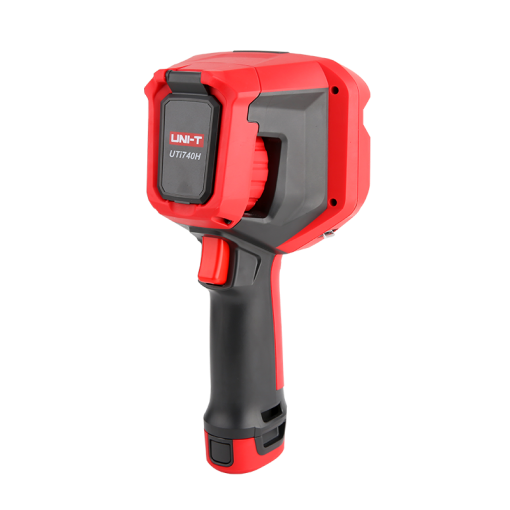

Name: UNI-T UTi740H Thermal Imager Camera
SKU: UTI740H
Availability: InStock

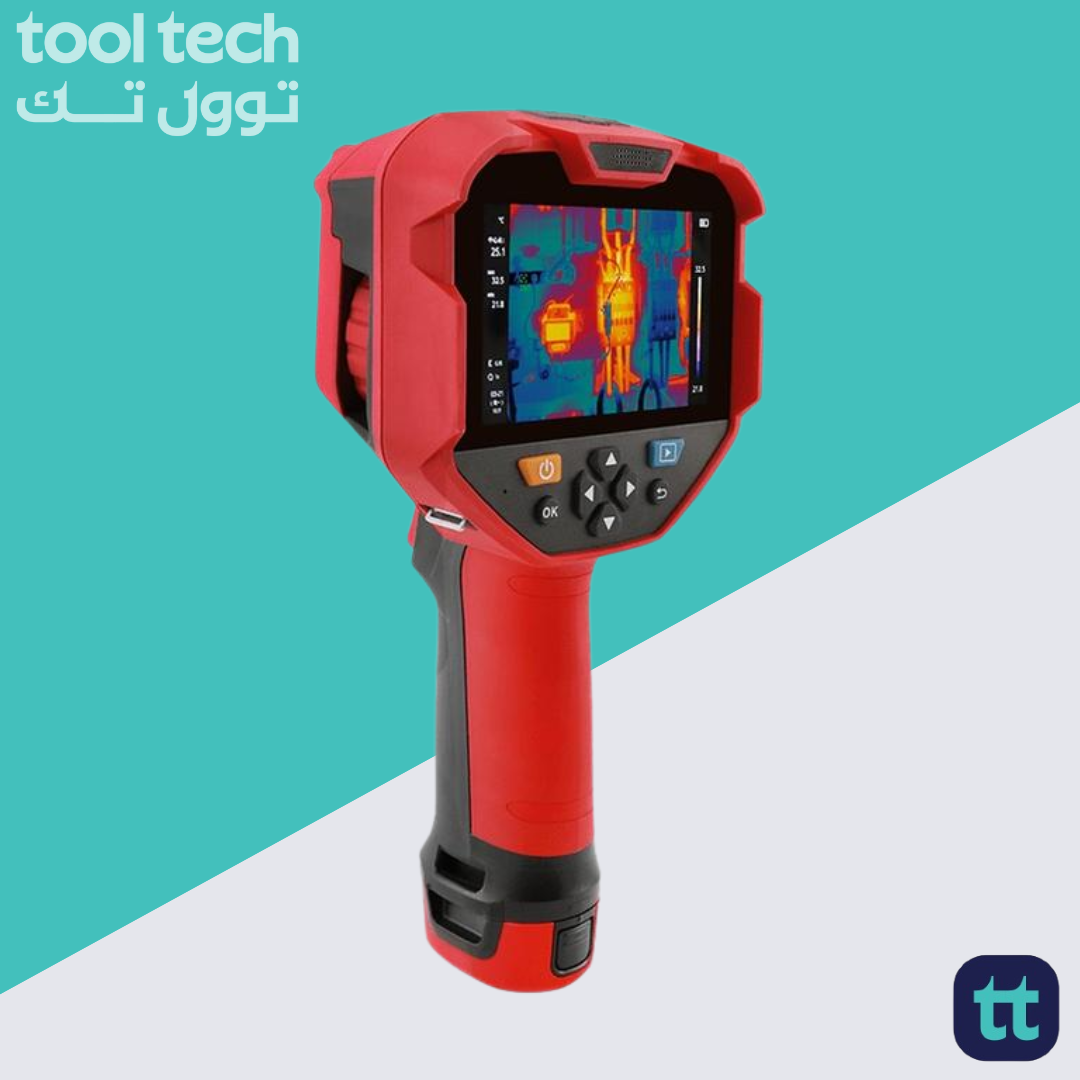

UNI-T UTi740H Thermal Imager Camera

120,000 EGP

The UNI-T UTi740H Thermal Imaging Camera is a professional-grade inspection tool built for fast, accurate fault detection. It delivers sharp thermal images with precise temperature measurement, helping you quickly identify overheating components, electrical problems, and insulation defects. Designed for industrial maintenance, electrical inspection, HVAC diagnostics, and building checks, the UTi740H combines high performance, easy operation, and reliable durability—making it the ideal choice for professionals who need speed, accuracy, and confidence on every job.

Description

The UNI-T UTi740H Thermal Imager Camera is a versatile and reliable tool designed for a variety of thermal imaging applications, making it ideal for professionals in fields such as electrical maintenance, building inspection, and HVAC. Featuring a user-friendly interface and a compact design, this thermal imager allows for easy operation and portability, enabling users to quickly identify temperature variations and potential issues. With its high-resolution display and intuitive controls, the UTi740H provides clear thermal images and accurate temperature readings, facilitating effective analysis and decision-making. Whether for routine inspections or troubleshooting, this thermal imager is a valuable addition to any toolkit.

Product parameters

– 4.3″ IPS display (800×480)
– IR resolution: 384 × 288
– surface temperature measurement from -30 ℃ to 650 ℃
– object temperature analysis: 5 points/ 1 line/ 5 rectangles/ 5 circles
– digital camera resolution: 5 MP
– focus: manual focus
– digital zoom: 2x, 4x
– image modes: Thermal, Visual image, Fusion, PIP
– automatic monitoring of the highest and lowest temperature in the image
– high/low temperature alarm icon
– adjustable high and low temperature alarms
– blending of the thermal image with the visible image
– setting the system time and date
– 7 color swatch palettes for thermal image transposition: (White, Black, Red, Ironbow, HC Rainbow, Rainbow, Lava)
– isotherm: 2 (automatic / manual)
– Wi-Fi connection via mobile application
– PC software: real-time image analysis and projection
– save images on the supplied 32GB micro SD card
– removable Li-ion battery 5200mAh / 3.7 V
– USB-C connector for charging the battery, transferring images to a PC, and projecting images
– protection: IP54
– mounting thread ¼” on the tripod
– 2m drop resistant

Technical parameters

– total infrared resolution: 384 x 288 pixels
– temperature measurement range: -30℃ to 500℃ (-22℉ to 1202℉)
– temperature measurement accuracy: -10℃ to 650℃ (whichever is greater (ambient temperature 25 °C)
– temperature measurement unit: ℃ (default), ℉, K
– field of view (FOV): 28° x 21°
– thermal sensitivity (NETD): < 60mK
– IFOV (Instantaneous Field of View): 1.3 mrad
– frame rate: ≤ 25 Hz
– measurement in the infrared spectral band: 8 μm to 14 μm
– focus mode: manual
– emissivity: 0.01~1.00 adjustable (default 0.95)
– digital zoom: 2x, 4x
– power supply: removable Li-ion battery (3.7 V/ 5200 mAh)
– operating time per charge: about 5 hours (with WIFI turned off)
– image/video storage format: BMP
– certification: CE, FCC, UKCA, ROHS
– thermal imaging sensor: uncooled vanadium oxide
– thermal imaging sensor pixel size: 17 μm
– net weight: 806 g
– product dimensions: 266 × 126 × 136 mm
– standard carton size: 400 x 185 x 345 mm
– weight of standard GW carton packaging: 4.13 kg
– standard accessories: Micro SD card, USB type C cable, manual, Li-ion battery, hand strap

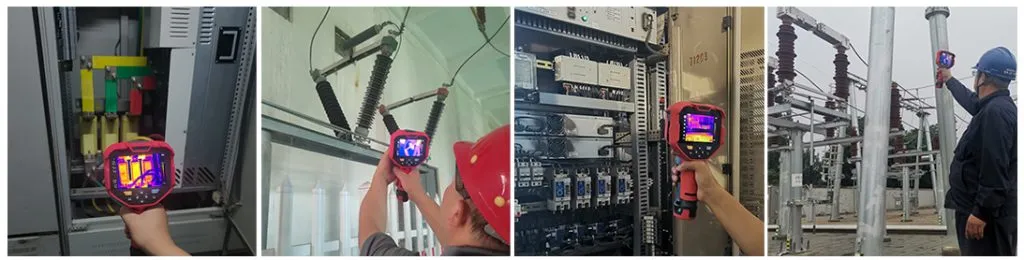

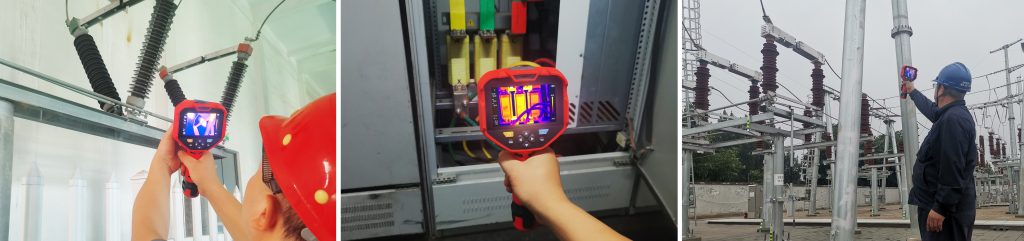

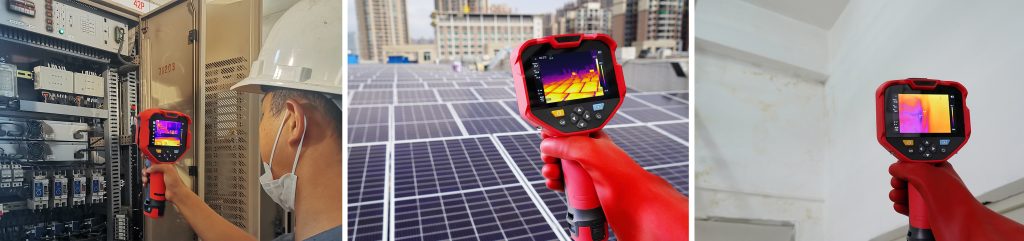

Applications

Applications of the UTi740H include PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, and building and HVAC inspection.

Useful Features

User can browse images and add text notes
The on-screen analyzer includes move, stretch, and difference functions
Color palettes include white hot, black hot, red hot, ironbow, HC rainbow, rainbow, and lava
PC software permits analysis and real-time image projection
Mobile app available with WiFi connectivity
