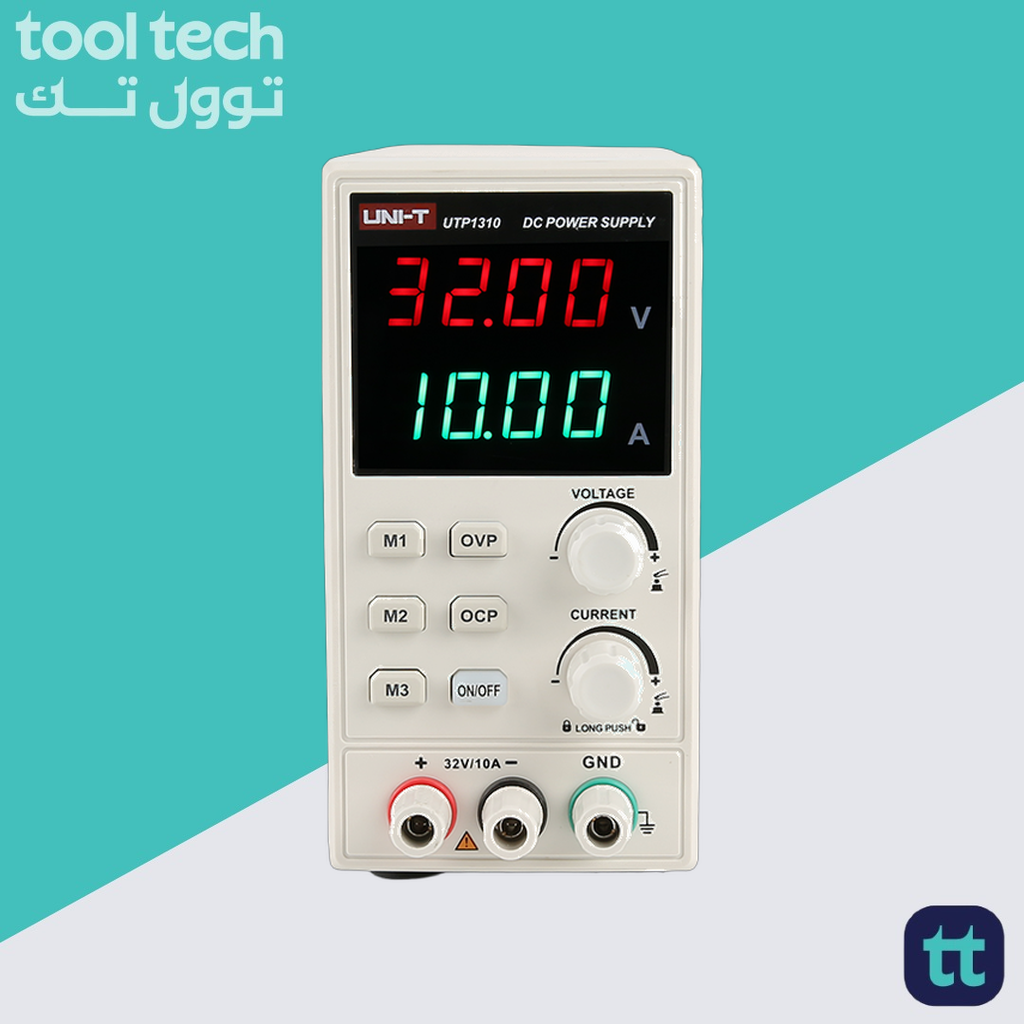

UNI-T UTP1310 Switching DC Programmable Power Supply 0~32V 0~10A
UNI-T UTP1310 high-quality economical DC power supply has 4 digits voltage and current display, settable over voltage protection (OVP) and over current protection (OCP). It is an ideal tool for school, product line, appliance maintenance center, etc. with highly stable performance.
Specifications:
- Model UTP1310
- Adjustable voltage 0-32V
- Max. output current 0-10.0A
- LED display 4 digits
Technical Parameters:
Rated Operating Conditions
- Operating voltage: AC 110V/220V ± 10% 50Hz
- Temperature range for the best accuracy: 23°C ± 5°C
Technical Specifications:
| Voltage | |
| Load regulation: | -00.1°/0+5mV |
| Line regulation: | —–,0.01°/0+5mV |
| Setting resolution: | 10mV |
| Setting accuracy: | —–c.0.1%+1 digits |
| Recall resolution: | 10mV |
| Recall accuracy: | C-0.1%+1 digits |
| Ripple: | 10mVrms |
| Current: | |
| Load regulation: | …0.2°/0-4-3mA |
| Line regulation: | C0.2%+3mA |
| Setting resolution: | 1 mA |
| Setting accuracy: | f–0.2°/0+3mA |
| Recall resolution: | 1 mA |
| Recall accuracy: | 50.2%+3 digits |
| Ripple: | 5mArms |
| OVP: | 0-32V±0.2%FS |
| Max. voltage: | 32V±0.2% |
| OCP: | 0-10.0A±0.2°/0FS |
| Max. current: | 10.0A±0.2% |
| Operating: | 0°C-40°C, —t”.-80%RH |
| Storage: | -20°C-60°C, 680°/0RH |
| Cooling mode: | Air cooling |
| Weight: | 1.9Kg |
| Size (W x H x D): | 80x150x230(mm) |
Panel Characteristics:
Front Panel
- Voltage display
- Current display
- OCP setting button: short press to turn on (backlight on)/off (backlight off) OCP function; long press to set OCP value. When the backlight is on and the actual output value is higher than the set value, OCP function will be triggered and “-ER OCP-” will appear on the screen, you can press “ON/OFF” button to clear it.
- OVP setting button: short press to turn on (backlight on)/off (backlight off) OVP function; long press to set OVP value. When the actual output value is higher than the set value, OVP function will be triggered and “-ER OVP-” will appear on the screen, you can press “ON/OFF” button to clear it.
- “M1-M3” storage/recall buttons: short press (indicator on) to recall the stored conditions of the group; long press until the indicator is on to store the conditions.
- Output on/off button
- Positive (red) output terminal
- CV (constant voltage) indicator: this indicator is on under constant voltage operation.
- Keypad lock indicator: long press the current adjustment knob to unlock/lock (indicator on) the keypads. Under the keypad lock mode, only the ON/OFF button is valid.
- CC (constant current) indicator: This indicator is on under constant current operation.
- Voltage output adjustment knob: press to enter the setting mode and the digit will flash. Turn clockwise to increase the output voltage and turn counterclockwise to decrease the output voltage. Press the knob to select different digits.
- Current adjustment knob: press to enter the setting mode and the digit will flash. Turn clockwise to increase the output current and turn counterclockwise to decrease the output current. Press the knob to select different digits; long press to lock/unlock keypads.
- Ground terminal (GND, green): This terminal is connected to the chassis and the ground wire of the power cord.
- Negative (black) output terminal
Rear Panel
Instructions and Protective Measures
- Turn the power switch to OFF and connect the power cord to the device. The L terminal of the power cord plug should be connected to the live wire of the power socket, and make sure the ground wire of the power cord has a good connection with the earth.
- UTP1310 power supply must be grounded.
- To ensure good ventilation, keep a gap of 10cm between the upside/downside/left side/right side and other objects. Do not expose this device to dusty environment or the environment of corrosive gases and other harmful substances.
- Turn the device on for 15 minutes before performing measurements
- Before powering on, confirm the power supply voltage input switch is in compliance with the mains, otherwise it will cause serious malfunction.
Package Contents:
- 1x UTP1310 Power Supply
- 1x Power Cord
- 1x User Manual
- 1x Software CD (for PC interface)
