Description

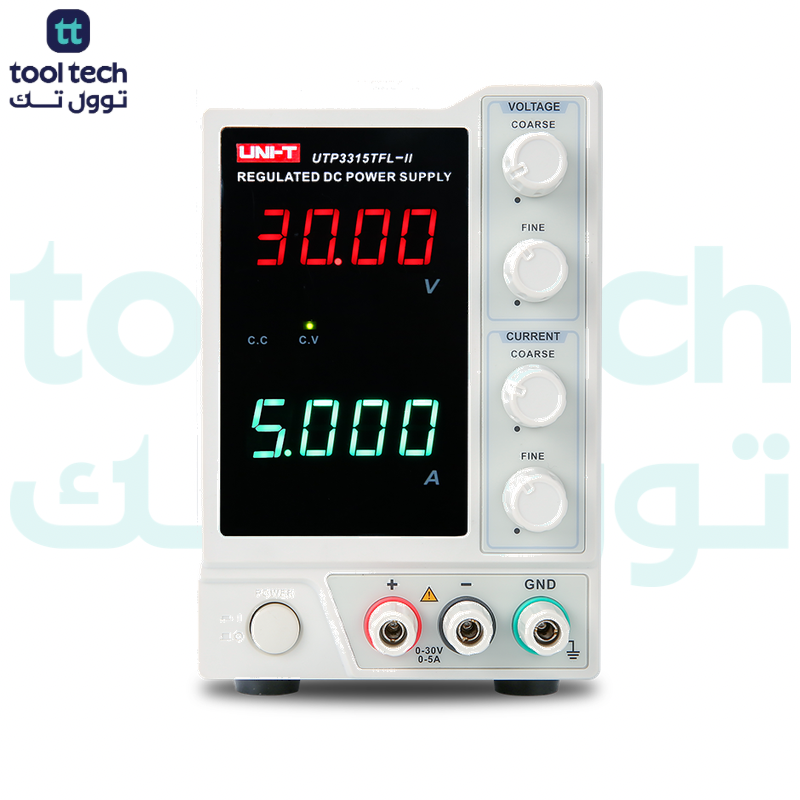

UNI-T UTP3315TFL-II DC Power Supply
The UTP3000TFL-II Series is an economical linear DC power supply with excellent quality and excellent indicators, with intuitive four-bit LED voltage, current display, short circuit overload, reverse polarity protection and other functions. High stability and high reliability.
Features:
- Lightweight and concise interface
- 1-channel linear DC power supplies feature
- High-precision 4-digit voltage and current display, 10mV/1mA.
- Low ripple/noise
- Auto conversion of constant voltage and current with current limit protection
Technical Specifications:
| Specifications | ||
| Model | UTP3315TFL-II | |
| Output voltage | 0~30V | |
| Output current | 0~5A | |
| Output power | 150W | |
| Load regulation | CV≤0.01%+5mV, CC≤0.1%+10mA | |
| Accuracy (25℃±5℃) | Voltage | ＜0.5%+20mV |
| Current | ＜0.5%+10mA | |
| Ripple and noise | ≤2mVrms | |
| Output regulation resolution | CV: 10mV (typical), CC: 1mA (typical) | |
| Reliability | MTBF(e): ≥2000hrs | |
| Display mode | LED voltage and current dual display | |
| Feature | Auto conversion of constant voltage and current with current limit protection | |
| General Characteristics | ||
| Power | Input voltage: 110V/220V±5% AC; frequency: 50Hz/60Hz | |
| Product Color | White and grey | |
| Product net weight | 4kg | |
| Product size | 105mm x 165mm x 249mm | |
| Standard accessories | Power cord, output cables | |
| Standard individual packing | Carton box, English manual | |
Applications:
- Electronics Manufacturing and Testing.
- DIY Electronics Projects.
- Educational Laboratories.
- Repair and Maintenance Services.
- Prototyping and R&D.
- Electroplating and Electrolysis.
