Name: UNI-T UT372D 2-in-1 Tachometer
SKU: UT372D
Availability: InStock

UNI-T UT372D 2-in-1 Tachometer

4,550 EGP

Dual-mode tachometer with contact and laser RPM measurement, Bluetooth data, rotatable LCD, MAX/MIN/AVG, and long battery life in a compact design.

Description

The UNI-T UT372D 2-in-1 Tachometer is a versatile and reliable instrument designed for measuring rotational speed in various applications. Featuring both contact and non-contact measurement modes, this tachometer allows users to easily switch between methods for enhanced convenience and accuracy. Its clear digital display provides real-time readings, making it suitable for both professional and DIY projects. With a compact design and user-friendly interface, the UNI-T UT372D is an essential tool for technicians, engineers, and hobbyists looking to monitor and analyze rotational speeds efficiently.

UNI-T UT372D 2-in-1 Tachometer

The UNI-T UT372D shines as a professional tachometer engineered for adaptability. With seamless switching between contact and non-contact (laser-based) modes, it allows for RPM measurements in a wide range of situations from touching rotating shafts to targeting reflective surfaces. Whether measuring motors, fans, or automotive components, its multi-mode design ensures precision in diverse work environments.

This instrument isn’t just about measurement it’s about smart measurement. It offers gathered data storage across up to 10 groups, enabling quick recall of maximum, minimum, average, and last readings. With a rotatable backlit LCD, readings stay easily legible even in poorly lit spaces. User interaction is streamlined through quick-access buttons and a responsive interface, making complex diagnostics feel intuitive.

Modern workflows demand connected tools, and the UT372D delivers. With its built-in Bluetooth support, users can transmit readings wirelessly to the UTienv (Android) or iENV (iOS) app—facilitating real-time data export and detailed charting on smartphones. Its thoughtful safety design includes auto power-off after inactivity, low battery alerts, and a durable drop-proof build. Usability blends with reliability in every measurement.

Features:

Contact and non-contact measurement modes.
Laser (optical) and contact wheel attachments.
MAX/MIN/AVG/Last reading display.
Rotatable, backlit LCD for easy readability.
Unit conversion (RPM, Hz, REV, length, surface velocity).
Bluetooth app connectivity (UTienv / iENV).
Auto power-off after ~15 minutes idle.
Data storage: up to 10 groups.

Specifications:

Specification		Range
Non-contact (optical) measurement	Rotational velocity (RPM)	1-99,999
	Frequency (HZ)	1-1,666
	Count(REV)	1-99,999
	Target distance	50~500mm
Contact measurement	Rotational velocity (RPM)	1-19,999
	Frequency (HZ)	1-333
	Surface velocity	0.1m wheel
		0.1-1,999m/min
		0.4-6,550ft/min
		4-78,700in/min
		6”wheel
		0.15-1,524m/min
		0.5-5,000ft/min
		6-60,000in/min
	Length	0-99999(m/ft/in)
Accuracy	±0.02% ±1 digit
Measurement modes	Contact RPM/Non-contact RPM/counting/frequency/Surface velocity/length
Contact measurement unit	m/min, ft/min, in/min, m, ft, in
Statistical measurement	Max/Min/Last reading/Average
Data storage	10 groups
Operating temperature/humidity	0°C~50°C; ≤80%RH
Storage temperature	-20°C~60°C; ≤80%RH
Drop test	1m
Auto power off	After about 15 minutes of inactivity
General Characteristics
Product color	Red and grey
Product weight	About 181g (without batteries)
Product size	176 × 63 x 38mm
Battery type	AAA 1.5V ×3

Applications:

Motor and fan RPM diagnostics.
Frequency and rotational speed monitoring.
Surface velocity and length measurements.
Industrial equipment calibration.
Maintenance in automotive, papermaking, plastics, chemical fiber industries.

Package Contents:

1x User Manual
1x Quick Start Guide
1x Safety Instructions
3x AAA batteries (1.5 V)

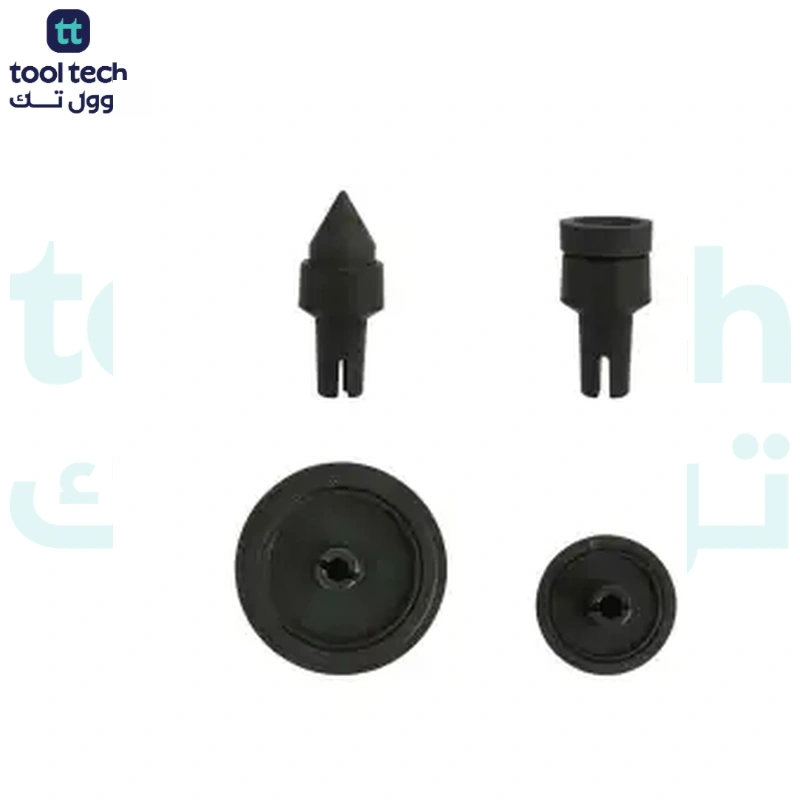

1x Shaft contact (cone)
1x Shaft contact (internal cone)
1x Contact wheel (0.1 m)
1x Contact wheel (6 in)
10x Reflecting tape
1x Cloth carrying bag
