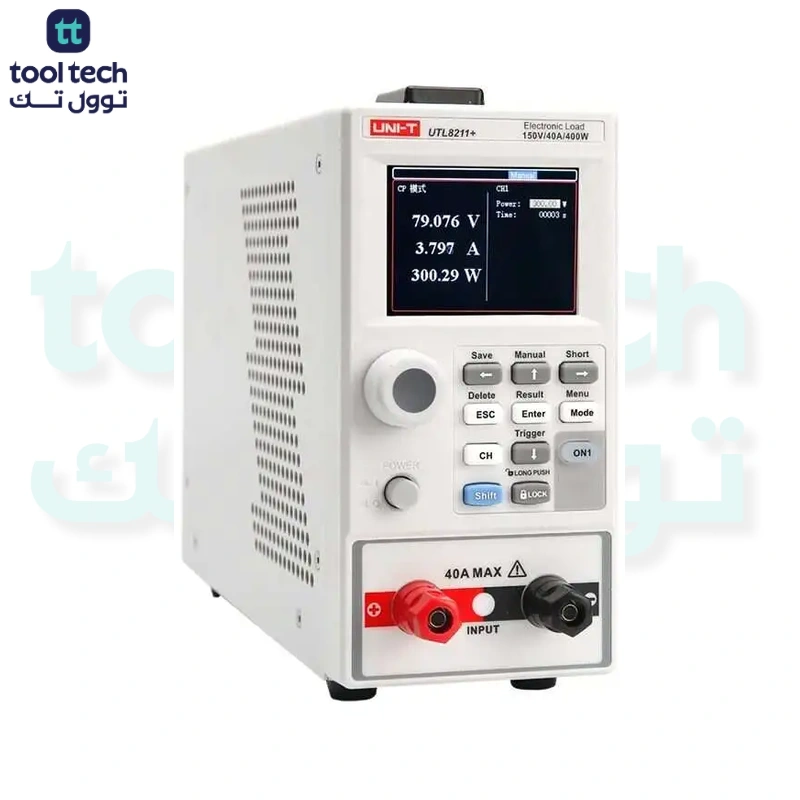

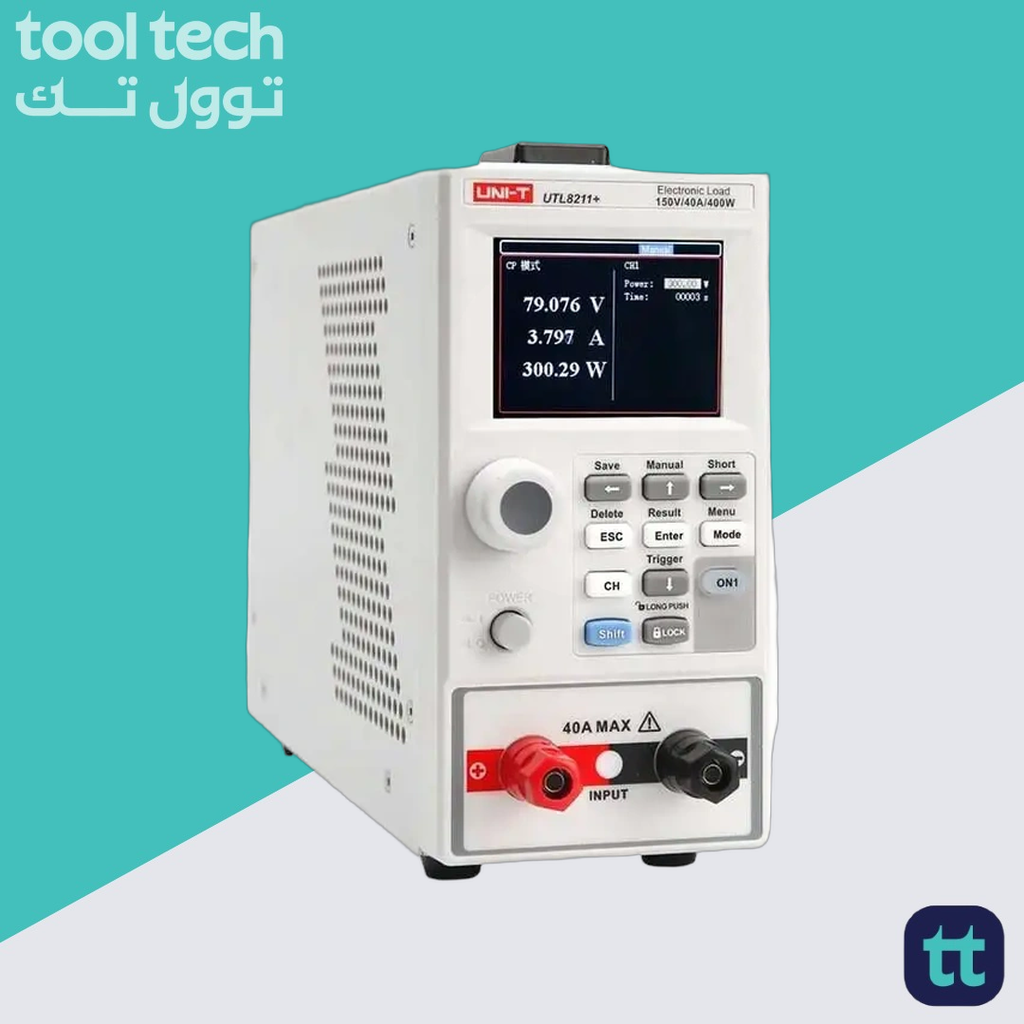

Name: UNI-T UTL8211+ DC Electronic Load Single Channel
SKU: UTL8211
Availability: InStock

UNI-T UTL8211+ DC Electronic Load Single Channel

9,999 EGP

UNI-T UTL8211+ Electronic DC Load is a compact and reliable programmable load designed for testing power supplies, batteries, and chargers. It provides accurate current control and real-time measurement, making it ideal for laboratory testing, R&D, and electronics maintenance applications.

Description

The UNI-T UTL8211+ DC Electronic Load Single Channel is a versatile and reliable tool designed for testing and evaluating power sources such as batteries, power supplies, and solar panels. This electronic load features a user-friendly interface that allows for easy operation and precise control over various testing parameters. With its single-channel design, it is ideal for applications requiring focused testing, making it suitable for both professionals and hobbyists in the electronics field. The compact and durable construction ensures longevity, while its ability to simulate different load conditions provides valuable insights into the performance and efficiency of your power devices.

Overview

UNI-T UTL8211+ DC Electronic Load Single Channel

UTL8200+ series electronic load is equipped with a 2.8-inch LCD display, which is easy to operate and stylish in appearance. Its test resolution is up to 1mV/1mA. Equipped with rich test functions and modes for you to choose. The equipment is equipped with RS232 communication module, which can flexibly meet various on-site test conditions, and is convenient for seamless connection with automated production lines and automatic test systems. The electronic load operates stably and has a wide range of applications, adapting to various testing requirements.

Features

2.8 inch 24-bit true color LCD
The maximum power 400W, the maximum current 40A, the maximum voltage 150V
8MHz synchronous current and voltage ADC sampling
Single channel 400W
Measurement resolution is up to 1mV/1mA
Four modes CC/CV/CR/CP
Dynamic current test is up to 5kHz
Rising and falling rate of programmable current
Analog short circuit analog function
Multi-mode battery discharge
List mode supports automatic test and quick unload
Overvoltage, low voltage, overcurrent, overpower, overheat protection and anti-reverse connection warning
Electrode-less servo, smart fans system
Power cutoff memory
Standard RS232 port (RS485 port optional)
Standard SCPI protocol
Matched computer software for remote control and monitor

Specifications

Model			UTL8211+
Display Screen			LCD
Rated Value 0~40℃		Input Voltage	0~150V
		Input Current	0~40A
		Input Power	400W
		Minimum of Operating Voltage	2.0V at 40A
CV (Constant Voltage) Mode		Range	0~150V
		Resolution	1mV
		Accuracy	± (0.05%+0.1%FS)
CC (Constant Current) Mode		Range	0~4A	0~40A
		Resolution	1mA	10mA
		Resolution	± (0.1%+0.1%FS)
CR (Constant Resistance) Mode		Range	0.05Ω~7.5KΩ
		Resolution	12bit
		Accuracy	± (0.3%Vin/Rset+0.2%IF.S)
CP (Constant Power) Mode		Range	400W
		Resolution	10mW
		Accuracy	± (0.1%+0.5%FS)
Dynamic Mode		T1&T2	100μS~50S/Res:100μS
		Rising/Falling slope	0.08A/mS~0.4A/μS
		Minimum of Rising Time	100us
Readback Voltage		Range	0~15V	0~150V
		Resolution	1mV	10mV
		Accuracy	± (0.1%+0.1%FS)
Readback Current		Range	0~4A	0~40A
		Resolution	1mA	10mA
		Accuracy	± (0.1%+0.1%FS)
Readback Power	Range	400W
	Resolution	10mW
	Accuracy	± (0.1%+0.5%FS)
Overpower Protection		Delay protection, immediate protection
Overcurrent Protection		Delay protection, immediate protection
Overvoltage Protection		Delay protection, immediate protection
Overtemperature Protection		≥85℃
Short Circuit		√
Ripple Display		√
Impedance of Input Terminal		300KΩ
Fuse Specification		0.5A (110V)/0.25A (220V)
Communication Interface		RS232
Protocol		SCPI
Data Acquisition Software		√
Standard Attachment		Power line
Power Requirements		110V±10%/220V±10% Frequency 50/60Hz
Size mm (LengthWidth Height)		88W174.6H230Dmm
Net Weight (kg)		3.42 KG

Applications

Power Supply Testing.
Adapter/Charger Testing.
Battery Testing.
Lithium Battery Protection Board Testing.
Automatic Test Equipment (ATE).
Component Testing.

Package Contents

1x Host
1x 3C Power Cord
2x 250V/0.5A Spare Fuses

Documents

UTL8200Datasheet-EN-1

UTL8200-Programming-Manual-1

UTL8200Users-Guide-1
